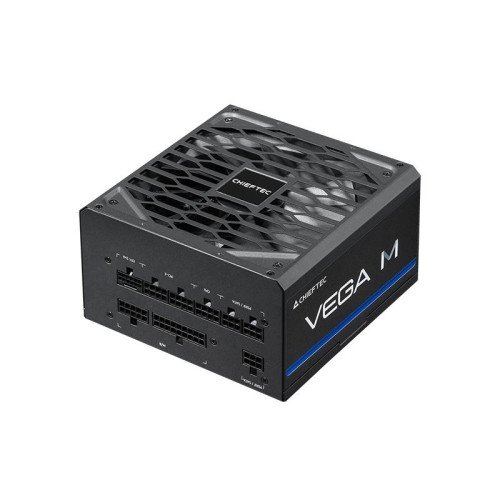

CASE PSU ATX 750W/PPG-750-C CHIEFTEC

Technical Specifications

• Summary: Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
• Vendor Homepage: www.chieftec.eu/products-detail/626/VEGA_M
• Name: CASE PSU ATX 750W/PPG-750-C CHIEFTEC
• Category Code: PSU
• Total power: 750
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 100
• Combined power (+5V): 100
• Max output current (+3.3V): 20
• Max output current (+12V1): 62.5
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 600
• Number of SATA power connectors: 6
• SATA power cable length: 400
• Peripheral (Molex) power connectors (4-pin): 3
• Peripheral (Molex) power cable length: 400
• EPS power connector (8-pin): Yes
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 4
• PCI Express power connectors (12+4 pin): 1
• PCI Express power connectors (12+4 pin) cable length: 600
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 650
• ATX Power connector (24-pin): Yes
• ATX power connector (20+4 pin): Yes
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.1
• Bearing technology: FDB
• Product colour: Black
• Cooling type: Active
• Fan diameter: 135
• Certification: 80PLUS Gold
• Width: 150
• Depth: 150
• Height: 85
• Weight: 1960
• Package weight: 2430
• Model name: ATX 750W
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.00759
• Unit Calculated Weight: 2.504
