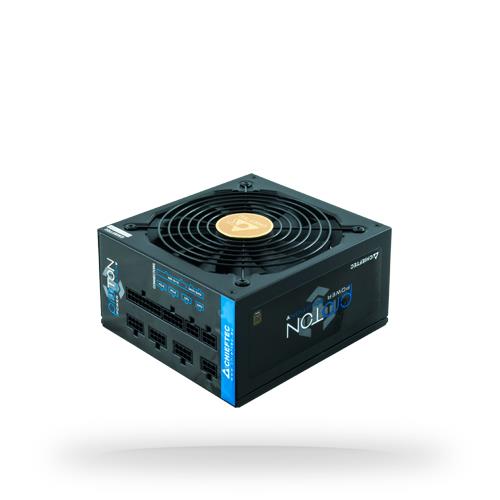

CASE PSU ATX 850W/BDF-850C CHIEFTEC

Technical Specifications

• Summary: Chieftec BDF-850C. Total power: 850 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
• Vendor Homepage: https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-850c.html
• Name: CASE PSU ATX 850W/BDF-850C CHIEFTEC
• Category Code: PSU
• Total power: 850
• AC input voltage: 115 - 230
• AC input frequency: 50 - 60
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 140
• Combined power (+5V): 140
• Max output current (+3.3V): 22
• Max output current (+12V): 70.5
• Max output current (+5V): 22
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Efficiency: 85
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 9
• Peripheral (Molex) power connectors (4-pin): 3
• PCI Express power connectors (6+2 pin): 4
• CPU power connector (4+4 pin): Yes
• Floppy disk drive connector: Yes
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Bronze
• Purpose: PC
• Power supply unit (PSU) form factor: PS/2
• ATX version: 2.3
• Product colour: Black
• Cooling type: Active
• Fan diameter: 140
• Number of fans: 1
• Fan location: Top
• On/off switch: Yes
• Width: 150
• Depth: 140
• Height: 87
• Manual: Yes
• Package type: Box
• Harmonized System (HS) code: 84733020
• Warranty card: Yes
• Model name: BDF-850C
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00693
• Unit Calculated Weight: 2.77
