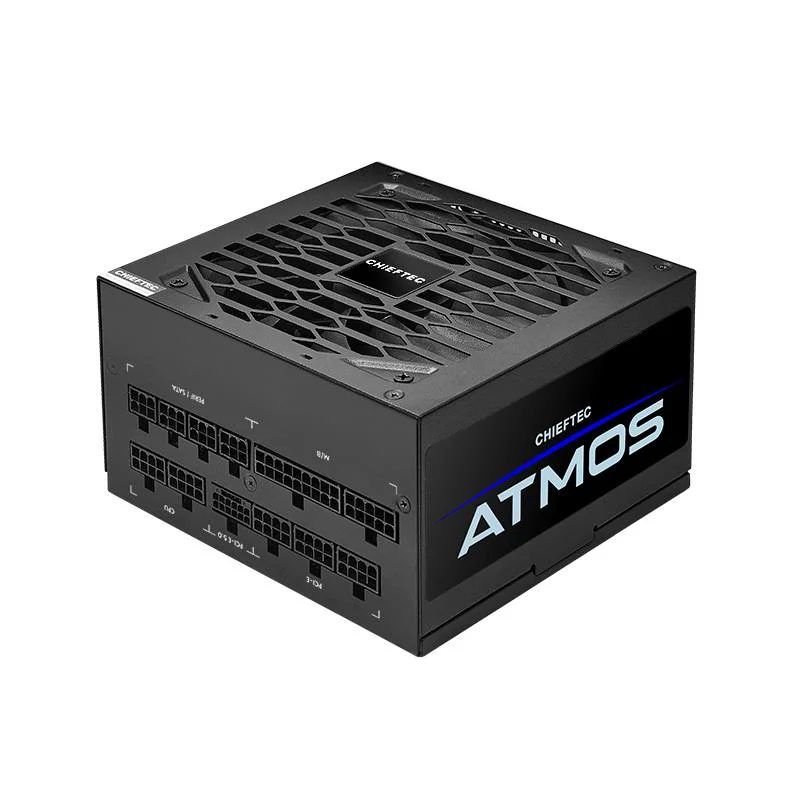

CASE PSU ATX 850W/CPX-850FC CHIEFTEC

CASE PSU ATX 850W/CPX-850FC CHIEFTEC
Нема на залиха
CASE PSU ATX 850W/CPX-850FC CHIEFTEC
  • Total power: 850
  • 80 PLUS certification: 80 PLUS Gold
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
    • Врз основа на 0 коментари. - Напиши коментар
    9,299ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 404097
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Atmos . Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,750,650 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    • Vendor Homepage: https://www.chieftec.eu/products-detail/562/ATMOS_Series/564/CPX-850FC
    • Name: CASE PSU ATX 850W/CPX-850FC CHIEFTEC
    • Category Code: PSU
    • Total power: 850
    • AC input voltage: 100 - 240
    • AC input frequency: 50/60
    • Input current: 10-5
    • Maximum input current (@110V): 10
    • Maximum input current (@220V): 5
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+5Vsb): 15
    • Max output current (+3.3V): 20
    • Max output current (+12V1): 70.8
    • Max output current (+5V): 20
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 3
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 600
    • Number of SATA power connectors: 9
    • SATA power cable length: 550/650/750
    • Peripheral (Molex) power cable length: 550/650/750/850
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (16-pin): 1
    • CPU power cable length: 600
    • ATX power connector (20+4 pin): Yes

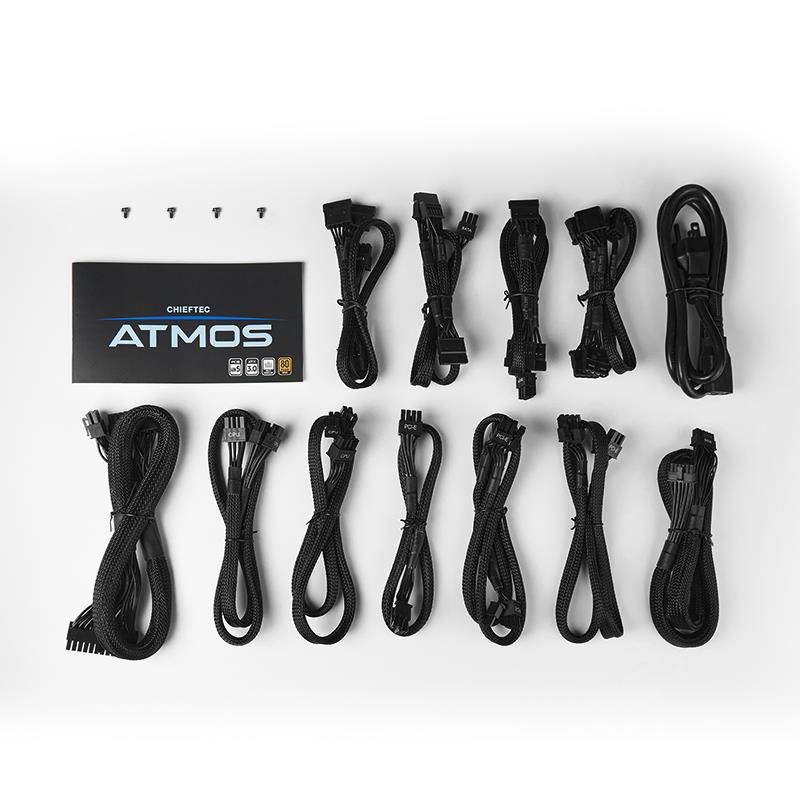

    • Cabling type: Fully-Modular
    • 80 PLUS certification: 80 PLUS Gold
    • Supported motherboard form factors: ATX
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 3.0
    • Product colour: Black
    • Fan diameter: 120
    • On/off switch: Yes
    • Width: 150
    • Depth: 140
    • Height: 86
    • Weight: 1520
    • Model name: CPX-850FC
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.00858
    • Unit Calculated Weight: 2.5
    Specs
    80 PLUS certification 80 PLUS Gold
    AC input frequency 50/60
    AC input voltage 100 - 240
    ATX power connector (20+4 pin) Yes
    ATX version 3.0
    Cabling type Fully-Modular
    Category Code PSU
    Combined power (+5Vsb) 15
    CPU power cable length 600
    Depth 140
    Description

    The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports
    PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional
    performance up to 850W. The ATMOS series features a state-of-the-art technical
    design including an SRC Full-bridge converter with DC-to-DC technology, and
    Japanese capacitors to ensure longevity and stability.

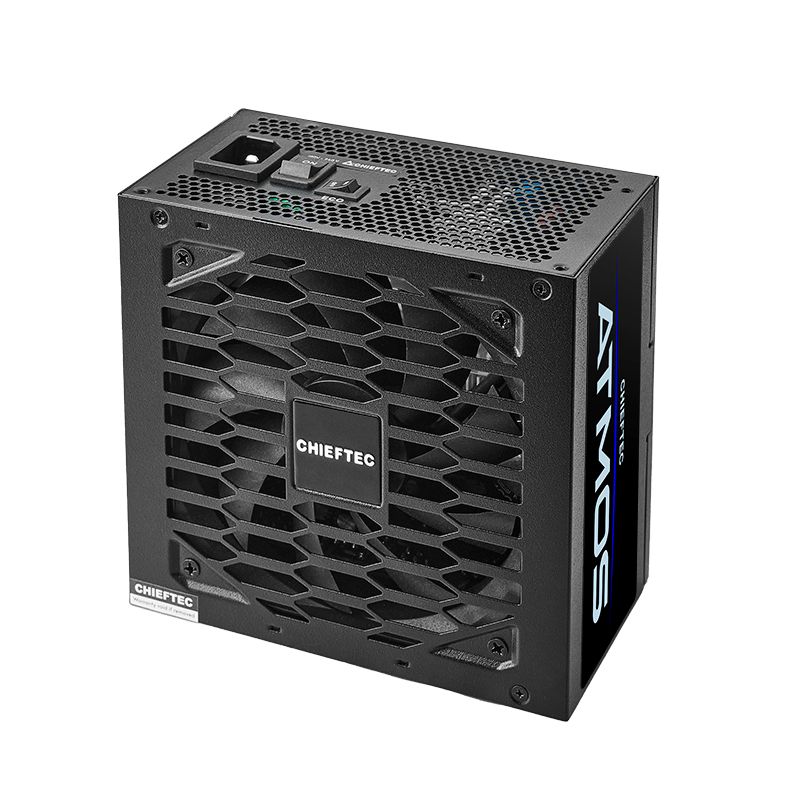

    The ATMOS 120mm FDB silent fan optimizes the balance between cooling
    and noise with excellent durability, while the ECO fan mode enables fanless
    operations at low loads. CHIEFTEC’s multiple security protection technology is
    designed to keep your system safe.

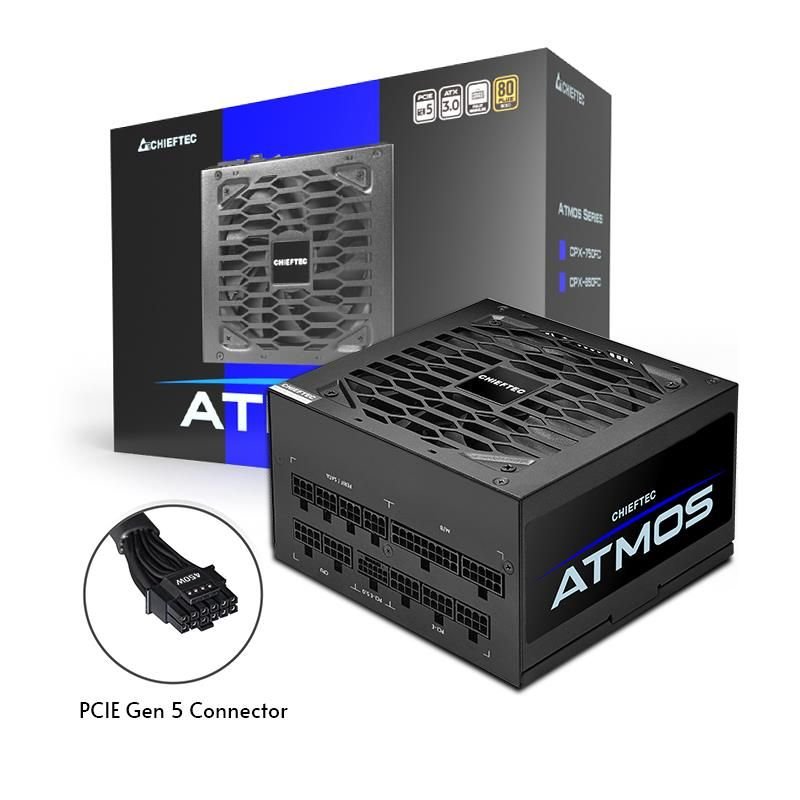

    • Support PCIe GEN5

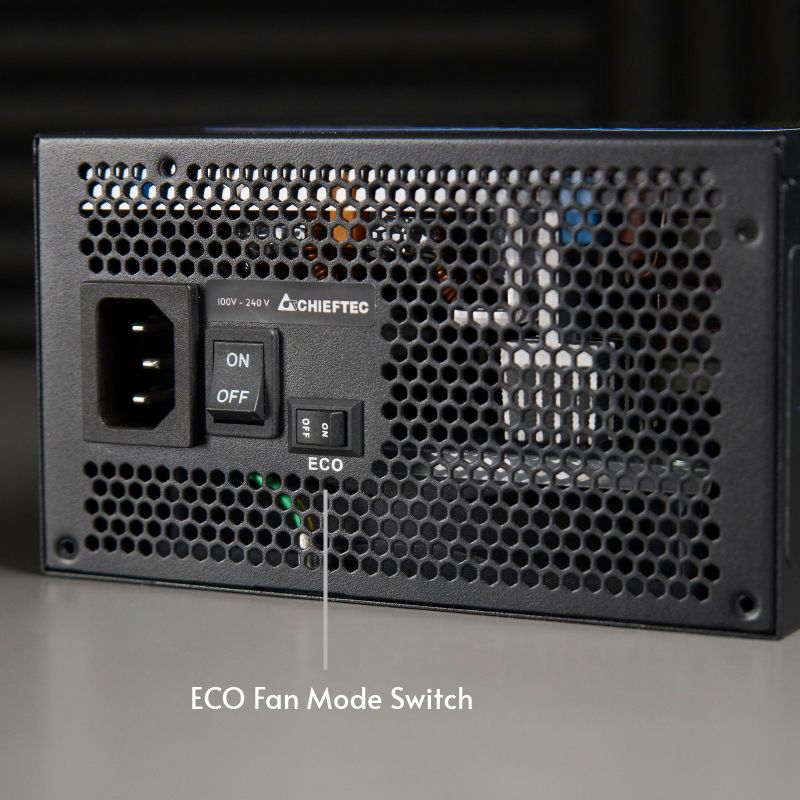

    • ECO Fan : Smart Fan Control
    • Japanese Capacitors
    • SRC Full-Bridge converter with DC to DC technology
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Height 86
    Input current 10-5
    Max output current (+12V1) 70.8
    Max output current (+3.3V) 20
    Max output current (+5V) 20
    Max output current (+5Vsb) 3
    Max output current (-12V) 0.3
    Maximum input current (@110V) 10
    Maximum input current (@220V) 5
    Model name CPX-850FC
    Motherboard power cable length 600
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 850W/CPX-850FC CHIEFTEC
    Number of SATA power connectors 9
    On/off switch Yes
    PCI Express power connectors (16-pin) 1
    Peripheral (Molex) power cable length 550/650/750/850
    PictureUrl https://static.elko.cloud/ProductImages/7c8c5e3b-683a-45c8-99eb-baea63dde19a.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC/Server
    SATA power cable length 550/650/750
    Summary Chieftec Atmos . Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,750,650 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    Supported motherboard form factors ATX
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/7c8c5e3b-683a-45c8-99eb-baea63dde19a.Jpeg
    Total power 850
    Unit Calculated Volume 0.00858
    Unit Calculated Weight 2.5
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/562/ATMOS_Series/564/CPX-850FC
    Weight 1520
    Width 150
