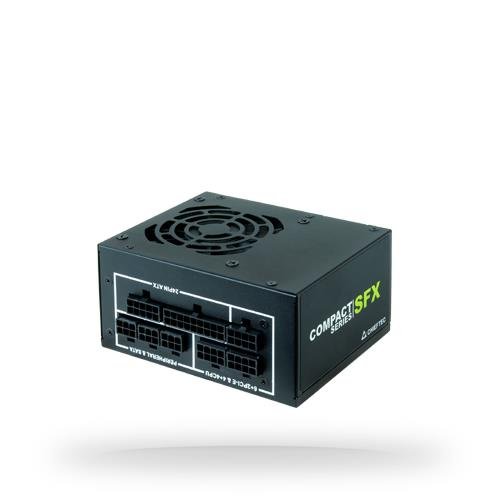

CASE PSU SFX 650W/CSN-650C CHIEFTEC

Technical Specifications

• Summary: Chieftec CSN-650C. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS
• Name: CASE PSU SFX 650W/CSN-650C CHIEFTEC
• Category Code: PSU
• Total power: 650
• AC input voltage: 100 - 240
• AC input frequency: 47 - 63
• Input current: 6
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 90
• Combined power (+5V): 90
• Max output current (+3.3V): 18
• Max output current (+12V1): 54
• Max output current (+5V): 15
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 3
• Efficiency: 90
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 6
• Peripheral (Molex) power connectors (4-pin): 3
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• Floppy drive power connector: 1
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: SFX
• ATX version: 2.3
• Product colour: Black
• Fan diameter: 80
• Number of fans: 1
• Compliance certificates: RoHS
• Width: 125
• Depth: 100
• Height: 64
• Harmonized System (HS) code: 84733020
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00432
• Unit Calculated Weight: 1.9
