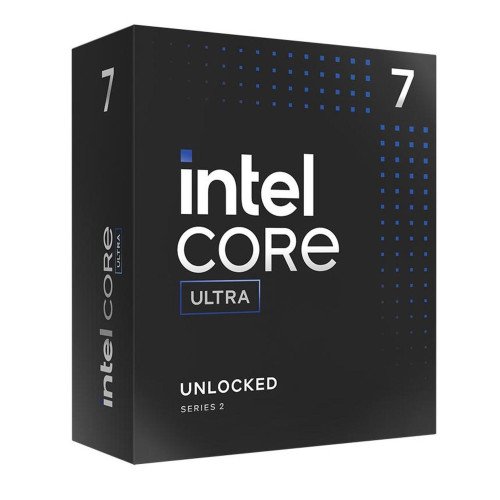

Intel Core Ultra U7-265K

Technical Specifications

• Summary: Intel Core Ultra 7 265K. Processor family: Intel Core Ultra 7, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 33 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
• Vendor Homepage: https://ark.intel.com/content/www/us/en/ark/products/241063/intel-core-ultra-7-processor-265k-30m-cache-up-to-5-50-ghz.html
• Name: CPU CORE U7-265K S1851 BOX/3.9G BX80768265K S RQCW IN
• Category Code: CPU
• Processor manufacturer: Intel
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 265K
• Processor family: Intel Core Ultra 7
• Processor cores: 20
• Processor socket: LGA 1851 (Socket V1)
• Processor threads: 20
• Processor operating modes: 64-bit
• Performance cores: 8
• Efficient cores: 12
• Processor boost frequency: 5.5
• Performance-core boost frequency: 5.4
• Performance-core base frequency: 3.9
• Efficient-core boost frequency: 4.6
• Efficient-core base frequency: 3.3
• Processor cache: 30
• Processor cache type: Smart Cache
• Package type: Box
• Maximum turbo power: 250
• Processor base power: 125
• AI software frameworks supported by CPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Stepping: B0
• Maximum number of DMI lanes: 8
• Processor codename: Arrow Lake
• Processor ARK ID: 241063
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 33
• NPU performance up to: 13
• GPU performance up to: 8
• Maximum internal memory supported by processor: 192
• Memory types supported by processor: DDR5-SDRAM
• Memory clock speeds supported by processor: 6400
• Memory channels: Dual-channel
• ECC: Yes
• On-board graphics card: Yes
• On-board graphics card model: Intel Graphics
• On-board graphics card outputs supported: DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
• On-board graphics card base frequency: 300
• On-board graphics card dynamic frequency (max): 2000
• Number of displays supported (on-board graphics): 4
• On-board graphics card DirectX version: 12.0
• On-board graphics card OpenGL version: 4.5
• On-board graphics card refresh rate at maximum resolution (DisplayPort): 60
• On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60
• On-board graphics card refresh rate at maximum resolution (HDMI): 60
• On-board graphics card ID: 0x7D67
• Xe-cores: 4
• Execute Disable Bit: Yes
• Idle States: Yes
• Thermal Monitoring Technologies: Yes
• Market segment: Desktop
• Use conditions: PC/Client/Tablet/Workstation
• Maximum number of PCI Express lanes: 24
• PCI Express slots version: 4.0/5.0
• Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
• Direct Media Interface (DMI) Revision: 4.0
• Scalability: 1S
• Thermal solution specification: PCG 2020A
• Export Control Classification Number (ECCN): 5A992C
• Commodity Classification Automated Tracking System (CCATS): 740.17B1
• Enhanced Intel SpeedStep Technology: Yes
• Intel Trusted Execution Technology: Yes
• Intel AES New Instructions (Intel AES-NI): Yes
• Intel Quick Sync Video Technology: Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology: 2.0
• Intel Turbo Boost Max Technology 3.0 frequency: 5.5
• Intel Thunderbolt 4: Yes
• Intel Control-flow Enforcement Technology (CET): Yes
• Intel Thread Director: Yes
• Intel 64: Yes
• Intel Turbo Boost Max Technology 3.0: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Directed I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel Active Management Technology (Intel AMT): Yes
• Intel Boot Guard: Yes
• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
• Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
• Intel One-Click Recovery: Yes
• Intel OS Guard: Yes
• Intel Remote Platform Erase (RPE): Yes
• Intel Secure Key: Yes
• Intel Stable IT Platform Program (SIPP): Yes
• Intel Standard Manageability (ISM): Yes
• Intel Virtualization Technology with Redirect Protection (VT-rp): Yes
• Intel Volume Management Device (VMD): Yes
• Mode-based Execute Control (MBE): Yes
• Intel vPro Enterprise Platform Eligibility: Yes
• Intel Hardware Shield Eligibility: Yes
• Intel Threat Detection Technology (TDT): Yes
• Intel Total Memory Encryption - Multi Key: Yes
• Maximum operating temperature: 105
• OpenCL version: 3.0
• Launch date: Q424
• Memory speed (max): 6400
• Status: Launched
• Harmonized System (HS) code: 8542310050
• Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
• L2 cache: 36864
• Maximum internal memory: 192
• CPU Family name: Intel Core Ultra
• Model number: U7-265K
• Units per Shipping Box: 5
• Unit Calculated Volume: 0.0006912
• Unit Calculated Weight: 0.104
