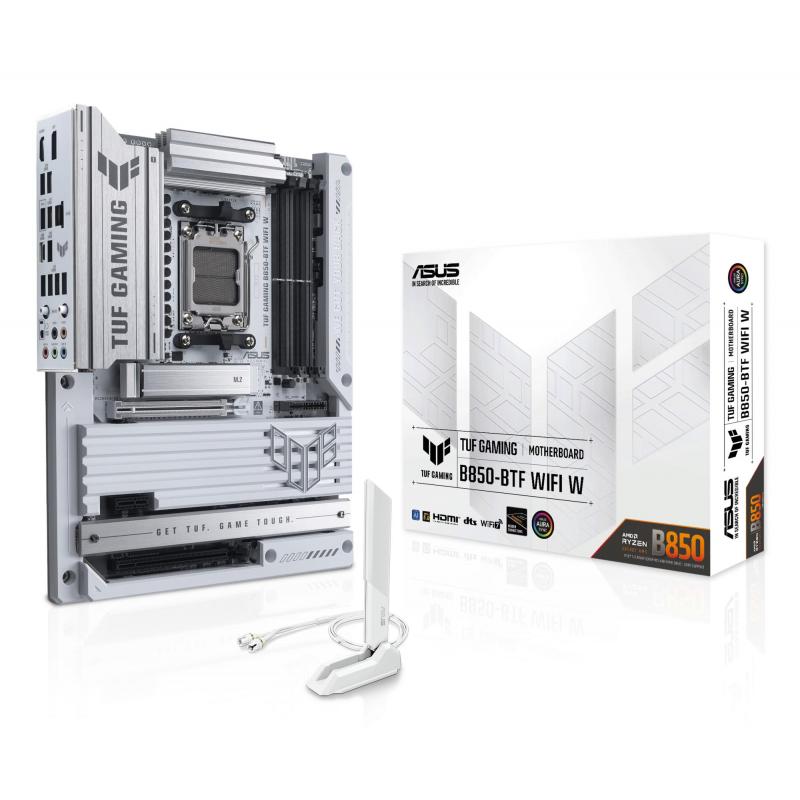

GAMING B850-BTF WIFI W

GAMING B850-BTF WIFI W
Нема на залиха
GAMING B850-BTF WIFI W
  • Motherboard chipset: AMD B850
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 7
    • Врз основа на 0 коментари. - Напиши коментар
    17,314ден.
    • Достапност: Нема на залиха
    • Бренд: ASUS
    • Шифра: 445039
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS TUF GAMING B850-BTF WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-btf-wifi-w/
    • Name: MB AMD B850 SAM5 ATX/GAMING B850-BTF WIFI W ASUS
    • Category Code: MBA
    • Model: GAMING B850-BTF WIFI W
    • Motherboard chipset: AMD B850
    • Audio chip: Realtek ALC1220P
    • Product colour: White
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Cooling type: Passive
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speed (max): 8000
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 7
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 1
    • Number of chassis fan connectors: 4
    • Chassis intrusion connector: Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of COM connectors: 1
    • Number of water pump connectors: 1
    • Thunderbolt headers: 1
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 3
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
    • USB 3.2 Gen 2x2 Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • HDMI ports quantity: 1
    • DisplayPorts quantity: 1
    • Line-in: Yes
    • Microphone in: Yes
    • WiFi-AP antenna jack: 2
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x1 (Gen 4.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 3
    • 1st M.2 largest key size: 22110
    • 1st M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • Package width: 353
    • Package depth: 273
    • Package height: 68
    • Package weight: 2040
    • Width: 305
    • Depth: 244
    • Height: 57
    • Antenna included: Yes
    • Weight: 1440
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.005887
    • Unit Calculated Weight: 2
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 4.0
    1st M.2 largest key size 22110
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC1220P
    Audio output channels 7.1
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Category Code MBA
    Chassis intrusion connector Yes
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    Cooling type Passive
    CPU fan connector Yes
    Depth 244
    Description

    TUF GAMING B850-BTF WIFI W
    TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
    DisplayPorts quantity 1
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDMI ports quantity 1
    Height 57
    Line-in Yes
    Maximum internal memory 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model GAMING B850-BTF WIFI W
    Motherboard chipset AMD B850
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD B850 SAM5 ATX/GAMING B850-BTF WIFI W ASUS
    Number of chassis fan connectors 4
    Number of COM connectors 1
    Number of CPU fan connectors 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 3
    Number of memory slots 4
    Number of RGB LED pin headers 3
    Number of SATA III connectors 4
    Number of storage drives supported 7
    Number of water pump connectors 1
    Package depth 273
    Package height 68
    Package weight 2040
    Package width 353
    Parallel processing technology support Not supported
    PCI Express x1 (Gen 4.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/b356ad55-21ae-40b7-86d0-ad2ac28f3491.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour White
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    Summary ASUS TUF GAMING B850-BTF WIFI W. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    Supported memory clock speed (max) 8000
    Supported memory types DDR5-SDRAM
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/b356ad55-21ae-40b7-86d0-ad2ac28f3491.Jpeg
    Thunderbolt headers 1
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.005887
    Unit Calculated Weight 2
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 3
    USB 3.2 Gen 2x2 Type-C ports quantity 1
    Vendor Homepage https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b850-btf-wifi-w/
    Weight 1440
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 2
    Windows operating systems supported Windows 11
