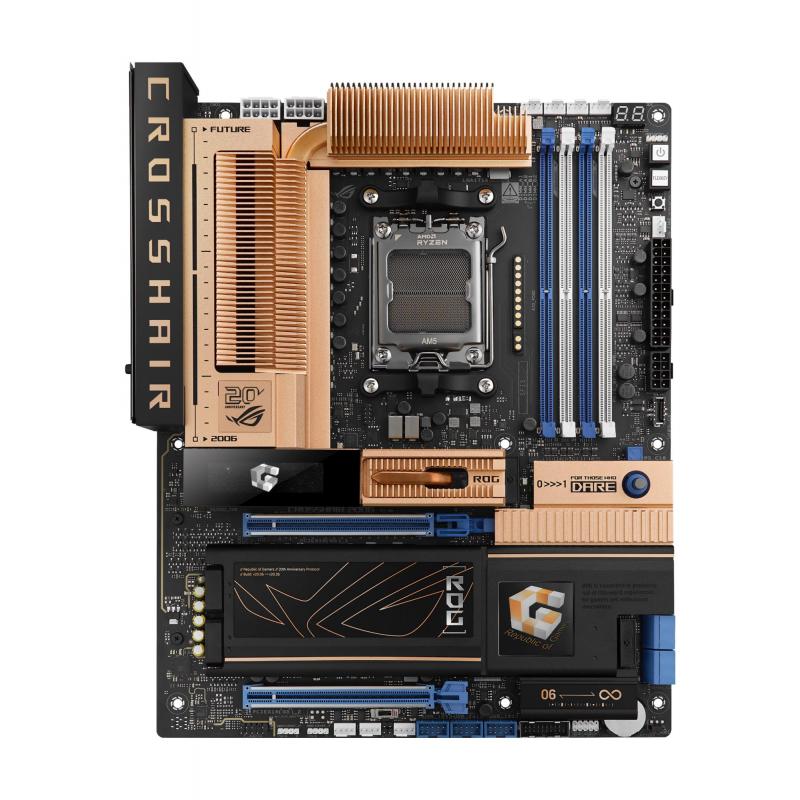

MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS

MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS
MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS
  • Motherboard chipset: AMD X870E
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 9
    • Врз основа на 0 коментари. - Напиши коментар
    48,409ден.
    • Достапност: Има залиха
    • Бренд: ASUS
    • Шифра: 463469
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS ROG CROSSHAIR 2006. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-2006/
    • Name: MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS
    • Category Code: MBA
    • Motherboard chipset: AMD X870E
    • Audio chip: Realtek ALC4082
    • Product colour: Black/Gold
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 9
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 3
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • USB 3.2 Gen 2x2 connectors: 2
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 4
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • Number of temperature sensor headers: 1
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 3
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
    • USB4 Gen 3x2 ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 2
    • HDMI ports quantity: 1
    • S/PDIF out port: Yes
    • WiFi-AP antenna jack: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 10 Gigabit Ethernet/5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • WLAN controller model: MediaTek MT7927
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x1 (Gen 3.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 5.x) slots: 2
    • Number of M.2 (M) slots: 5
    • 1st M.2 largest key size: 22110
    • 1st M.2 highest PCI Express generation: 5.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 5.0
    • 3rd M.2 largest key size: 2280
    • 3rd M.2 highest PCI Express generation: 4.0
    • 4th M.2 largest key size: 2280
    • 4th M.2 highest PCI Express generation: 4.0
    • 5th M.2 largest key size: 2230
    • 5th M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 512
    • Package width: 370
    • Package depth: 312
    • Package height: 108
    • Package weight: 5572
    • Width: 305
    • Depth: 244
    • Height: 50
    • Antenna included: Yes
    • Cables included: SATA
    • Screws included: Yes
    • Weight: 2506
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01952
    • Unit Calculated Weight: 5.2
    Specifications
    ECC сompatibility ECC & Non-ECC
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 5.0
    1st M.2 largest key size 22110
    2nd M.2 highest PCI Express generation 5.0
    2nd M.2 largest key size 2280
    3rd M.2 highest PCI Express generation 4.0
    3rd M.2 largest key size 2280
    4th M.2 highest PCI Express generation 4.0
    4th M.2 largest key size 2280
    5th M.2 highest PCI Express generation 4.0
    5th M.2 largest key size 2230
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC4082
    Audio output channels 7.1
    BIOS memory size 512
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Cables included SATA
    Category Code MBA
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    ROG Crosshair 2006
    The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.

    Personalization
    The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.

    *Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
    EPS power connector (8-pin) Yes
    Ethernet interface type 10 Gigabit Ethernet/5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 2
    Front panel audio connector Yes
    Front panel connector Yes
    HDMI ports quantity 1
    Height 50
    Maximum internal memory 256
    Memory channels Dual-channel
    Memory slots type DIMM
    Motherboard chipset AMD X870E
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS
    Number of chassis fan connectors 4
    Number of HDDs supported 4
    Number of M.2 (M) slots 5
    Number of memory slots 4
    Number of RGB LED pin headers 3
    Number of SATA III connectors 4
    Number of storage drives supported 9
    Number of temperature sensor headers 1
    Package depth 312
    Package height 108
    Package weight 5572
    Package width 370
    Parallel processing technology support Not supported
    PCI Express x1 (Gen 3.x) slots 1
    PCI Express x16 (Gen 4.x) slots 2
    PCI Express x16 (Gen 5.x) slots 2
    PictureUrl https://static.elko.cloud/ProductImages/af59aa66-3d2a-41f2-b524-06bd26ab21b8.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Black/Gold
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out port Yes
    Screws included Yes
    Summary ASUS ROG CROSSHAIR 2006. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/af59aa66-3d2a-41f2-b524-06bd26ab21b8.Jpeg
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.01952
    Unit Calculated Weight 5.2
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 3
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3
    USB 3.2 Gen 2x2 connectors 2
    USB4 Gen 3x2 ports quantity 2
    Vendor Homepage https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-2006/
    Weight 2506
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 1
    Windows operating systems supported Windows 11
    WLAN controller model MediaTek MT7927
