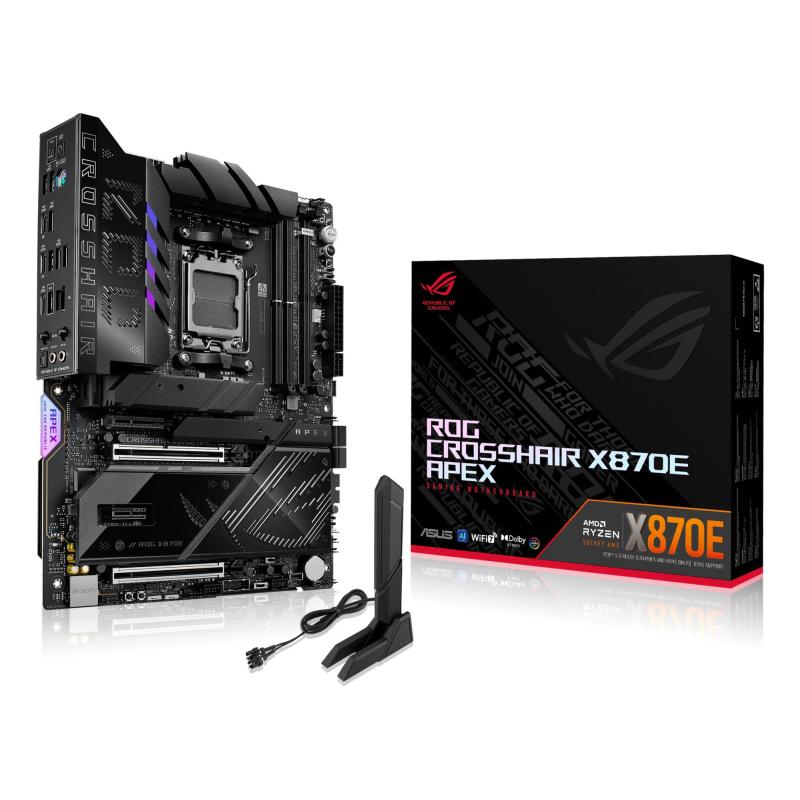

ROG CROSSHAIR X870E APEX

ROG CROSSHAIR X870E APEX
ROG CROSSHAIR X870E APEX
  • Motherboard chipset: AMD X870E
  • Motherboard form factor: ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Number of storage drives supported: 9
    • Врз основа на 0 коментари. - Напиши коментар
    47,699ден.
    • Достапност: Има залиха
    • Бренд: ASUS
    • Шифра: 441551
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ASUS ROG CROSSHAIR X870E APEX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    • Vendor Homepage: https://www.asus.com/
    • Name: MB AMD X870E SAM5 ATX/ROG CROSSHAIR X870E APEX ASUS
    • Category Code: MBA
    • Model: ROG CROSSHAIR X870E APEX
    • Motherboard chipset: AMD X870E
    • Product colour: Black
    • Component for: PC
    • Motherboard form factor: ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 11
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 2
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Maximum internal memory: 128
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 9
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • USB 3.2 Gen 2x2 connectors: 2
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of chassis fan connectors: 2
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 3
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
    • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
    • USB4 Gen 3x2 ports quantity: 2
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • S/PDIF out port: Yes
    • WiFi-AP antenna jack: 1
    • Ethernet LAN: Yes
    • Ethernet interface type: 5 Gigabit Ethernet
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 7 (802.11be)
    • Wi-Fi standards: Wi-Fi 7 (802.11be)
    • Bluetooth: Yes
    • Bluetooth version: 5.4
    • PCI Express x1 (Gen 3.x) slots: 1
    • PCI Express x4 (Gen 4.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 2
    • PCI Express x16 (Gen 5.x) slots: 2
    • Number of M.2 (M) slots: 5
    • 1st M.2 largest key size: 2280
    • 1st M.2 highest PCI Express generation: 5.0
    • 2nd M.2 largest key size: 2280
    • 2nd M.2 highest PCI Express generation: 5.0
    • 3rd M.2 largest key size: 2280
    • 3rd M.2 highest PCI Express generation: 5.0
    • 4th M.2 largest key size: 22110
    • 4th M.2 highest PCI Express generation: 4.0
    • 5th M.2 largest key size: 22110
    • 5th M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 512
    • Package width: 370
    • Package depth: 312
    • Package height: 108
    • Package weight: 4156
    • Width: 305
    • Depth: 244
    • Antenna included: Yes
    • Cables included: SATA
    • Screws included: Yes
    • Drivers included: Yes
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.013764
    • Unit Calculated Weight: 3.9
    Specs
    12V power connector Yes
    1st M.2 highest PCI Express generation 5.0
    1st M.2 largest key size 2280
    2nd M.2 highest PCI Express generation 5.0
    2nd M.2 largest key size 2280
    3rd M.2 highest PCI Express generation 5.0
    3rd M.2 largest key size 2280
    4th M.2 highest PCI Express generation 4.0
    4th M.2 largest key size 22110
    5th M.2 highest PCI Express generation 4.0
    5th M.2 largest key size 22110
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    BIOS memory size 512
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.4
    Cables included SATA
    Category Code MBA
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    CPU fan connector Yes
    Depth 244
    Description

    AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, ROG Memory Fan Kit for DDR5 overclocking, Wi-Fi 7 with ASUS WiFi Q-Antenna, three PCIe® 5.0 M.2 slots onboard, two PCIe 4.0 slots on an ROG DIMM.2 card, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4® ports, two USB 20Gbps Type-C® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, and AI Networking II

    Drivers included Yes
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    Maximum internal memory 128
    Memory channels Dual-channel
    Memory slots type DIMM
    Model ROG CROSSHAIR X870E APEX
    Motherboard chipset AMD X870E
    Motherboard chipset family AMD
    Motherboard form factor ATX
    Name MB AMD X870E SAM5 ATX/ROG CROSSHAIR X870E APEX ASUS
    Number of chassis fan connectors 2
    Number of HDDs supported 4
    Number of M.2 (M) slots 5
    Number of memory slots 2
    Number of RGB LED pin headers 3
    Number of SATA III connectors 4
    Number of storage drives supported 9
    Package depth 312
    Package height 108
    Package weight 4156
    Package width 370
    Parallel processing technology support Not supported
    PCI Express x1 (Gen 3.x) slots 1
    PCI Express x16 (Gen 4.x) slots 2
    PCI Express x16 (Gen 5.x) slots 2
    PCI Express x4 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/888b1800-45a7-46a9-8b69-544561c7226a.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Black
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    S/PDIF out port Yes
    Screws included Yes
    Summary ASUS ROG CROSSHAIR X870E APEX. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/888b1800-45a7-46a9-8b69-544561c7226a.Jpeg
    Top Wi-Fi standard Wi-Fi 7 (802.11be)
    Unbuffered memory Yes
    Unit Calculated Volume 0.013764
    Unit Calculated Weight 3.9
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
    USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
    USB 3.2 Gen 2x2 connectors 2
    USB4 Gen 3x2 ports quantity 2
    Vendor Homepage https://www.asus.com/
    Wi-Fi Yes
    Wi-Fi standards Wi-Fi 7 (802.11be)
    Width 305
    WiFi-AP antenna jack 1
    Windows operating systems supported Windows 11
