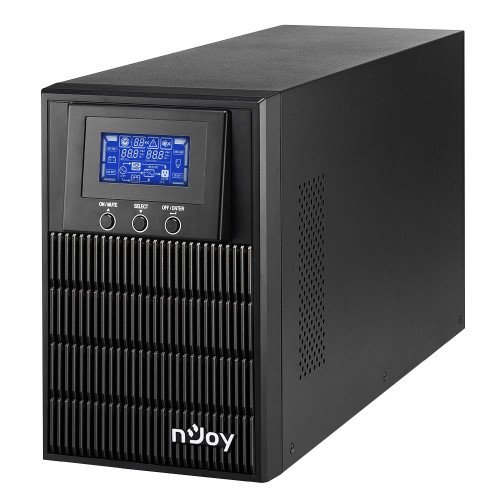

UPS TOWER ATEN PRO 1000 1KVA/PWUP-OL100AP-AZ01B NJOY

Technical Specifications

• Summary: nJoy Aten PRO 1000. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: Type F, AC outlets quantity: 3 AC outlet(s), Serial interface type: RS-232. Battery voltage: 12 V, Typical backup time at full load: 3 min, Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Cable length: 1.5 m. Compliance certificates: CE, RoHS
• Vendor Homepage: https://www.njoy.ro/UPS/aten-pro-1000#overview
• Name: UPS TOWER ATEN PRO 1000 1KVA/PWUP-OL100AP-AZ01B NJOY
• Category Code: UPW
• Model: Aten PRO 1000
• UPS topology: Double-conversion (Online)
• Output power capacity: 1
• Output power: 900
• Waveform: Pure sine
• Input operation voltage (min): 120
• Input operation voltage (max): 300
• Input frequency: 40 - 70
• Output operation voltage (min): 200
• Output operation voltage (max): 240
• Output frequency: 57/63
• Output voltage regulation: ±1
• Surge energy rating: 760
• Number of input phases: 1
• Number of output phases: 1
• Efficiency: 90
• Input power factor: 0.99
• Crest factor: 3:1
• ECO mode: Yes
• Total Harmonic Distortion (THD) (linear load): 3
• Total Harmonic Distortion (THD) (non-linear load): 6
• Noise level: 50
• Power protection features: Battery discharge/Over voltage/Overcharge/Overload/Short circuit/Surge protection
• Audible alarm(s): Yes
• Audible alarm modes: Fault,Low battery alarm,Overload alarm
• Auto-restart: Yes
• AC outlet types: Type F
• AC outlets quantity: 3
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Battery voltage: 12
• Typical backup time at full load: 3
• Typical backup time at half load: 9
• Battery recharge time(90%): 4
• Cold start: Yes
• Form factor: Tower
• Cable length: 1.5
• Product colour: Black
• Display type: LCD
• Operating temperature (T-T): 0 - 40
• Operating relative humidity (H-H): 20 - 90
• Batteries included: Yes
• Cables included: Input power cable,USB cable
• Manual: Yes
• Compliance certificates: CE/RoHS
• Width: 145
• Depth: 282
• Height: 220
• Weight: 9800
• Package width: 360
• Package depth: 230
• Package height: 325
• Package weight: 10500
• Package type: Box
• Warranty period: 2
• Master (outer) case width: 230
• Master (outer) case length: 360
• Master (outer) case height: 325
• Master (outer) case gross weight: 10500
• Products per master (outer) case: 1
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0265
• Unit Calculated Weight: 11
