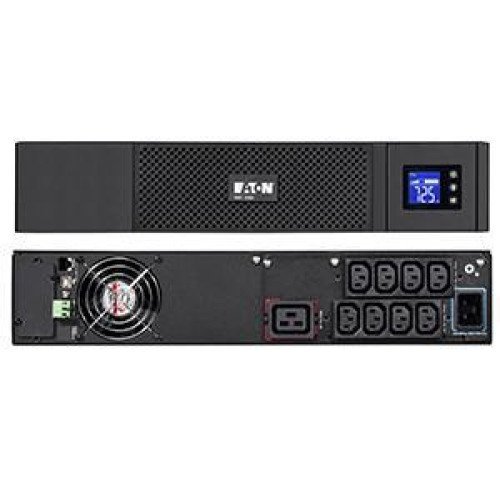

UPS TOWER/RACK 5SC 2200VA/1980W 5SC2200IRT EATON

Technical Specifications

• Summary: Eaton 5SC2200IRT. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount/Tower, Product colour: Black, Display type: LED. Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV). Width: 441 mm, Depth: 552 mm, Height: 86.2 mm
• Vendor Homepage: https://powerquality.eaton.com/5SC2200iRT.aspx?cx=101&GUID=9A3C6000-5072-4B73-92AB-32F19E0E8BFB
• Name: UPS TOWER/RACK 5SC 2200VA/1980W 5SC2200IRT EATON
• Category Code: UPW
• UPS topology: Line-Interactive
• Output power capacity: 2.2
• Output power: 1980
• Input operation voltage (min): 184
• Input operation voltage (max): 276
• Input frequency: 45/65
• Output operation voltage (min): 220
• Output operation voltage (max): 240
• Output frequency regulation: 50/60
• Noise level: 45
• Power protection features: Overdischarge
• AC outlet types: C13 coupler/C19 coupler
• Power plug: C20 coupler
• AC outlets quantity: 9
• USB port: Yes
• Serial interface: Yes
• Serial interface type: RS-232
• Serial ports quantity: 1
• Automatic battery test: Yes
• Form factor: Rackmount/Tower
• Product colour: Black
• Display type: LED
• Operating temperature (T-T): 0 - 40
• Certification: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, CB (TUV)
• Width: 441
• Depth: 552
• Height: 86.2
• Weight: 26500
• Harmonized System (HS) code: 85078000
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.08048
• Unit Calculated Weight: 33
