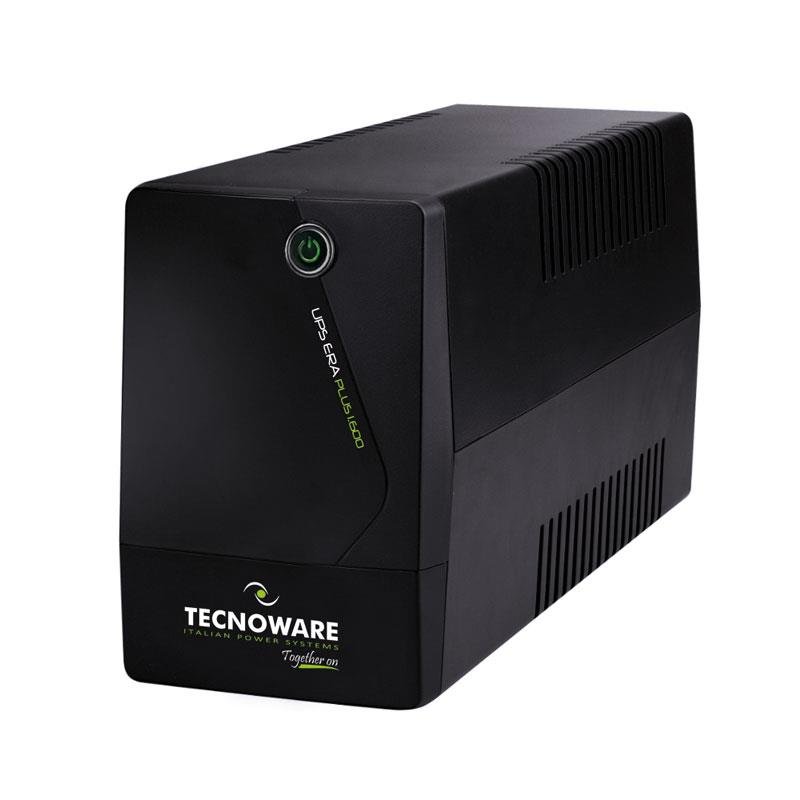

UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH TECNOWARE

UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH TECNOWARE
Нема на залиха
UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH TECNOWARE
  • UPS topology: Line-Interactive
  • Output power: 1120
  • Response time: 2
    • Врз основа на 0 коментари. - Напиши коментар
    7,080ден.
    • Достапност: Нема на залиха
    • Бренд: TECNOWARE
    • Шифра: 304994
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
    • Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/56
    • Name: UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH TECNOWARE
    • Category Code: UPW
    • UPS topology: Line-Interactive
    • Output power capacity: 1.6
    • Output power: 1120
    • Waveform: Sine
    • Input operation voltage (min): 172.5
    • Input operation voltage (max): 276
    • Input frequency: 50/60
    • Output operation voltage (min): 230
    • Output operation voltage (max): 230
    • Output frequency: 50/60
    • Output voltage regulation: 5
    • Automatic Voltage Regulation (AVR): Yes
    • Response time: 2
    • Number of input phases: 1
    • Number of output phases: 1
    • Power factor: 0.7
    • Noise level: 40
    • AC outlet types: Type F
    • AC outlets quantity: 2
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • USB port type: USB Type-B
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at full load: 10
    • Form factor: Compact
    • Product colour: Black
    • LED indicators: Yes
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 55
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 300
    • Certification: CE
    • Width: 101
    • Depth: 279
    • Height: 142
    • Weight: 5000
    • Package width: 180
    • Package depth: 340
    • Package height: 220
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01346
    • Unit Calculated Weight: 5.35
    Specs
    AC outlet types Type F
    AC outlets quantity 2
    Automatic Voltage Regulation (AVR) Yes
    Battery technology Sealed Lead Acid (VRLA)
    Category Code UPW
    Certification CE
    Depth 279
    Description

    UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.

    • Complete protection against blackout and power surges (overvoltages and undervoltages)
    • Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
    • Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
    • AVR Automatic Voltage Regulator electronic circuit
    • n 2 Italy / Schuko output sockets and n 1 schuko input cable
    • outputs socket protected against blackout
    • outputs socket protected against overvoltages
    • multifunction LED and on-off button
    • USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
    • UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
    Form Factor Compact
    Height 142
    Input frequency 50/60
    Input operation voltage (max) 276
    Input operation voltage (min) 172.5
    International Protection (IP) code IP20
    LED indicators Yes
    Name UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH TECNOWARE
    Noise level 40
    Number of input phases 1
    Number of output phases 1
    Operating altitude 0 - 300
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 55
    Output frequency 50/60
    Output operation voltage (max) 230
    Output operation voltage (min) 230
    Output power 1120
    Output power capacity 1.6
    Output voltage regulation 5
    Package depth 340
    Package height 220
    Package width 180
    PictureUrl https://static.elko.cloud/ProductImages/5f3c597b-981d-478b-b1d3-dcd8f85066aa.Jpeg
    Power factor 0.7
    Product colour Black
    Response time 2
    Summary Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/5f3c597b-981d-478b-b1d3-dcd8f85066aa.Jpeg
    Typical backup time at full load 10
    Unit Calculated Volume 0.01346
    Unit Calculated Weight 5.35
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    USB port Yes
    USB port type USB Type-B
    Vendor Homepage https://www.tecnoware.com/en-US/Dettaglio/Articolo/56
    Waveform Sine
    Weight 5000
    Width 101
