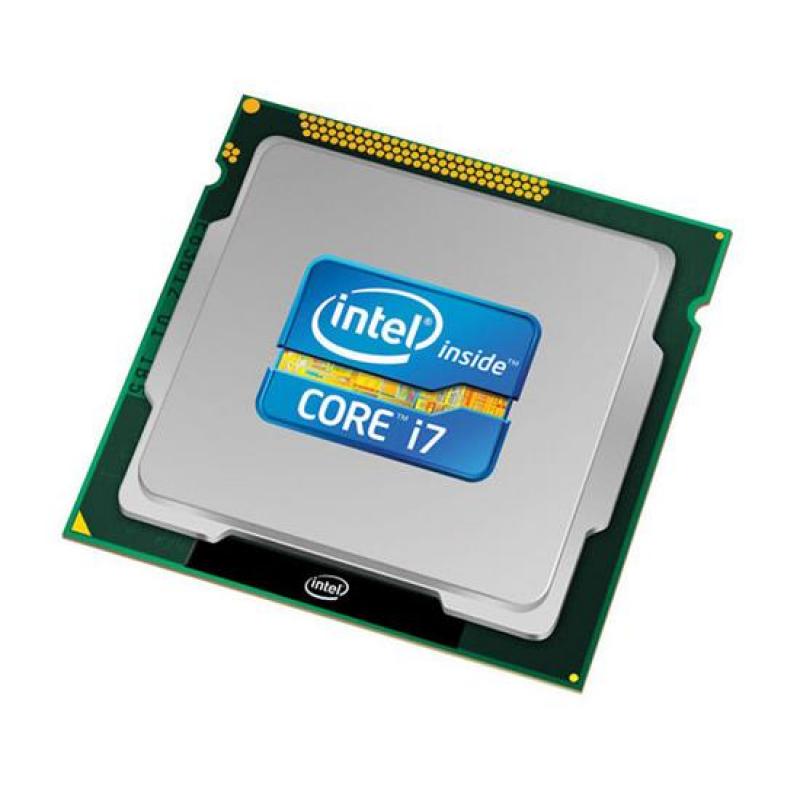

Intel Core i7 i7-3820QM

Intel Core i7 i7-3820QM
Нема на залиха
Intel Core i7 i7-3820QM
  • Processor model: i7-3820QM
  • Processor family: Intel® Coreâ„¢ i7
  • Processor cores: 4
  • Processor socket: BGA 1224
  • On-board graphics card model: Intel® HD Graphics 4000
    • Врз основа на 0 коментари. - Напиши коментар
    36,274ден.
    • Достапност: Нема на залиха
    • Бренд: INTEL
    • Шифра: 128858
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Intel Core i7-3820QM. Processor family: Intel Core i7, Processor socket: BGA 1224, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel HD Graphics 4000, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Intel Turbo Boost Technology 2.0 frequency: 3.7 GHz
    • Vendor Homepage: https://ark.intel.com/products/64889/
    • Name: CPU CORE I7-3820QM SG2 OEM 8M/2.7G AW8063801012708SR0MJ IN
    • Category Code: CPU
    • Processor manufacturer: Intel
    • Processor generation: 3rd gen Intel Core i7
    • Processor model: i7-3820QM
    • Processor base frequency: 2.7
    • Processor family: Intel Core i7
    • Processor cores: 4
    • Processor socket: BGA 1224
    • Component for: PC
    • Processor lithography: 22
    • Processor series: Intel Core i7-3800 Mobile Series
    • Processor threads: 8
    • System bus rate: 5
    • Processor operating modes: 64-bit
    • Processor boost frequency: 3.7
    • Processor cache: 8
    • Processor cache type: Smart Cache
    • Thermal Design Power (TDP): 45
    • Package type: Tray
    • Generation: 3rd Generation
    • Bus type: DMI
    • CPU multiplier (bus/core ratio): 27
    • Memory bandwidth supported by processor (max): 25.6
    • Processor codename: Ivy Bridge
    • Processor ARK ID: 64889
    • Maximum internal memory supported by processor: 32
    • Memory types supported by processor: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    • Memory clock speeds supported by processor: 1333/1600
    • Memory channels: Dual-channel
    • On-board graphics card: Yes
    • On-board graphics card model: Intel HD Graphics 4000
    • On-board graphics card outputs supported: CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
    • On-board graphics card base frequency: 650
    • On-board graphics card dynamic frequency (max): 1250
    • Number of displays supported (on-board graphics): 3
    • On-board graphics card ID: 0x166
    • Execute Disable Bit: Yes
    • Idle States: Yes
    • Thermal Monitoring Technologies: Yes
    • Integrated 4G WiMAX: Yes
    • Market segment: Desktop
    • Maximum number of PCI Express lanes: 16
    • PCI Express slots version: 3.0
    • PCI Express configurations: 1x16/1x8/2x4/2x8
    • Supported instruction sets: AVX
    • CPU configuration (max): 1
    • Graphics & IMC lithography: 22
    • PCI Express CEM revision: 3.0
    • Export Control Classification Number (ECCN): 5A992C
    • Commodity Classification Automated Tracking System (CCATS): G077159
    • Enhanced Intel SpeedStep Technology: Yes
    • Intel Dual Display Capable Technology: Yes
    • Intel Fast Memory Access: Yes
    • Intel FDI Technology: Yes
    • Intel Flex Memory Access: Yes
    • Intel Trusted Execution Technology: Yes
    • Intel AES New Instructions (Intel AES-NI): Yes
    • Intel Anti-Theft Technology (Intel AT): Yes
    • Intel Clear Video HD Technology (Intel CVT HD): Yes
    • Intel Hyper Threading Technology (Intel HT Technology): Yes
    • Intel Identity Protection Technology (Intel IPT): Yes
    • Intel Insider: Yes
    • Intel InTru 3D Technology: Yes
    • Intel My WiFi Technology (Intel MWT): Yes
    • Intel Quick Sync Video Technology: Yes
    • Intel Turbo Boost Technology: 2.0
    • Intel Wireless Display (Intel WiDi): Yes
    • Intel Turbo Boost Technology 2.0 frequency: 3.7
    • Conflict-Free processor: Yes
    • Intel 64: Yes
    • Intel Enhanced Halt State: Yes
    • Intel Identity Protection Technology version: 1.00
    • Intel Secure Key Technology version: 1.00
    • Intel Virtualization Technology (VT-x): Yes
    • Intel Virtualization Technology for Directed I/O (VT-d): Yes
    • Intel VT-x with Extended Page Tables (EPT): Yes
    • Intel Secure Key: Yes
    • Intel vPro Platform Eligibility: Yes
    • Maximum operating temperature: 105
    • Tjunction: 105
    • Bus bandwidth: 5
    • Bus speed: 5 GT/s
    • Bus type units: GT/s
    • Last change: 63903513
    • Launch date: Q212
    • Maximum memory: 32
    • Processor brand name: Intel Core i7 vPro Intel Core i7 vPro Processor
    • Processor cache: 8192
    • Processor ID: 0x166
    • Product family: 3rd Generation Intel Core i7 Processors
    • Product type: Processor
    • Status: Discontinued
    • Supported memory types: DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    • Harmonized System (HS) code: 8542310001
    • Processor package size: 37.5mm x 37.5mm; 31mm x 24mm
    • Intel Virtualization Technology (Intel VT): Yes
    • Graphics output: eDP/DP/HDMI/SDVO/CRT
    • Maximum internal memory: 32
    • Maximum internal memory: 32768
    • CPU Family name: Intel Core i7
    • Model number: i7-3820QM
    • Unit Calculated Volume: 7E-05
    • Unit Calculated Weight: 0.04
    Specifications
    Bus bandwidth 5
    Bus speed 5 GT/s
    Bus type DMI
    Bus type units GT/s
    Conflict-Free processor Yes
    CPU configuration (max) 1
    CPU multiplier (bus/core ratio) 27
    Enhanced Intel SpeedStep Technology Yes
    Execute Disable Bit Yes
    Generation 3rd Generation
    Graphics & IMC lithography 22
    Graphics output eDP/DP/HDMI/SDVO/CRT
    Idle States Yes
    Integrated 4G WiMAX Yes
    Intel 64 Yes
    Intel Dual Display Capable Technology Yes
    Intel Enhanced Halt State Yes
    Intel Fast Memory Access Yes
    Intel FDI Technology Yes
    Intel Flex Memory Access Yes
    Intel Identity Protection Technology version 1.00
    Intel Secure Key Technology version 1.00
    Intel Virtualization Technology (VT-x) Yes
    Intel VT-x with Extended Page Tables (EPT) Yes
    Intel® AES New Instructions (Intel® AES-NI) Yes
    Intel® Anti-Theft Technology (Intel® AT) Yes
    Intel® Hyper Threading Technology (Intel® HT Technology) Yes
    Intel® Identity Protection Technology (Intel® IPT) Yes
    Intel® My WiFi Technology (Intel® MWT) Yes
    Intel® Secure Key Yes
    Intel® Turbo Boost Technology 2.0 frequency 3.7
    Intel® Wireless Display (Intel® WiDi) Yes
    Last change 63903513
    Maximum memory 32
    Maximum number of PCI Express lanes 16
    Memory bandwidth supported by processor (max) 25.6
    Memory clock speeds supported by processor 1333/1600
    Memory types supported by processor DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    Number of displays supported (on-board graphics) 3
    On-board graphics card base frequency 650
    On-board graphics card dynamic frequency (max) 1250
    On-board graphics card ID 0x166
    On-board graphics card outputs supported CRT/DisplayPort/Embedded DisplayPort (eDP)/HDMI/Serial Digital Video Out (SDVO)
    Processor ARK ID 64889
    Processor base frequency 2.7
    Processor boost frequency 3.7
    Processor brand name Intel Core i7 vPro Intel Core i7 vPro Processor
    Processor cache 8192
    Processor cache type Smart Cache
    Processor codename Ivy Bridge
    Processor generation 3rd gen Intel® Core™ i7
    Processor ID 0x166
    Processor operating modes 64-bit
    Processor package size 37.5mm x 37.5mm; 31mm x 24mm
    Processor series Intel Core i7-3800 Mobile Series
    Processor threads 8
    Product family 3rd Generation Intel Core i7 Processors
    Supported instruction sets AVX
    Thermal Monitoring Technologies Yes
    Tjunction 105
    Specs
    Category Code CPU
    Commodity Classification Automated Tracking System (CCATS) G077159
    Component for PC
    CPU Family name Intel Core i7
    Description

    Hyper-Threading Technology (HT Technology)
    Today's Intel® Hyper-Threading Technology (Intel® HT Technology) delivers thread-level parallelism on each processor resulting in more efficient use of processor resources—higher processing throughput—and improved performance on the multi-threaded software of today and tomorrow.

    Intel® Virtualization Technology (Intel® VT)
    Increasing manageability, security, and flexibility in IT environments, virtualization technologies like hardware-assisted Intel® Virtualization Technology (Intel® VT) combined with software-based virtualization solutions provide maximum system utilization by consolidating multiple environments into a single server or PC. By abstracting the software away from the underlying hardware, a world of new usage models opens up that reduce costs, increase management efficiency, strengthen security, while making your computing infrastructure more resilient in the event of a disaster.

    Intel® Virtualization Technology (Intel® VT) for Directed I/O (Intel® VT-d)
    Intel® Virtualization Technology for Directed I/O (VT-d) extends Intel's Virtualization Technology (VT) roadmap by providing hardware assists for virtualization solution. VT-d continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environment. These inherently helps IT managers reduce the overall total cost of ownership by reducing potential down time and increasing productive throughput by better utilization of the data center resources.

    Intel® Trusted Execution Technology (Intel® TXT)
    Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. Intel Trusted Execution Technology provides hardware-based mechanisms that help protect against software-based attacks and protects the confidentiality and integrity of data stored or created on the client PC. It does this by enabling an environment where applications can run within their own space, protected from all other software on the system. These capabilities provide the protection mechanisms, rooted in hardware, that are necessary to provide trust in the application's execution environment. In turn, this can help to protect vital data and processes from being compromised by malicious software running on the platform.

    Intel® 64 Architecture
    Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

    Enhanced Intel SpeedStep® Technology
    Enhanced Intel SpeedStep® Technology is an advanced means of enabling very high performance while also meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load.

    Intel® Fast Memory Access (Intel® FMA)
    Intel® Fast Memory Access is an updated Graphics Memory Controller Hub (GMCH) backbone architecture that improves system performance by optimizing the use of available memory bandwidth and reducing the latency of the memory accesses.

    Intel® Flex Memory Technology
    Facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.

    Execute Disable Bit
    Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network. Help protect your customers' business assets and reduce the need for costly virus-related repairs by building systems with built-in Intel Execute Disable Bit.
    Export Control Classification Number (ECCN) 5A992C
    Harmonized System (HS) code 8542310001
    Intel Trusted Execution Technology Yes
    Intel Virtualization Technology for Directed I/O (VT-d) Yes
    Intel® Clear Video HD Technology (Intel® CVT HD) Yes
    Intel® Insider™ Yes
    Intel® InTru™ 3D Technology Yes
    Intel® Quick Sync Video Technology Yes
    Intel® Turbo Boost Technology 2.0
    Intel® Virtualization Technology (Intel® VT) Yes
    Intel® vPro™ Platform Eligibility Yes
    Launch date Q2'12
    Market segment Desktop
    Maximum internal memory 32768
    Maximum internal memory supported by processor 32
    Maximum operating temperature 105
    Memory channels Dual-channel
    Model number i7-3820QM
    Name CPU CORE I7-3820QM SG2 OEM 8M/2.7G AW8063801012708SR0MJ IN
    On-board graphics card Yes
    On-board graphics card model Intel® HD Graphics 4000
    Package type Tray
    PCI Express CEM revision 3.0
    PCI Express configurations 1x16/1x8/2x4/2x8
    PCI Express slots version 3.0
    PictureUrl https://static.elko.cloud/ProductImages/570f127a-1d28-46e5-9c2f-804632ffd5d7.Jpeg
    Processor cores 4
    Processor family Intel® Core™ i7
    Processor lithography 22
    Processor manufacturer Intel
    Processor model i7-3820QM
    Processor socket BGA 1224
    Product type Processor
    Status Discontinued
    Summary Intel Core i7-3820QM. Processor family: Intel® Core™ i7, Processor socket: BGA 1224, Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM, DDR3L-RS-SDRAM. On-board graphics card model: Intel® HD Graphics 4000, On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, Serial Digital Video Out (SDVO), CRT, On-board graphics card base frequency: 650 MHz. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8, 2x4, Supported instruction sets: AVX. Intel® Turbo Boost Technology 2.0 frequency: 3.7 GHz
    Supported memory types DDR3L-RS-SDRAM/DDR3L-SDRAM/DDR3-SDRAM
    System bus rate 5
    Thermal Design Power (TDP) 45
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/570f127a-1d28-46e5-9c2f-804632ffd5d7.Jpeg
    Unit Calculated Volume 7E-05
    Unit Calculated Weight 0.04
    Vendor Homepage https://ark.intel.com/products/64889/
