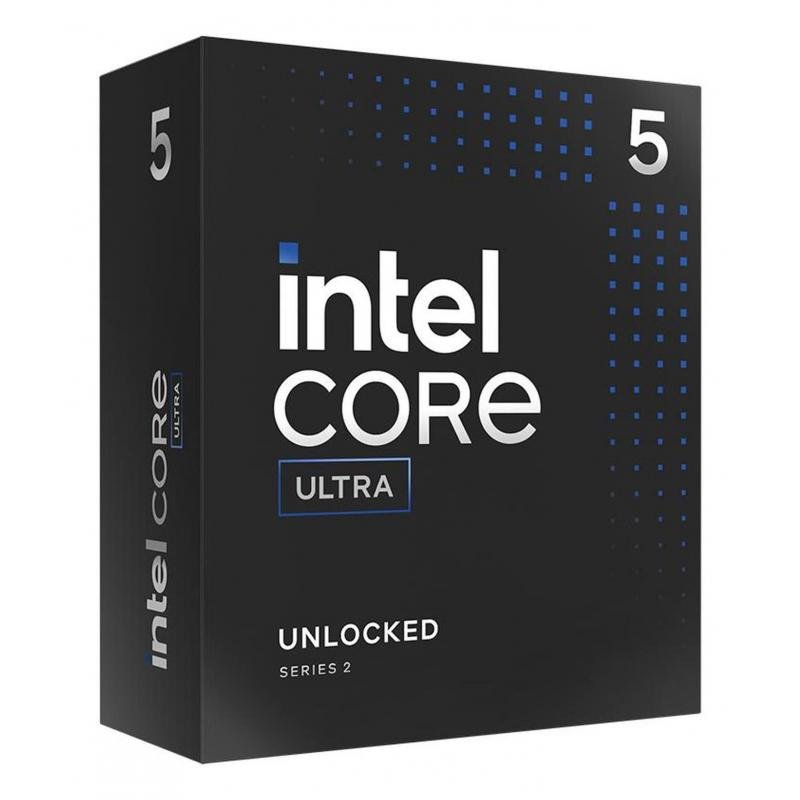

Intel Core Ultra 225

Intel Core Ultra 225
Intel Core Ultra 225
  • Processor model: 225
  • Processor family: Intel Core Ultra 5
  • Processor cores: 10
  • Processor socket: LGA 1851 (Socket V1)
  • On-board graphics card model: Intel® Graphics
    • Врз основа на 0 коментари. - Напиши коментар
    11,720ден.
    • Достапност:
    • Бренд: INTEL
    • Шифра: 453843
    • Гарантен рок: 12 months
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Intel Core Ultra 5 225. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 23 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
    • Vendor Homepage: https://www.intel.com/content/www/us/en/products/sku/241070/intel-core-ultra-5-processor-225-20m-cache-up-to-4-90-ghz/specifications.html
    • Name: CPU CORE U5-225 S1851 BOX/3.3G BX80768225 S RQCZ IN
    • Category Code: CPU
    • Processor manufacturer: Intel
    • Processor generation: Intel Core Ultra (Series 2)
    • Processor model: 225
    • Processor family: Intel Core Ultra 5
    • Processor cores: 10
    • Processor socket: LGA 1851 (Socket V1)
    • Processor threads: 10
    • Processor operating modes: 64-bit
    • Performance cores: 6
    • Efficient cores: 4
    • Processor boost frequency: 4.9
    • Performance-core boost frequency: 4.9
    • Performance-core base frequency: 3.3
    • Efficient-core boost frequency: 4.4
    • Efficient-core base frequency: 2.7
    • Processor cache: 20
    • Processor cache type: Smart Cache
    • Package type: Box
    • Maximum turbo power: 121
    • Processor base power: 65
    • AI software frameworks supported by CPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
    • Maximum number of DMI lanes: 8
    • Processor codename: Arrow Lake
    • Processor ARK ID: 241070
    • Neural processor unit (NPU): Intel AI Boost
    • Sparsity support: Yes
    • Windows Studio effects support: Yes
    • AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
    • Total processor performance up to: 23
    • NPU performance up to: 13
    • GPU performance up to: 4
    • Maximum internal memory supported by processor: 192
    • Memory types supported by processor: DDR5-SDRAM
    • Memory clock speeds supported by processor: 6400
    • Memory channels: Dual-channel
    • On-board graphics card: Yes
    • On-board graphics card model: Intel Graphics
    • On-board graphics card outputs supported: DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
    • On-board graphics card base frequency: 300
    • On-board graphics card dynamic frequency (max): 1800
    • Number of displays supported (on-board graphics): 4
    • On-board graphics card DirectX version: 12.0
    • On-board graphics card OpenGL version: 4.5
    • On-board graphics card refresh rate at maximum resolution (DisplayPort): 60
    • On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60
    • On-board graphics card refresh rate at maximum resolution (HDMI): 60
    • On-board graphics card ID: 0x7D67
    • Xe-cores: 2
    • Execute Disable Bit: Yes
    • Idle States: Yes
    • Thermal Monitoring Technologies: Yes
    • Market segment: Desktop
    • Use conditions: PC/Client/Tablet
    • Maximum number of PCI Express lanes: 24
    • PCI Express slots version: 4.0/5.0
    • Supported instruction sets: AVX 2.0/SSE4.1/SSE4.2
    • Direct Media Interface (DMI) Revision: 4.0
    • Embedded options available: Yes
    • Scalability: 1S
    • Enhanced Intel SpeedStep Technology: Yes
    • Intel Trusted Execution Technology: Yes
    • Intel AES New Instructions (Intel AES-NI): Yes
    • Intel Quick Sync Video Technology: Yes
    • Intel Speed Shift Technology: Yes
    • Intel Turbo Boost Technology: 2.0
    • Intel Thunderbolt 4: Yes
    • Intel Control-flow Enforcement Technology (CET): Yes
    • Intel Thread Director: Yes
    • Intel 64: Yes
    • Intel Virtualization Technology (VT-x): Yes
    • Intel Virtualization Technology for Directed I/O (VT-d): Yes
    • Intel VT-x with Extended Page Tables (EPT): Yes
    • Intel Boot Guard: Yes
    • Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes
    • Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes
    • Intel OS Guard: Yes
    • Intel Secure Key: Yes
    • Intel Standard Manageability (ISM): Yes
    • Intel Volume Management Device (VMD): Yes
    • Mode-based Execute Control (MBE): Yes
    • Maximum operating temperature: 105
    • OpenCL version: 3.0
    • Launch date: Q125
    • Status: Launched
    • Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
    • L2 cache: 22528
    • Maximum internal memory: 192
    • CPU Family name: Intel Core Ultra
    • Model number: 225
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.001056
    • Unit Calculated Weight: 0.44
    Specifications
    AI software frameworks supported by CPU DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
    AI software frameworks supported by NPU DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
    Direct Media Interface (DMI) Revision 4.0
    Efficient cores 4
    Efficient-core base frequency 2.7
    Efficient-core boost frequency 4.4
    Embedded options available Yes
    Enhanced Intel SpeedStep Technology Yes
    Execute Disable Bit Yes
    GPU performance up to 4
    Graphics output DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
    Idle States Yes
    Intel 64 Yes
    Intel Virtualization Technology (VT-x) Yes
    Intel VT-x with Extended Page Tables (EPT) Yes
    Intel® AES New Instructions (Intel® AES-NI) Yes
    Intel® Boot Guard Yes
    Intel® Control-flow Enforcement Technology (CET) Yes
    Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
    Intel® Deep Learning Boost (Intel® DL Boost) on GPU Yes
    Intel® OS Guard Yes
    Intel® Secure Key Yes
    Intel® Speed Shift Technology Yes
    Intel® Standard Manageability (ISM) Yes
    Intel® Thread Director Yes
    Intel® Thunderbolt 4 Yes
    Intel® Volume Management Device (VMD) Yes
    L2 cache 22528
    Maximum number of DMI lanes 8
    Maximum number of PCI Express lanes 24
    Maximum turbo power 121
    Memory clock speeds supported by processor 6400
    Memory types supported by processor DDR5-SDRAM
    Mode-based Execute Control (MBE) Yes
    Neural processor unit (NPU) Intel AI Boost
    Number of displays supported (on-board graphics) 4
    On-board graphics card base frequency 300
    On-board graphics card DirectX version 12.0
    On-board graphics card dynamic frequency (max) 1800
    On-board graphics card ID 0x7D67
    On-board graphics card OpenGL version 4.5
    On-board graphics card outputs supported DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1
    On-board graphics card refresh rate at maximum resolution (Displ 60
    On-board graphics card refresh rate at maximum resolution (eDP - 60
    On-board graphics card refresh rate at maximum resolution (HDMI) 60
    Performance cores 6
    Performance-core base frequency 3.3
    Performance-core boost frequency 4.9
    Processor ARK ID 241070
    Processor base power 65
    Processor boost frequency 4.9
    Processor cache 20
    Processor cache type Smart Cache
    Processor codename Arrow Lake
    Processor generation Intel Core Ultra (Series 2)
    Processor operating modes 64-bit
    Processor threads 10
    Scalability 1S
    Sparsity support Yes
    Supported instruction sets AVX 2.0/SSE4.1/SSE4.2
    Thermal Monitoring Technologies Yes
    Total processor performance up to 23
    Windows Studio effects support Yes
    Specs
    Category Code CPU
    CPU Family name Intel Core Ultra
    Description

    The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.
    Intel Trusted Execution Technology Yes
    Intel Virtualization Technology for Directed I/O (VT-d) Yes
    Intel® Quick Sync Video Technology Yes
    Intel® Turbo Boost Technology 2.0
    Launch date Q1'25
    Market segment Desktop
    Maximum internal memory 192
    Maximum internal memory supported by processor 192
    Maximum operating temperature 105
    Memory channels Dual-channel
    Model number 225
    Name CPU CORE U5-225 S1851 BOX/3.3G BX80768225 S RQCZ IN
    NPU performance up to 13
    On-board graphics card Yes
    On-board graphics card model Intel® Graphics
    OpenCL version 3.0
    Package type Box
    PCI Express slots version 4.0/5.0
    PictureUrl https://static.elko.cloud/ProductImages/e5146213-89ec-4bd0-8f49-db2d525d5701.Jpeg
    Processor cores 10
    Processor family Intel Core Ultra 5
    Processor manufacturer Intel
    Processor model 225
    Processor socket LGA 1851 (Socket V1)
    Status Launched
    Summary Intel Core Ultra 5 225. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 23 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/e5146213-89ec-4bd0-8f49-db2d525d5701.Jpeg
    Unit Calculated Volume 0.001056
    Unit Calculated Weight 0.44
    Units per Pallet 0
    Units per Shipping Box 1
    Use conditions PC/Client/Tablet
    Vendor Homepage https://www.intel.com/content/www/us/en/products/sku/241070/intel-core-ultra-5-processor-225-20m-cache-up-to-4-90-ghz/specifications.html
    Xe-cores 2
