Technical Specifications

• Summary: Chieftec AS-01B-OP. Form factor: Full Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 405 mm, Height: 462 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/533/AS-01B-OP
• Name: CASE MIDITOWER ATX W/O PSU/AS-01B-OP CHIEFTEC
• Category Code: CAS
• Type: PC
• Form factor: Full Tower
• Product colour: Black
• Supported motherboard form factors: ATX/micro ATX/Mini-ITX
• Number of 3.5" bays: 2
• Number of 2.5" bays: 2
• Number of internal 3.5" bays: 2
• Number of expansion slots: 7

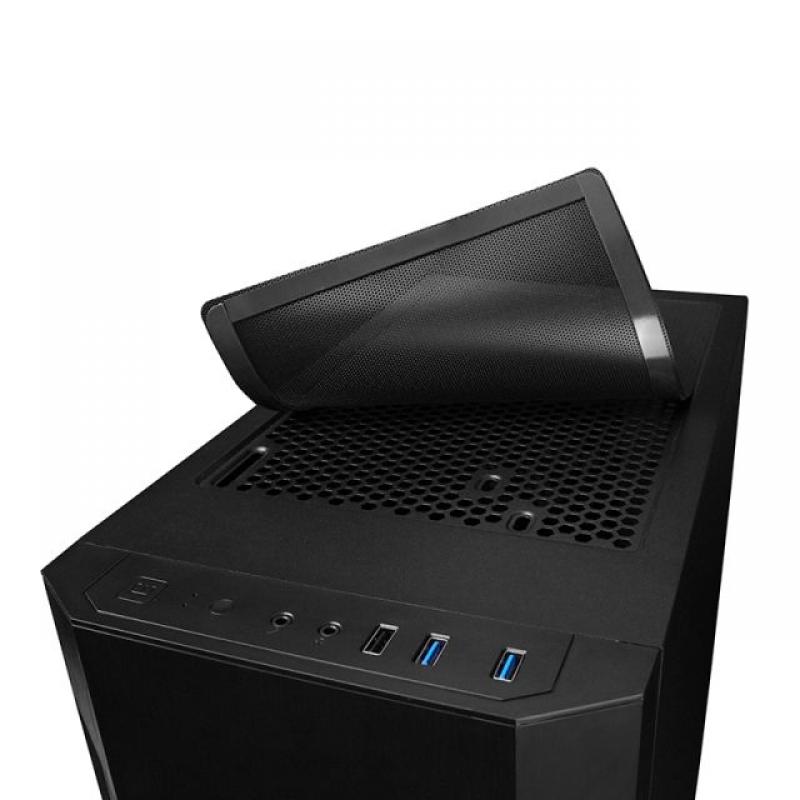

• Anti-dust filter: Yes
• On/off button: Yes
• Reset button: Yes
• Maximum CPU cooler height: 170
• Maximum graphics card length: 320
• Certification: CE, EAC, RoHS
• Design features: CPU cooler height (max.)170mm; VGA card length (max.)320mm
• Supported power supply form factors: ATX
• Audio output: Yes
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Number of front fans supported (max): 3
• Front fans diameters supported: 120/140
• Rear fans installed: 1x 120 mm
• Number of rear fans supported (max): 1
• Rear fans diameters supported: 120
• Number of top fans supported (max): 2
• Top fans diameters supported: 120/140
• Front radiator sizes supported: 280
• Supported HDD sizes: 2.5/3.5
• Compliance certificates: CE/RoHS
• Width: 212
• Depth: 405
• Height: 462
• Weight: 4290
• Package weight: 5100
• Model: AS-01B-OP
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.06472
• Unit Calculated Weight: 5
