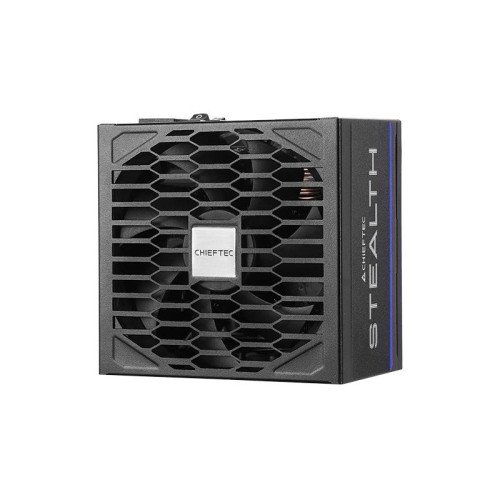

CASE PSU ATX 1200W/SPX-1200-FC CHIEFTEC

CASE PSU ATX 1200W/SPX-1200-FC CHIEFTEC
CASE PSU ATX 1200W/SPX-1200-FC CHIEFTEC
  • Total power: 1200
  • 80 PLUS certification: 80 PLUS Platinum
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 135
    • Врз основа на 0 коментари. - Напиши коментар
    12,704ден.
    • Достапност: Има залиха
    • Бренд: CHIEFTEC
    • Шифра: 453255
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Stealth 1200W Vega M Series SPX-1200-FC 80+ Platin. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    • Name: CASE PSU ATX 1200W/SPX-1200-FC CHIEFTEC
    • Category Code: PSU
    • Total power: 1200
    • AC input voltage: 100 - 240
    • AC input frequency: 50/60
    • Input current: 15.0-7.5
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 100
    • Combined power (+12V): 1200
    • Combined power (+5V): 100
    • Combined power (+5Vsb): 15
    • Max output current (+3.3V): 20
    • Max output current (+12V): 100
    • Max output current (+5V): 20
    • Max output current (+5Vsb): 3
    • Power protection features: Over voltage/Overload/Short circuit/Surge and inrush/Under voltage
    • Motherboard power connector: 24-pin ATX
    • Motherboard power cable length: 600
    • Number of SATA power connectors: 8
    • SATA power cable length: 150/500
    • Number of SATA power cables: 10
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/500
    • EPS power connector (8-pin): Yes
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 3
    • PCI Express power cable length: 650
    • ATX Power connector (24-pin): Yes
    • Number of EPS connectors: 1
    • PCI Express connector: Yes
    • Cabling type: Fully-Modular
    • 80 PLUS certification: 80 PLUS Platinum
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 3.1
    • Bearing technology: FDB
    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 135
    • Width: 150
    • Depth: 140
    • Height: 86
    • Package type: Box
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.009996
    • Unit Calculated Weight: 3
    Specs
    80 PLUS certification 80 PLUS Platinum
    AC input frequency 50/60
    AC input voltage 100 - 240
    ATX Power connector (24-pin) Yes
    ATX version 3.1
    Bearing technology FDB
    Cabling type Fully-Modular
    Category Code PSU
    Combined power (+12V) 1200
    Combined power (+3.3V) 100
    Combined power (+5V) 100
    Combined power (+5Vsb) 15
    Cooling type Active
    Depth 140
    EPS power connector (4+4 pin) Yes
    EPS power connector (8-pin) Yes
    Fan diameter 135
    Height 86
    Input current 15.0-7.5
    Max output current (+12V) 100
    Max output current (+3.3V) 20
    Max output current (+5V) 20
    Max output current (+5Vsb) 3
    Motherboard power cable length 600
    Motherboard power connector 24-pin ATX
    Name CASE PSU ATX 1200W/SPX-1200-FC CHIEFTEC
    Number of EPS connectors 1
    Number of SATA power cables 10
    Number of SATA power connectors 8
    Package type Box
    PCI Express connector Yes
    PCI Express power cable length 650
    PCI Express power connectors (6+2 pin) 3
    Peripheral (Molex) power cable length 150/500
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/da4acb29-e37e-474d-9507-e83dbbf5ef90.Jpeg
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overload/Short circuit/Surge and inrush/Under voltage
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC
    SATA power cable length 150/500
    Summary Chieftec Stealth 1200W Vega M Series SPX-1200-FC 80+ Platin. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/da4acb29-e37e-474d-9507-e83dbbf5ef90.Jpeg
    Total power 1200
    Unit Calculated Volume 0.009996
    Unit Calculated Weight 3
    Units per Pallet 0
    Units per Shipping Box 1
    Width 150
