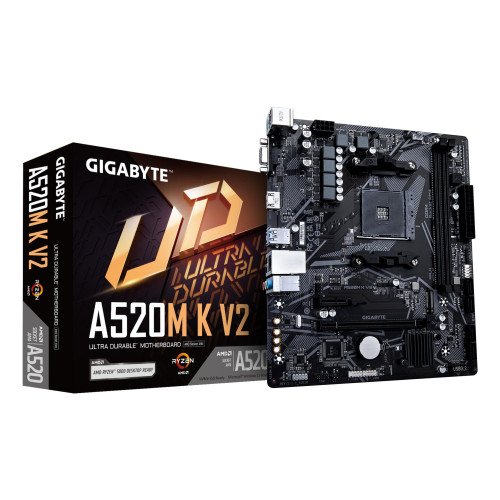

A520M K V2 (rev. 1.1)

A520M K V2 (rev. 1.1)
Нема на залиха
A520M K V2 (rev. 1.1)
  • Motherboard chipset: AMD A520
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM4
  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 2
  • Number of storage drives supported: 5
    • Врз основа на 0 коментари. - Напиши коментар
    3,587ден.
    • Достапност: Нема на залиха
    • Бренд: GIGABYTE
    • Шифра: 409360
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
    • Vendor Homepage: https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10
    • Name: MB AMD A520 SAM4 MATX/A520M K V2 1.1 GIGABYTE
    • Category Code: MBA
    • Model: A520M K V2 (rev. 1.1)
    • Motherboard chipset: AMD A520
    • PC health monitoring: Fan/Temperature/Voltage
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Motherboard chipset family: AMD
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM4
    • Compatible processor series: AMD Ryzen 3000 Series/AMD Ryzen 5000 Series
    • Supported processor sockets: Socket AM4
    • Supported memory types: DDR4-SDRAM
    • Number of memory slots: 2
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: ECC & Non-ECC
    • Supported memory clock speeds: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100
    • Supported memory clock speed (max): 5100
    • Maximum internal memory: 64
    • Unbuffered memory: Yes
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,SATA III
    • Number of storage drives supported: 5
    • RAID support: Yes
    • RAID levels: 0/1/10
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Chassis intrusion connector: Yes
    • EPS power connector (8-pin): Yes
    • 12V power connector: Yes
    • TPM connector: Yes
    • USB 2.0 ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • VGA (D-Sub) ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • Headphone outputs: 3
    • Microphone in: Yes
    • USB connector type: USB Type-A
    • Ethernet LAN: Yes
    • Ethernet interface type: Gigabit Ethernet
    • PCI Express x1 slots: 1
    • PCI Express x16 slots: 1
    • Number of M.2 (M) slots: 1
    • BIOS type: UEFI AMI
    • BIOS memory size: 128
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 265
    • Number of battery cells: 1
    • Package depth: 235
    • Package height: 52
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 675
    • Battery type: CR2032
    • Width: 233
    • Depth: 198
    • Height: 35
    • Batteries included: Yes
    • Cables included: SATA
    • Bundled software: Norton Internet Security
    • Warranty period: 3
    • Units per Shipping Box: 10
    • Unit Calculated Volume: 0.004267
    • Unit Calculated Weight: 0.75
    Specs
    12V power connector Yes
    ACPI version 5.0
    ATX Power connector (24-pin) Yes
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 128
    BIOS type UEFI AMI
    Bundled software Norton Internet Security
    Cables included SATA
    Category Code MBA
    Chassis intrusion connector Yes
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 3000 Series/AMD Ryzen 5000 Series
    Component for PC
    Country of origin China
    CPU fan connector Yes
    Depth 198
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

    • Supports AMD Ryzenâ„¢ 5000 Series/ Ryzenâ„¢ 5000 G-Series/ Ryzenâ„¢ 4000 G-Series and Ryzenâ„¢ 3000 Series Processors​
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​
    • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
    • GbE LAN with Bandwidth Management​
    • 8-Channel HD Audio with High Quality Audio Capacitors​
    • Rear HDMI and D-sub for Multi-display Support
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
    • GIGABYTE APP Center, Simple and Easy Use​​
    Desktop Management Interface (DMI) version 2.7
    ECC сompatibility ECC & Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 3
    Height 35
    Lithium weight per battery 0.07
    Maximum internal memory 64
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model A520M K V2 (rev. 1.1)
    Motherboard chipset AMD A520
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD A520 SAM4 MATX/A520M K V2 1.1 GIGABYTE
    Number of battery cells 1
    Number of M.2 (M) slots 1
    Number of memory slots 2
    Number of SATA III connectors 4
    Number of storage drives supported 5
    Package depth 235
    Package height 52
    Package weight 675
    Package width 265
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage
    PCI Express x1 slots 1
    PCI Express x16 slots 1
    PictureUrl https://static.elko.cloud/ProductImages/bfd547ce-007f-46e8-9241-5e873d17c65f.Jpeg
    Processor manufacturer AMD
    Processor socket Socket AM4
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10
    RAID support Yes
    Summary GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
    Supported memory clock speed (max) 5100
    Supported memory clock speeds 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100
    Supported memory types DDR4-SDRAM
    Supported processor sockets Socket AM4
    Supported storage drive interfaces M.2,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/bfd547ce-007f-46e8-9241-5e873d17c65f.Jpeg
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.004267
    Unit Calculated Weight 0.75
    Units per Shipping Box 10
    USB 2.0 connectors 2
    USB 2.0 ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
    USB connector type USB Type-A
    Vendor Homepage https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10
    VGA (D-Sub) ports quantity 1
    Warranty period 3
    Width 233
    Windows operating systems supported Windows 10 x64/Windows 11 x64
