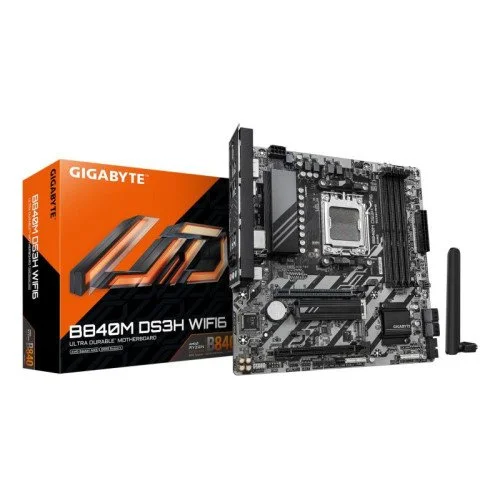

B840M DS3H WIFI6 (Rev. 1.1)

B840M DS3H WIFI6 (Rev. 1.1)
B840M DS3H WIFI6 (Rev. 1.1)
  • Motherboard chipset: AMD B840
  • Motherboard form factor: micro ATX
  • Processor socket: Socket AM5
  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Number of storage drives supported: 6
    • Врз основа на 0 коментари. - Напиши коментар
    9,191ден.
    • Достапност: Има залиха
    • Бренд: GIGABYTE
    • Шифра: 456270
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: GIGABYTE B840M DS3H WIFI6 Motherboard - AMD Ryzen 9000 CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    • Vendor Homepage: https://www.gigabyte.com/
    • Name: MB AMD B840 SAM5 MATX/B840M DS3H WF6 1.1 GIGABYTE
    • Category Code: MBA
    • Model: B840M DS3H WIFI6 (Rev. 1.1)
    • Motherboard chipset: AMD B840
    • Audio chip: Realtek ALC897
    • Product colour: Dark brown
    • PC health monitoring: Fan/Temperature/Voltage/Water cooling
    • Component for: PC
    • Motherboard form factor: micro ATX
    • Audio output channels: 7.1
    • Cooling type: Passive
    • Motherboard chipset family: AMD
    • Power source type: ATX
    • Windows operating systems supported: Windows 10 x64/Windows 11 x64
    • Processor manufacturer: AMD
    • Processor socket: Socket AM5
    • Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    • Supported processor sockets: Socket AM5
    • Supported memory types: DDR5-SDRAM
    • Number of memory slots: 4
    • Memory slots type: DIMM
    • Memory channels: Dual-channel
    • ECC сompatibility: Non-ECC
    • Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
    • Supported memory clock speed (max): 8200
    • Maximum internal memory: 256
    • Unbuffered memory: Yes
    • Maximum internal memory per slot: 64
    • Supported storage drive types: HDD & SSD
    • Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
    • Number of HDDs supported: 4
    • Number of storage drives supported: 6
    • RAID support: Yes
    • RAID levels: 0/1/10/5
    • Parallel processing technology support: Not supported
    • Maximum resolution: 4096 x 2160
    • HDCP: Yes
    • DirectX version: 12.0
    • USB 2.0 connectors: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
    • Number of SATA III connectors: 4
    • Front panel audio connector: Yes
    • Front panel connector: Yes
    • ATX Power connector (24-pin): Yes
    • CPU fan connector: Yes
    • Number of CPU fan connectors: 2
    • Number of chassis fan connectors: 2
    • EPS power connector (8-pin): Yes
    • Number of EPS power connectors (8-pin): 1
    • Number of water pump connectors: 2
    • TPM connector: Yes
    • RGB LED pin header: Yes
    • Number of RGB LED pin headers: 3
    • USB 2.0 ports quantity: 4
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
    • Ethernet LAN (RJ-45) ports: 1
    • PS/2 ports quantity: 1
    • HDMI ports quantity: 1
    • HDMI version: 2.1
    • DisplayPorts quantity: 2
    • DisplayPort version: 1.4
    • Headphone outputs: 1
    • Line-in: Yes
    • Microphone in: Yes
    • WiFi-AP antenna jack: 2
    • Ethernet LAN: Yes
    • Ethernet interface type: 2.5 Gigabit Ethernet
    • LAN controller: Realtek RTL8125
    • Wi-Fi: Yes
    • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    • Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
    • WLAN controller model: Realtek RTL8851BE
    • Bluetooth: Yes
    • Bluetooth version: 5.3
    • PCI Express x16 (Gen 3.x) slots: 1
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 2
    • 1st M.2 largest key size: 2580
    • 1st M.2 highest PCI Express generation: 4.0
    • 2nd M.2 largest key size: 25110
    • 2nd M.2 highest PCI Express generation: 4.0
    • BIOS type: UEFI AMI
    • BIOS memory size: 256
    • ACPI version: 5.0
    • Clear CMOS jumper: Yes
    • Desktop Management Interface (DMI) version: 2.7
    • System Management BIOS (SMBIOS) version: 2.7
    • Country of origin: China
    • Products per shipping (inner) case: 1
    • Battery weight: 3
    • Lithium weight per battery: 0.07
    • Package width: 270
    • Number of battery cells: 1
    • Package depth: 268
    • Package height: 68
    • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
    • Package weight: 1232
    • Battery type: CR2032
    • Width: 244
    • Depth: 244
    • Height: 35
    • Antenna included: Yes
    • Batteries included: Yes
    • Screws included: Yes
    • Bundled software: Norton Internet Security (OEM version)
    • Weight: 1130
    • Warranty period: 3
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.005103
    • Unit Calculated Weight: 1
    Specs
    1st M.2 highest PCI Express generation 4.0
    1st M.2 largest key size 2580
    2nd M.2 highest PCI Express generation 4.0
    2nd M.2 largest key size 25110
    ACPI version 5.0
    Antenna included Yes
    ATX Power connector (24-pin) Yes
    Audio chip Realtek ALC897
    Audio output channels 7.1
    Batteries included Yes
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Battery type CR2032
    Battery weight 3
    BIOS memory size 256
    BIOS type UEFI AMI
    Bluetooth Yes
    Bluetooth version 5.3
    Bundled software Norton® Internet Security (OEM version)
    Category Code MBA
    Clear CMOS jumper Yes
    Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
    Component for PC
    Cooling type Passive
    Country of origin China
    CPU fan connector Yes
    Depth 244
    Description

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

    • X3D Turbo Mode to unleash new era gaming performance
    • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
    • Digital 8+2+2 phases VRM solution
    • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
    • EZ-Latch: PCIe x16 Slot with Quick Release Design
    • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
    • Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 4.0 x4
    • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
    • Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax
    Desktop Management Interface (DMI) version 2.7
    DirectX version 12.0
    DisplayPort version 1.4
    DisplayPorts quantity 2
    ECC сompatibility Non-ECC
    EPS power connector (8-pin) Yes
    Ethernet interface type 2.5 Gigabit Ethernet
    Ethernet LAN Yes
    Ethernet LAN (RJ-45) ports 1
    Front panel audio connector Yes
    Front panel connector Yes
    HDCP Yes
    HDMI ports quantity 1
    HDMI version 2.1
    Headphone outputs 1
    Height 35
    LAN controller Realtek RTL8125
    Line-in Yes
    Lithium weight per battery 0.07
    Maximum internal memory 256
    Maximum internal memory per slot 64
    Maximum resolution 4096 x 2160
    Memory channels Dual-channel
    Memory slots type DIMM
    Microphone in Yes
    Model B840M DS3H WIFI6 (Rev. 1.1)
    Motherboard chipset AMD B840
    Motherboard chipset family AMD
    Motherboard form factor micro ATX
    Name MB AMD B840 SAM5 MATX/B840M DS3H WF6 1.1 GIGABYTE
    Number of battery cells 1
    Number of chassis fan connectors 2
    Number of CPU fan connectors 2
    Number of EPS power connectors (8-pin) 1
    Number of HDDs supported 4
    Number of M.2 (M) slots 2
    Number of memory slots 4
    Number of RGB LED pin headers 3
    Number of SATA III connectors 4
    Number of storage drives supported 6
    Number of water pump connectors 2
    Package depth 268
    Package height 68
    Package weight 1232
    Package width 270
    Parallel processing technology support Not supported
    PC health monitoring Fan/Temperature/Voltage/Water cooling
    PCI Express x16 (Gen 3.x) slots 1
    PCI Express x16 (Gen 4.x) slots 1
    PictureUrl https://static.elko.cloud/ProductImages/1c19d181-1474-4e99-9d59-3e09ff020441.Jpeg
    Power source type ATX
    Processor manufacturer AMD
    Processor socket Socket AM5
    Product colour Dark brown
    Products per shipping (inner) case 1
    PS/2 ports quantity 1
    RAID levels 0/1/10/5
    RAID support Yes
    RGB LED pin header Yes
    Screws included Yes
    Summary GIGABYTE B840M DS3H WIFI6 Motherboard - AMD Ryzen 9000 CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
    Supported memory clock speed (max) 8200
    Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
    Supported memory types DDR5-SDRAM
    Supported processor sockets Socket AM5
    Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
    Supported storage drive types HDD & SSD
    System Management BIOS (SMBIOS) version 2.7
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/1c19d181-1474-4e99-9d59-3e09ff020441.Jpeg
    Top Wi-Fi standard Wi-Fi 6 (802.11ax)
    TPM connector Yes
    Unbuffered memory Yes
    Unit Calculated Volume 0.005103
    Unit Calculated Weight 1
    Units per Pallet 0
    Units per Shipping Box 1
    USB 2.0 connectors 2
    USB 2.0 ports quantity 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
    Vendor Homepage https://www.gigabyte.com/
    Warranty period 3
    Weight 1130
    Wi-Fi Yes
    Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
    Width 244
    WiFi-AP antenna jack 2
    Windows operating systems supported Windows 10 x64/Windows 11 x64
    WLAN controller model Realtek RTL8851BE
