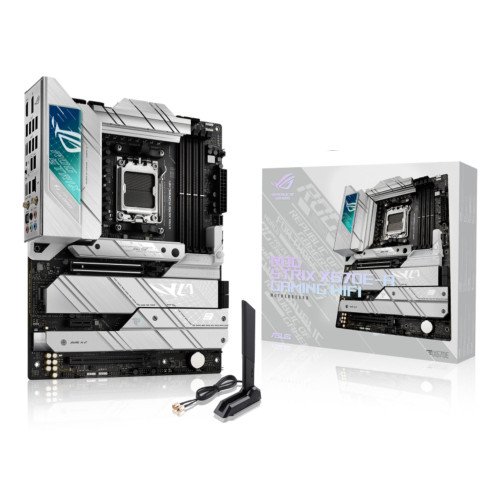

ROG STRIX X670E-A GAMING WIFI

Technical Specifications

• Summary: ASUS ROG STRIX X670E-A GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://rog.asus.com/motherboards/rog-strix/rog-strix-x670e-a-gaming-wifi-model/
• Name: MB AMD X670 SAM5 ATX/STRIX X670E-A GAMING WIFI ASUS
• Category Code: MBA
• Model: ROG STRIX X670E-A GAMING WIFI
• Motherboard chipset: AMD X670
• Audio chip: Realtek ALC4080
• Product colour: Aluminium/Black
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Cooling type: Active
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Compatible processor series: AMD Ryzen 7
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC & Non-ECC
• Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400
• Maximum internal memory: 128
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 5
• 12V power connector: Yes
• Thunderbolt headers: 1
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• S/PDIF out port: Yes
• Digital audio optical out: 1
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• LAN controller: Intel I225-V
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.2
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1
• Number of M.2 (M) slots: 4
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Yes
• Package width: 280
• Package depth: 265
• Package height: 710
• Width: 305
• Depth: 244
• Cables included: SATA
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.007219
• Unit Calculated Weight: 2.4
