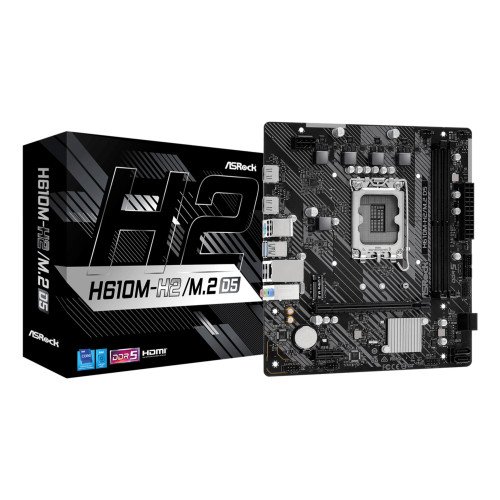

H610M-H2/M.2 D5

Technical Specifications

• Summary: Asrock H610M-H2/M.2 D5. Processor manufacturer: Intel, Processor socket: LGA 1700. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
• Vendor Homepage: https://www.asrock.com/MB/Intel/H610M-H2M.2%20D5/index.asp#Overview
• Name: MB H610 S1700 MATX/H610M-H2/M.2 D5 ASROCK
• Category Code: MBI
• Model: H610M-H2/M.2 D5
• Motherboard chipset: Intel H610
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: Intel
• Windows operating systems supported: Windows 10 x64/Windows 11 x64
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Maximum number of SMP processors: 1
• Supported memory types: DDR5-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Maximum internal memory: 96
• Supported storage drive interfaces: M.2,SATA III
• USB 2.0 connectors: 1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• TPM connector: Yes
• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 2
• Line-in: Yes
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• LAN controller: Realtek 8111H
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• BIOS type: UEFI AMI
• BIOS memory size: 128
• Width: 220
• Depth: 193
• Units per Shipping Box: 20
• Unit Calculated Volume: 0.004544
• Unit Calculated Weight: 0.76
