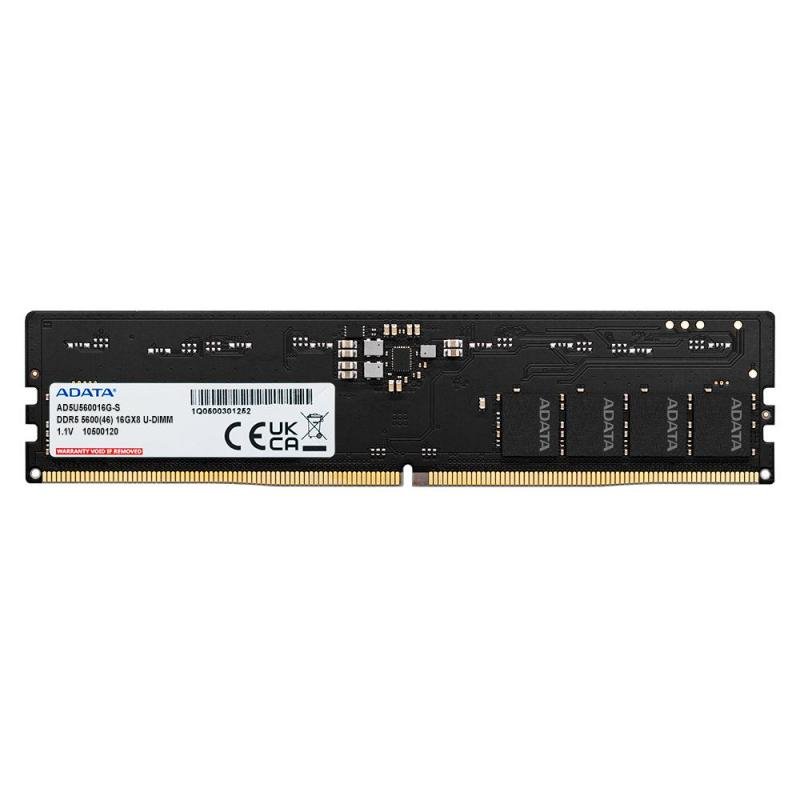

MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA

MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA
Нема на залиха
MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA
  • Internal memory type: DDR5
  • Internal memory: 16
  • Memory clock speed: 5600
  • Memory layout (modules x size): 1 x 16
    • Врз основа на 0 коментари. - Напиши коментар
    21,779ден.
    • Достапност: Нема на залиха
    • Бренд: ADATA
    • Шифра: 446682
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: ADATA Premier . Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46
    • Vendor Homepage: https://www.adata.com/en/consumer/dram-module-ddr5-5600-u-dimm?tab=description
    • Name: MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA
    • Category Code: MEM
    • Internal memory type: DDR5
    • Internal memory: 16
    • Buffered memory type: Unregistered (unbuffered)
    • Memory clock speed: 5600
    • CAS latency: 46
    • Memory voltage: 1.1
    • Memory form factor: 288-pin DIMM
    • Component for: PC
    • Memory layout (modules x size): 1 x 16
    • Module configuration: 2048M x 8
    • On-Die ECC: Yes
    • Operating temperature (T-T): 0 - 85
    • Package type: Tray
    • Model: AD5U560016G-S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.000104
    • Unit Calculated Weight: 0.2
    Specs
    Buffered memory type Unregistered (unbuffered)
    CAS latency 46
    Category Code MEM
    Component for PC
    Description

    Higher Frequencies
    The DDR5-5600 U-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).

    More Energy-Efficient
    This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

    Capacity Doubled
    This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.

    Improved Stability
    With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.

    QuikTips: DDR5 vs DDR4 - Appearance
    DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

    QuikTips: DDR5 vs DDR4 - Chip Architecture
    DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.

    QuikTips: DDR5 vs DDR4 - Performance
    The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MHz and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

    • Higher Frequencies
    • Built-in Power Management IC
    • Higher Capacities
    • On-Die Error Correcting Code
    • Works with the latest AMD and Intel platforms
    Internal memory 16
    Internal memory type DDR5
    Memory clock speed 5600
    Memory form factor 288-pin DIMM
    Memory layout (modules x size) 1 x 16
    Memory voltage 1.1
    Model AD5U560016G-S
    Module configuration 2048M x 8
    Name MEMORY DIMM 16GB DDR5-5600/AD5U560016G-S ADATA
    On-Die ECC Yes
    Operating temperature (T-T) 0 - 85
    Package type Tray
    PictureUrl https://static.elko.cloud/ProductImages/40c1579e-5bda-49e7-9943-94d46323b0c1.Jpeg
    Summary ADATA Premier . Component for: PC, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR5, Memory clock speed: 5600 MHz, Memory form factor: 288-pin DIMM, CAS latency: 46
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/40c1579e-5bda-49e7-9943-94d46323b0c1.Jpeg
    Unit Calculated Volume 0.000104
    Unit Calculated Weight 0.2
    Units per Shipping Box 1
    Vendor Homepage https://www.adata.com/en/consumer/dram-module-ddr5-5600-u-dimm?tab=description
