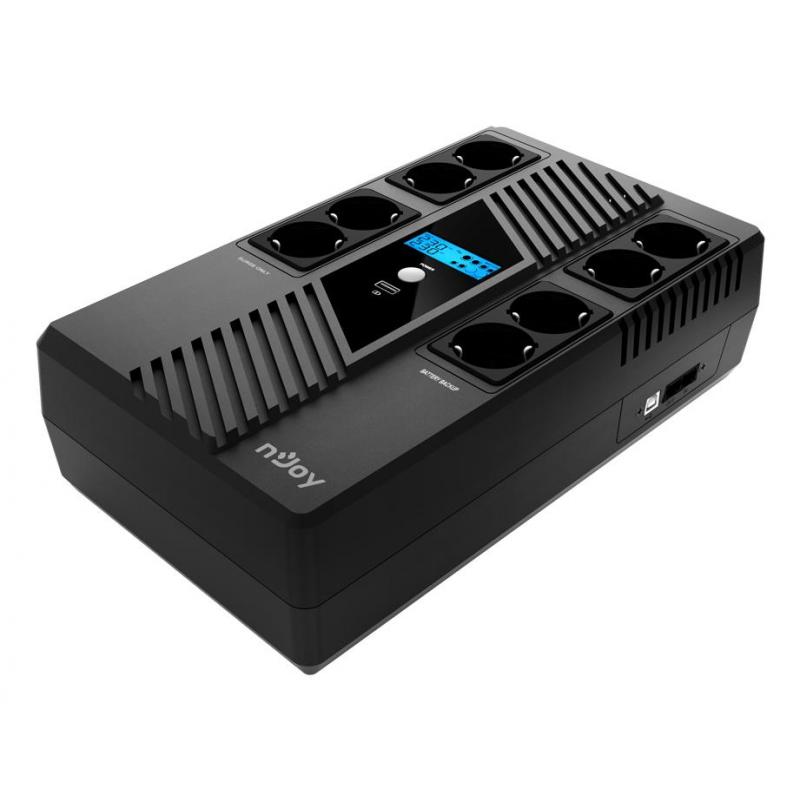

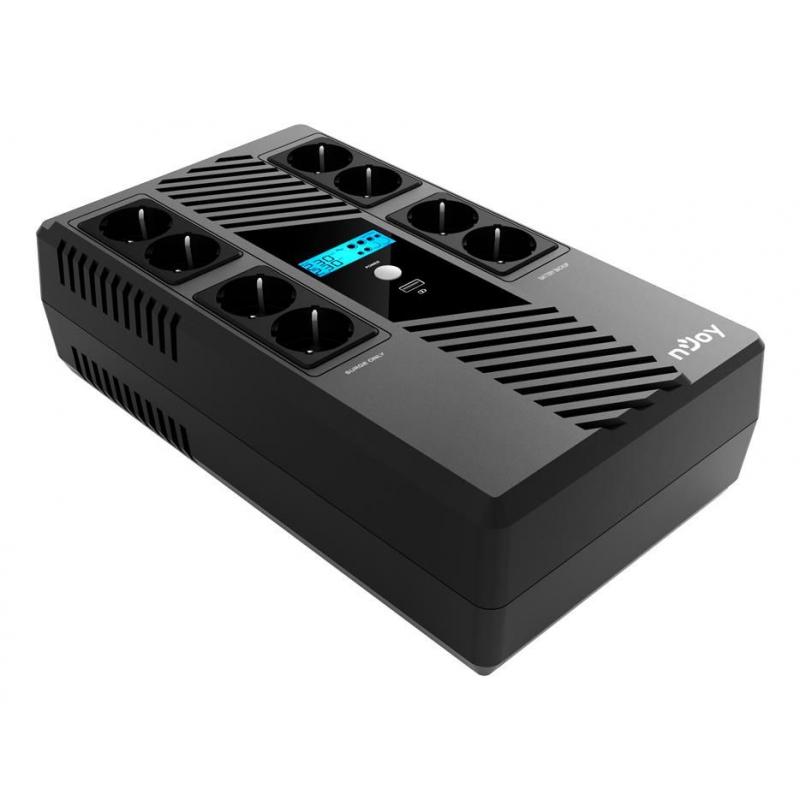

UPS BRICK TOKEN 800 800VA/UPCSBLS680TTOAZ01B NJOY

UPS BRICK TOKEN 800 800VA/UPCSBLS680TTOAZ01B NJOY
UPS BRICK TOKEN 800 800VA/UPCSBLS680TTOAZ01B NJOY
  • UPS topology: Line-Interactive
  • Output power: 480
  • Response time: 6
    • Врз основа на 0 коментари. - Напиши коментар
    5,806ден.
    • Достапност: Има залиха
    • Бренд: NJOY
    • Шифра: 426478
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: nJoy Token 800. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 8 AC outlet(s). Typical backup time at half load: 2.5 min, Battery recharge time: 8 h, Replacement battery cartridge: GP09122F. Form factor: Compact, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS
    • Vendor Homepage: https://www.njoy.global/product/token-800/UPCSBLS680TTOAZ01B
    • Name: UPS BRICK TOKEN 800 800VA/UPCSBLS680TTOAZ01B NJOY
    • Category Code: UPW
    • Model: Token 800
    • UPS topology: Line-Interactive
    • Output power capacity: 0.8
    • Output power: 480
    • Waveform: Sine
    • Input operation voltage (min): 170
    • Input operation voltage (max): 280
    • Input frequency: 50/60
    • Output operation voltage (max): 230
    • Output voltage regulation: -10 - 10
    • Automatic Voltage Regulation (AVR): Yes
    • Response time: 6
    • Number of input phases: 1
    • Number of output phases: 1
    • Power factor: 0.6
    • Surge protection: Yes
    • Surge protection features: Network
    • Power protection features: Battery discharge/Overcharge/Overload
    • Auto-restart: Yes
    • AC outlet types: Type F
    • Power plug: Type F
    • AC outlets quantity: 8
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • USB port type: USB Type-B
    • Ethernet LAN (RJ-45) ports: 1
    • Cabling technology: 10/100/1000Base-T(X)
    • Number of batteries supported: 1
    • Typical backup time at half load: 2.5
    • Battery recharge time: 8
    • Cold start: Yes
    • Replacement battery cartridge: GP09122F
    • Form factor: Compact
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Operating relative humidity (H-H): 0 - 90
    • Cables included: USB cable
    • Compliance certificates: CE/RoHS
    • Sustainability compliance: Yes
    • Width: 200
    • Depth: 345
    • Height: 100
    • Weight: 5800
    • Package width: 269
    • Package depth: 425
    • Package height: 146
    • Package weight: 6200
    • Package type: Box
    • Master (outer) case net weight: 17400
    • Master (outer) case width: 438
    • Master (outer) case length: 461
    • Master (outer) case height: 287
    • Master (outer) case gross weight: 18600
    • Products per master (outer) case: 3
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01701
    • Unit Calculated Weight: 6.1
    Specs
    AC outlet types Type F
    AC outlets quantity 8
    Auto-restart Yes
    Automatic Voltage Regulation (AVR) Yes
    Battery recharge time 8
    Cables included USB cable
    Cabling technology 10/100/1000Base-T(X)
    Category Code UPW
    Cold start Yes
    Compliance certificates CE/RoHS
    Depth 345
    Description

    TOKEN SERIES
    THE SEAL OF EFFECTIVE DEFENSE
    Adapting to market requirements determined us to increase our efforts and meet the challenges posed by today’s capacity surge. We introduce Token 600 and Token 800 from our newest line-interactive UPS series

    Binding home and office together
    We crafted two small brick UPS models that simply bind home & office together. Based on the effective line interactive technology, with a compact design (345 x 200 x 100 mm) and multiple outlets (8), these two products are a versatile solution to exclude the use of other messy extension cords and enhance protection for the connected electronic equipment in: offices, home offices, small house security circuits and residential devices.

    8 x Schuko outlets for convenient power distribution
    Secure your every piece of equipment and enjoy maximum protection against power abnormalities using the 8 Schuko UPS outlets for battery backup & surge protection.

    HID USB port
    Simply monitor and efficiently manage the crucial parameters of the UPS without additional software. The UPS appears in Windows as a battery icon, keeping all Windows power management options available for customization.

    1Gb/s LAN protection
    Have an extra surge protection for LAN connections up to 1 Gb/s. This UPS is the right choice for your Gigabit Ethernet, it keeps your equipment safe without limiting your communication speed.

    USB Charger 2.1A
    Use the extra USB ports to charge and power more mobile devices during power outages. (smartphones, tablets, portable gaming consoles, etc).

    Easy battery replacement
    Enjoy the user-friendly battery replacement process, through a designed entry with direct access to the batteries.

    • USB Charger
    • 8 x Schuko
    • 1Gb/s LAN protection
    • Compact size for stand and mounting flexibility
    • Excellent microprocessor control guarantees high reliability
    • Easy replacement battery compartment
    • Auto restart while AC is recovering
    • Off-mode charging
    • Cold start function
    • Boost and buck AVR for voltage stabilization
    Display type LCD
    Ethernet LAN (RJ-45) ports 1
    Form Factor Compact
    Height 100
    Input frequency 50/60
    Input operation voltage (max) 280
    Input operation voltage (min) 170
    LED indicators Yes
    Master (outer) case gross weight 18600
    Master (outer) case height 287
    Master (outer) case length 461
    Master (outer) case net weight 17400
    Master (outer) case width 438
    Model Token 800
    Name UPS BRICK TOKEN 800 800VA/UPCSBLS680TTOAZ01B NJOY
    Number of batteries supported 1
    Number of input phases 1
    Number of output phases 1
    Operating relative humidity (H-H) 0 - 90
    Operating temperature (T-T) 0 - 40
    Output operation voltage (max) 230
    Output power 480
    Output power capacity 0.8
    Output voltage regulation -10 - 10
    Package depth 425
    Package height 146
    Package type Box
    Package weight 6200
    Package width 269
    PictureUrl https://static.elko.cloud/ProductImages/70234a16-122f-4860-b530-4bbe00d5f761.Jpeg
    Power factor 0.6
    Power plug Type F
    Power protection features Battery discharge/Overcharge/Overload
    Product colour Black
    Products per master (outer) case 3
    Replacement battery cartridge GP09122F
    Response time 6
    Summary nJoy Token 800. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 8 AC outlet(s). Typical backup time at half load: 2.5 min, Battery recharge time: 8 h, Replacement battery cartridge: GP09122F. Form factor: Compact, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS
    Surge protection Yes
    Surge protection features Network
    Sustainability compliance Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/70234a16-122f-4860-b530-4bbe00d5f761.Jpeg
    Typical backup time at half load 2.5
    Unit Calculated Volume 0.01701
    Unit Calculated Weight 6.1
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    USB port Yes
    USB port type USB Type-B
    Vendor Homepage https://www.njoy.global/product/token-800/UPCSBLS680TTOAZ01B
    Waveform Sine
    Weight 5800
    Width 200
