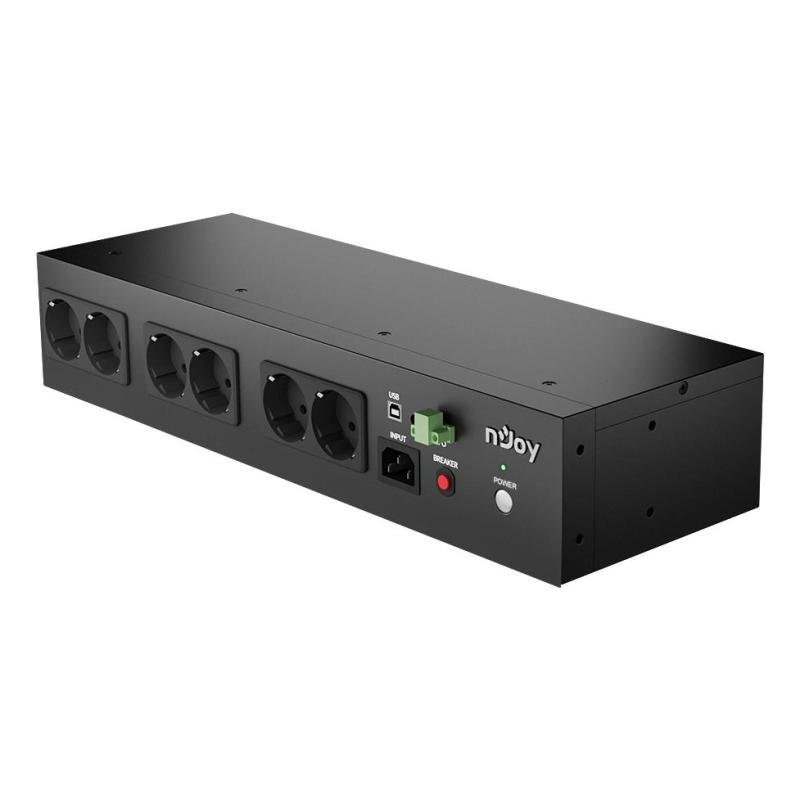

UPS RACK THERON 800 800VA/UPCMRSS680TTRCG01B NJOY

UPS RACK THERON 800 800VA/UPCMRSS680TTRCG01B NJOY
UPS RACK THERON 800 800VA/UPCMRSS680TTRCG01B NJOY
  • UPS topology: Standby (Offline)
  • Output power: 480
  • Response time: 14
    • Врз основа на 0 коментари. - Напиши коментар
    8,480ден.
    • Достапност: Има залиха
    • Бренд: NJOY
    • Шифра: 426431
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: nJoy Theron 800. UPS topology: Standby (Offline), Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery voltage: 12 V, Typical backup time at full load: 1.17 min, Typical backup time at half load: 9.67 min. Form factor: Rackmount, Product colour: Black. Cables included: Input power cable
    • Vendor Homepage: https://www.njoy.global/product/theron-800/UPCMRSS680TTRCG01B
    • Name: UPS RACK THERON 800 800VA/UPCMRSS680TTRCG01B NJOY
    • Category Code: UPW
    • Model: UPCMRSS680TTRCG01B
    • UPS topology: Standby (Offline)
    • Output power capacity: 0.8
    • Output power: 480
    • Waveform: Sine
    • Input operation voltage (min): 180
    • Input operation voltage (max): 270
    • Input frequency: 50/60
    • Output operation voltage (min): 220
    • Output operation voltage (max): 240
    • Output voltage regulation: -7 - 7
    • Response time: 14
    • Output power factor: 0.6
    • Emergency Power Off (EPO): Yes
    • Noise level: 40
    • AC outlet types: Type F
    • Power plug: C13 coupler
    • AC outlets quantity: 8
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • USB port type: USB Type-B
    • Battery voltage: 12
    • Number of batteries supported: 1
    • Typical backup time at full load: 1.17
    • Typical backup time at half load: 9.67
    • Battery recharge time: 8
    • Replacement battery cartridge: GP09122L
    • Form factor: Rackmount
    • Product colour: Black
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 2000
    • Batteries included: Yes
    • Cables included: Input power cable
    • Width: 438
    • Depth: 150
    • Height: 86
    • Weight: 5250
    • Package type: Box
    • Master (outer) case net weight: 17910
    • Warranty period: 3
    • Master (outer) case width: 388
    • Master (outer) case length: 519
    • Master (outer) case height: 245
    • Master (outer) case gross weight: 18660
    • Products per master (outer) case: 3
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.01495
    • Unit Calculated Weight: 5.4
    Specs
    AC outlet types Type F
    AC outlets quantity 8
    Batteries included Yes
    Battery recharge time 8
    Battery voltage 12
    Cables included Input power cable
    Category Code UPW
    Depth 150
    Description

    THERON 800
    CLEAN AND EFFICIENT POWER
    Theron 800 is a slim design UPS with 8 outlets, on 2 sides that acts as a hub to power multiple low-voltage equipment in a rack or small server closet, with backup and management through HID USB. It shows its strengths when used with switches, NAS, CCTV, IoT sensors, small servers, routers, optical fiber decoder boxes in a rack or closet setup. Theron 800 has an HID USB port. The benefit of this type of port is the plug-and-play functionality without the use of additional software.

    Power availability
    Theron 800 is an UPS that can provide electrical power to sensitive systems even in case of outages. This feature enhances the ability to quickly respond to issues and maintain operational continuity.

    Ties it all together
    Theron is a slim design UPS with a lot of outlets that acts as a hub to power multiple low-power equipment in a rack or small server closet, such as switches, NAS, CCTV, IoT sensors, small servers, routers etc.

    8 Schuko outlets
    Theron 800 has power outlets on 2 sides that allows for the connection of many pieces of equipment in a rack. Additionally, it occupies just 2U of space.

    EPO port for sensors
    Theron 800 with environmental monitoring features through its EPO port can track temperature and humidity, ensuring the operating conditions remain within safe limits for sensitive equipment

    HID USB port
    The benefit of this type of port is the plug-and-play functionality. When it is connected to a computer, the operating system automatically recognizes it and loads a generic driver, allowing the device to function immediately and show logs and data, without the need for additional software installation.

    Easy access
    Front, easy servicing for Theron 800 means that all maintenance and service tasks can be performed from the front of the unit. This 2U design feature simplifies access, enhances space efficiency, airflow and reduces downtime, making it ideal for environments where space is limited.

    • HID USB Communication
    • Compact design for rack installation
    • For APFC Equipment
    • Front Installation & Maintenance
    • Support APFC Equipment
    • Auto-Restart/Auto-Charge
    • Cold Start Function
    • Compact Size
    Emergency Power Off (EPO) Yes
    Form Factor Rackmount
    Height 86
    Input frequency 50/60
    Input operation voltage (max) 270
    Input operation voltage (min) 180
    LED indicators Yes
    Master (outer) case gross weight 18660
    Master (outer) case height 245
    Master (outer) case length 519
    Master (outer) case net weight 17910
    Master (outer) case width 388
    Model UPCMRSS680TTRCG01B
    Name UPS RACK THERON 800 800VA/UPCMRSS680TTRCG01B NJOY
    Noise level 40
    Number of batteries supported 1
    Operating altitude 0 - 2000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 40
    Output operation voltage (max) 240
    Output operation voltage (min) 220
    Output power 480
    Output power capacity 0.8
    Output power factor 0.6
    Output voltage regulation -7 - 7
    Package type Box
    PictureUrl https://static.elko.cloud/ProductImages/f8e76dff-d483-4a92-b036-97be75ef6d49.Jpeg
    Power plug C13 coupler
    Product colour Black
    Products per master (outer) case 3
    Replacement battery cartridge GP09122L
    Response time 14
    Summary nJoy Theron 800. UPS topology: Standby (Offline), Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery voltage: 12 V, Typical backup time at full load: 1.17 min, Typical backup time at half load: 9.67 min. Form factor: Rackmount, Product colour: Black. Cables included: Input power cable
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/f8e76dff-d483-4a92-b036-97be75ef6d49.Jpeg
    Typical backup time at full load 1.17
    Typical backup time at half load 9.67
    Unit Calculated Volume 0.01495
    Unit Calculated Weight 5.4
    Units per Shipping Box 1
    UPS topology Standby (Offline)
    USB 2.0 ports quantity 1
    USB port Yes
    USB port type USB Type-B
    Vendor Homepage https://www.njoy.global/product/theron-800/UPCMRSS680TTRCG01B
    Warranty period 3
    Waveform Sine
    Weight 5250
    Width 438
