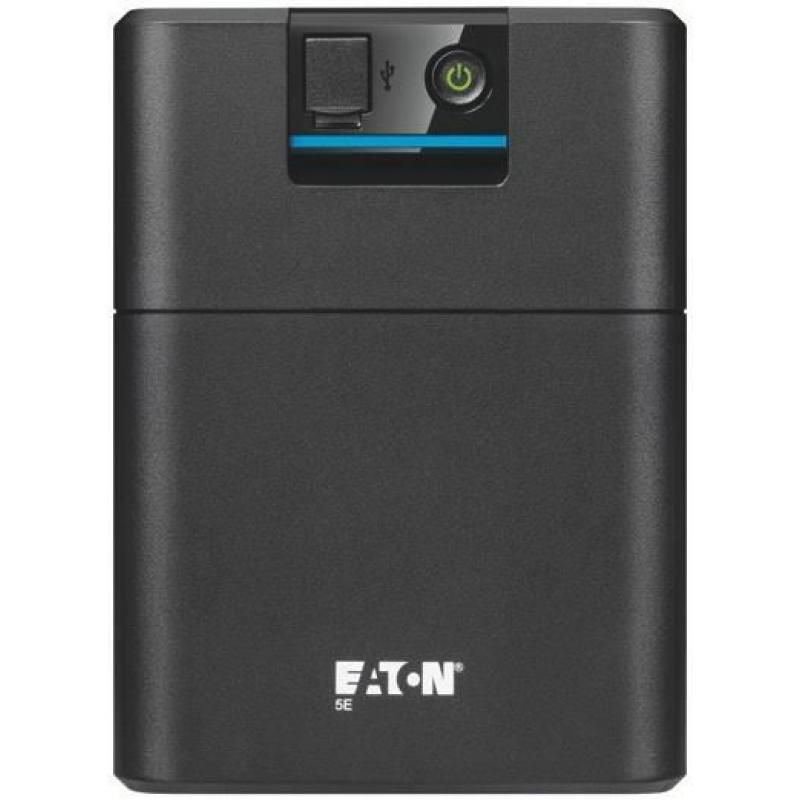

UPS TOWER 5E 1200VA 660W/USB 5E1200UD EATON

UPS TOWER 5E 1200VA 660W/USB 5E1200UD EATON
Нема на залиха
UPS TOWER 5E 1200VA 660W/USB 5E1200UD EATON
  • UPS topology: Line-Interactive
  • Output power: 660
    • Врз основа на 0 коментари. - Напиши коментар
    10,727ден.
    • Достапност: Нема на залиха
    • Бренд: EATON
    • Шифра: 408731
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 5E Gen2 1200 USB. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 660 W. AC outlet types: Type G (BS 1363), AC outlets quantity: 2 AC outlet(s). Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE, Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr. Width: 100 mm, Depth: 288 mm, Height: 148 mm
    • Vendor Homepage: https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
    • Name: UPS TOWER 5E 1200VA 660W/USB 5E1200UD EATON
    • Category Code: UPW
    • Model: 5E1200UD
    • UPS topology: Line-Interactive
    • Output power capacity: 1.2
    • Output power: 660
    • Input operation voltage (min): 220
    • Input operation voltage (max): 240
    • Input frequency: 50/60
    • Output operation voltage (min): 220
    • Output operation voltage (max): 240
    • Noise level: 25
    • Power protection features: Over voltage/Under voltage
    • Audible alarm(s): Yes
    • Audible alarm modes: Battery replacement
    • Auto-restart: Yes
    • Power source type: AC

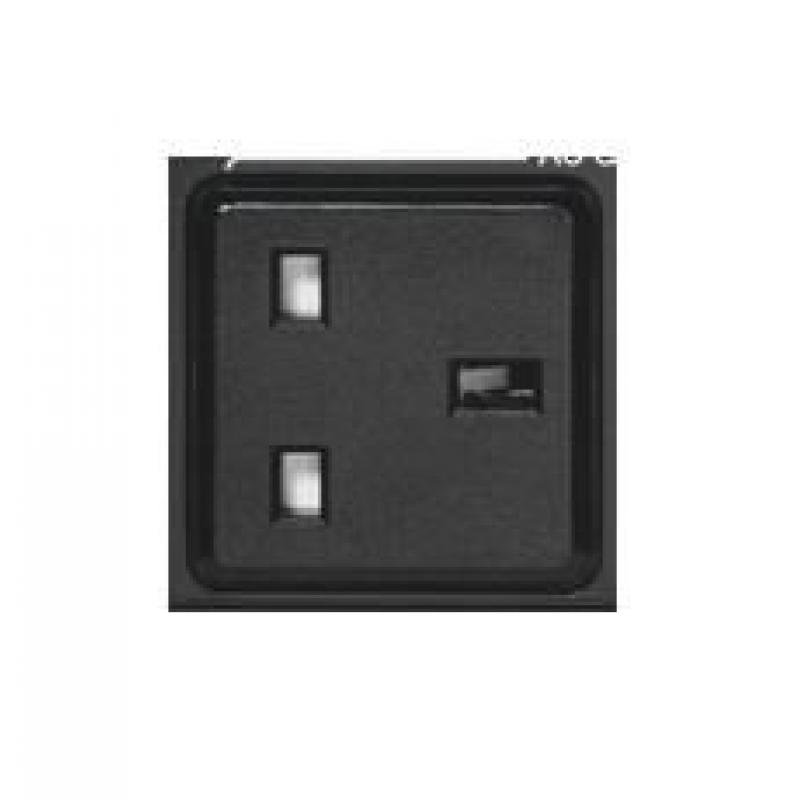

    • AC outlet types: Type G (BS 1363)
    • AC outlets quantity: 2
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • Automatic battery test: Yes
    • Cold start: Yes
    • Form factor: Tower
    • Product colour: Black
    • Control type: Buttons
    • Operating temperature (T-T): 0 - 40
    • Compliance certificates: Low Voltage Directive (LVD)/RoHS/WEEE
    • Sustainability compliance: Yes
    • Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr
    • Width: 100
    • Depth: 288
    • Height: 148
    • Weight: 8500
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.03623
    • Unit Calculated Weight: 9.5
    Specs
    AC outlet types Type G (BS 1363)
    AC outlets quantity 2
    Audible alarm modes Battery replacement
    Audible alarm(s) Yes
    Auto-restart Yes
    Automatic battery test Yes
    Category Code UPW
    Certification EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr
    Cold start Yes
    Compliance certificates Low Voltage Directive (LVD)/RoHS/WEEE
    Control type Buttons
    Depth 288
    Description

    Eaton 5E Gen2 delivers efficient, affordable power protection for critical applications in both residential and professional settings.

    Power protection
    Eaton 5E Gen2 UPS protects application and data against power loss.
    Double-boost Automatic Voltage Regulation (AVR) technology regulates grid fluctuations (under and overvoltage) to save battery power in the event of power outage.
    A wide product range covers the power requirements of many IT devices.
    Auto-restart function enables the UPS to restart automatically when mains power recovers after a total battery discharge.

    Easy integration
    Eaton 5E Gen2 implements national outlet formats (FR, DIN/IT, BS and IEC) to make application connection and protection easy.
    Fanless design up to 1200VA ensures silent operation in residential settings.
    Compact housing makes it easy to integrate in home or office.
    Easily manage your UPS from your PC (on USB models):
    Integrates automatically with Windows / MacOS / Linux power management for safe system shutdown.
    Analyse energy usage and manage UPS parameters with Eaton UPS Companion software.

    Peace of mind
    A leading manufacturer you can trust with decades of experience and high quality standards: CE-ertified by an external agency (TUV) according to latest international safety standards.
    Know you can depend on batteries round the clock:
    5E Gen2 batteries are permanently recharged (even when off).
    UPS can start without mains (cold start).
    Automatic battery test and battery replacement alarm.
    Ensure peace of mind thanks to a two-year warranty.
    Form Factor Tower
    Height 148
    Input frequency 50/60
    Input operation voltage (max) 240
    Input operation voltage (min) 220
    Model 5E1200UD
    Name UPS TOWER 5E 1200VA 660W/USB 5E1200UD EATON
    Noise level 25
    Operating temperature (T-T) 0 - 40
    Output operation voltage (max) 240
    Output operation voltage (min) 220
    Output power 660
    Output power capacity 1.2
    PictureUrl https://static.elko.cloud/ProductImages/0c5a79e4-6379-42d7-89da-070266972a94.Jpeg
    Power protection features Over voltage/Under voltage
    Power source type AC
    Product colour Black
    Summary Eaton 5E Gen2 1200 USB. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 660 W. AC outlet types: Type G (BS 1363), AC outlets quantity: 2 AC outlet(s). Form factor: Tower, Product colour: Black, Control type: Buttons. Compliance certificates: Low Voltage Directive (LVD), RoHS, WEEE, Certification: EN IEC 62040-1:2019; EN 62040-2:2006; IEC 62040-2: 2016, IEC 62040-3: 2021; CE; EAC; UKCA; Cm; Ukr. Width: 100 mm, Depth: 288 mm, Height: 148 mm
    Sustainability compliance Yes
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/0c5a79e4-6379-42d7-89da-070266972a94.Jpeg
    Unit Calculated Volume 0.03623
    Unit Calculated Weight 9.5
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    USB port Yes
    Vendor Homepage https://www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
    Weight 8500
    Width 100
