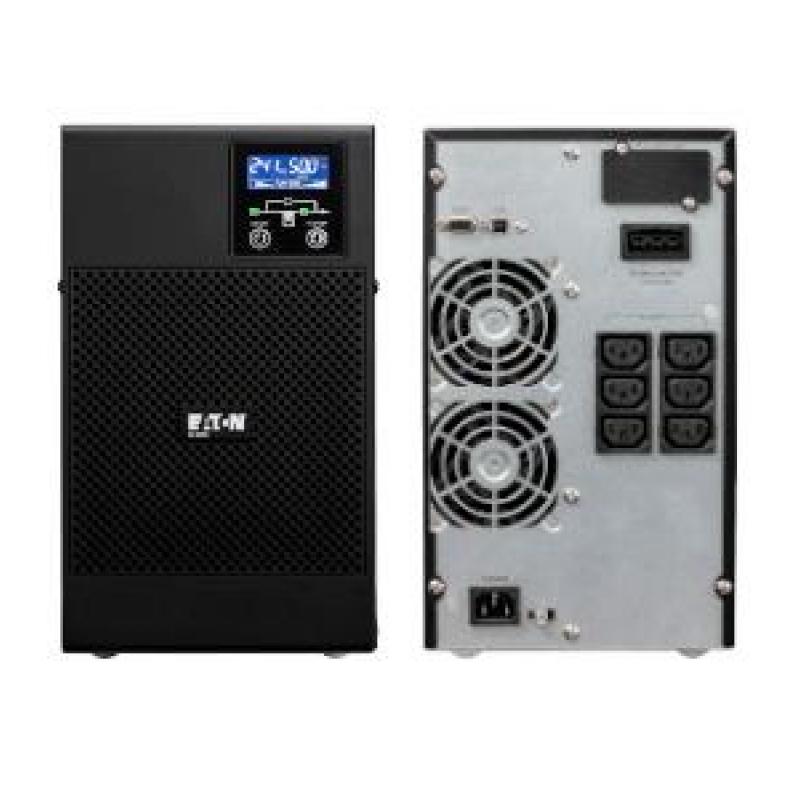

UPS TOWER 9E 2000VA 1600W/9E2000I EATON

UPS TOWER 9E 2000VA 1600W/9E2000I EATON
UPS TOWER 9E 2000VA 1600W/9E2000I EATON
  • UPS topology: Double-conversion (Online)
  • Output power: 1600
    • Врз основа на 0 коментари. - Напиши коментар
    50,320ден.
    • Достапност: Има залиха
    • Бренд: EATON
    • Шифра: 312828
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton 9E 2000I. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Form factor: Tower, Product colour: Black. Certification: IEC/EN 62040 -2, CE, CB report (TUV)
    • Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41&GUID=482418BF-1164-410A-AEB9-A0ED9FA7A642
    • Name: UPS TOWER 9E 2000VA 1600W/9E2000I EATON
    • Category Code: UPW
    • UPS topology: Double-conversion (Online)
    • Output power capacity: 2
    • Output power: 1600
    • Input operation voltage (min): 100
    • Input operation voltage (max): 300
    • Input frequency: 50/60
    • Output operation voltage (min): 208
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Efficiency: 91
    • Noise level: 40
    • AC outlet types: C13 coupler/C19 coupler
    • Power plug: C13 coupler
    • AC outlets quantity: 6
    • USB port: Yes
    • Serial interface: Yes
    • Serial interface type: RS-232
    • RS-232 ports: 1
    • Serial ports quantity: 1
    • Typical backup time at full load: 4
    • Typical backup time at half load: 12
    • Form factor: Tower
    • Product colour: Black
    • Operating temperature (T-T): 0 - 40
    • Safety: IEC/EN 62040-1
    • Certification: IEC/EN 62040 -2, CE, CB report (TUV)
    • Width: 330
    • Depth: 190
    • Height: 399
    • Weight: 22400
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.07093
    • Unit Calculated Weight: 24.5
    Specs
    AC outlet types C13 coupler/C19 coupler
    AC outlets quantity 6
    Category Code UPW
    Certification IEC/EN 62040 -2, CE, CB report (TUV)
    Depth 190
    Description

    The Eaton 9E UPS constantly monitors power conditions and regulates voltage and frequency thanks to the double conversion topology. Eaton 9E UPS can power more servers than most similar UPS because of a 0.8 power factor.

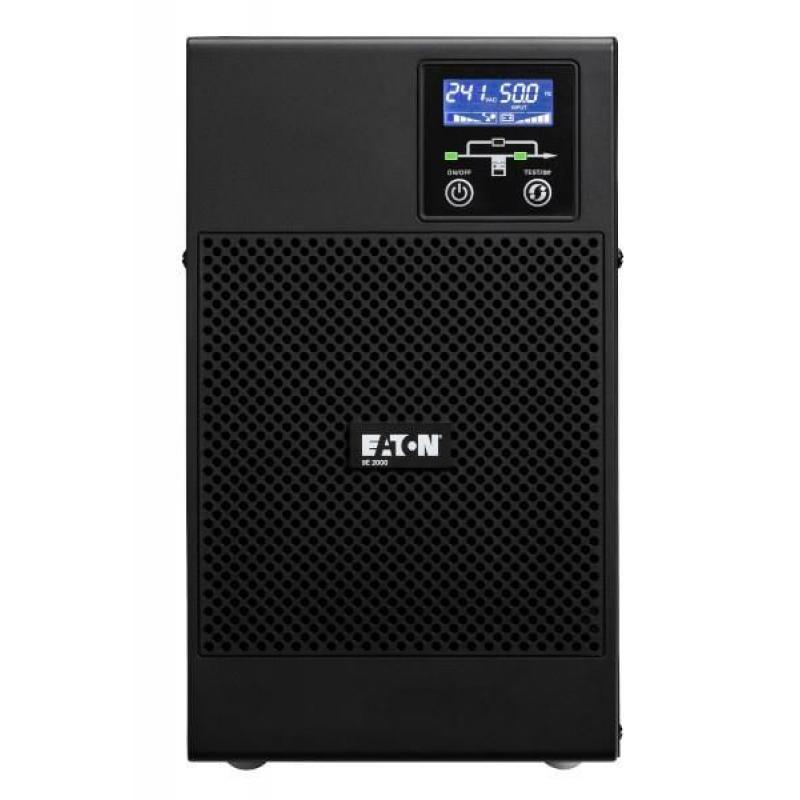

    • Get clear information on the UPS’ status and measurements (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface

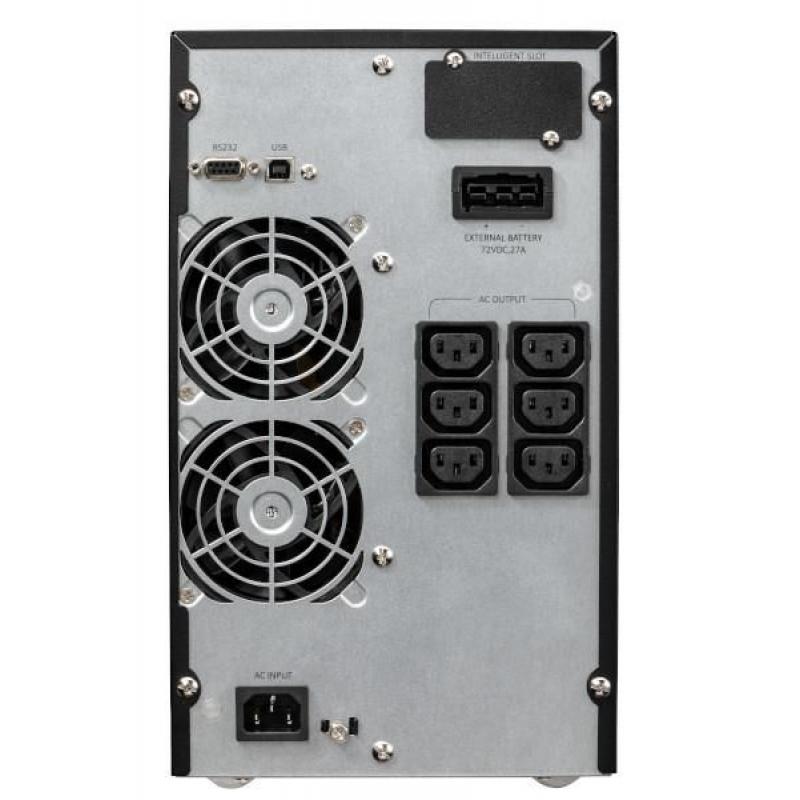

    • Easily communicate with the UPS through USB, RS232 serial or over the network with the optional network card (Network-MS). Relay cards or Modbus cards are also available
    • Integrate 9E into all software environments. The Eaton 9E is delivered with Eaton’s Intelligent Powerâ„¢ Software and is compatible with all major OS including advanced integration in VMware vCenter and Microsoft Hyper-V
    • Wide input voltage range will minimize the battery usage and help to extend battery lifetime
    • The internal bypass allows service continuity in case of an internal fault
    • Extend runtime as you like by adding up to 4 external battery modules (EBM) for 2kVA and above. For extra-long runtime, XL models with internal supercharger are also available at 3kVA
    Efficiency 91
    Form Factor Tower
    Height 399
    Input frequency 50/60
    Input operation voltage (max) 300
    Input operation voltage (min) 100
    Name UPS TOWER 9E 2000VA 1600W/9E2000I EATON
    Noise level 40
    Operating temperature (T-T) 0 - 40
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 208
    Output power 1600
    Output power capacity 2
    PictureUrl https://static.elko.cloud/ProductImages/a2114cf5-b19f-46aa-812d-4d3cd43ae92b.Jpeg
    Power plug C13 coupler
    Product colour Black
    RS-232 ports 1
    Safety IEC/EN 62040-1
    Serial interface Yes
    Serial interface type RS-232
    Serial ports quantity 1
    Summary Eaton 9E 2000I. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1600 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C13 coupler, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min. Form factor: Tower, Product colour: Black. Certification: IEC/EN 62040 -2, CE, CB report (TUV)
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/a2114cf5-b19f-46aa-812d-4d3cd43ae92b.Jpeg
    Typical backup time at full load 4
    Typical backup time at half load 12
    Unit Calculated Volume 0.07093
    Unit Calculated Weight 24.5
    Units per Shipping Box 1
    UPS topology Double-conversion (Online)
    USB port Yes
    Vendor Homepage https://powerquality.eaton.com/Products-services/Backup-Power-UPS/9E-1-3kVA.aspx?cx=41&GUID=482418BF-1164-410A-AEB9-A0ED9FA7A642
    Weight 22400
    Width 330
