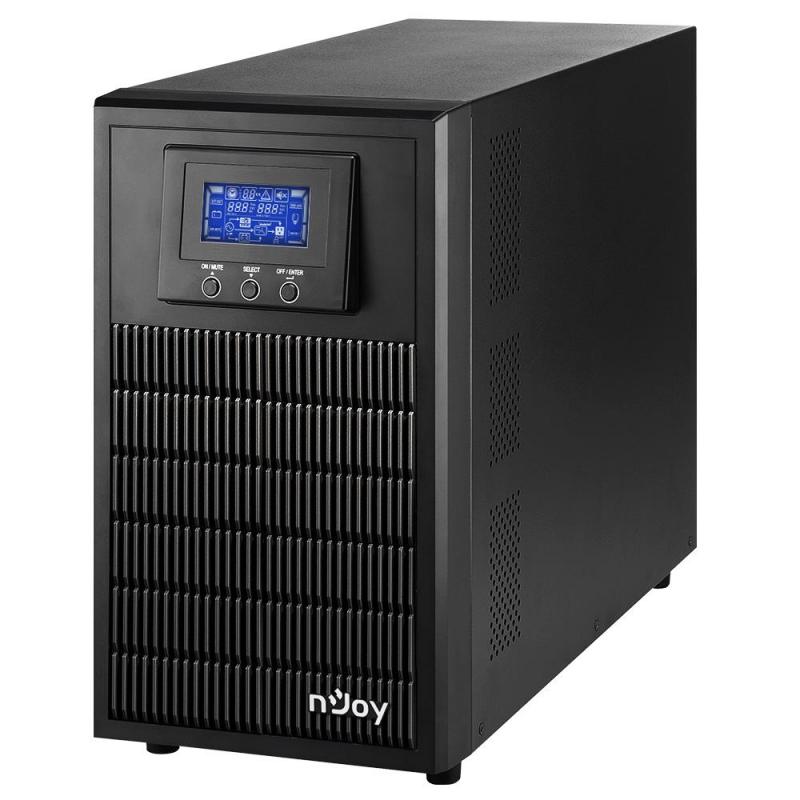

UPS TOWER ATEN PRO 3000 3KVA/PWUP-OL300AP-AZ01B NJOY

ATEN PRO SERIES

THE NETWORK SENTINEL

Aten Pro Series is an on-line, commercial tower UPS that covers a lot of market segments and it was created especially for business electronic equipment. Aten Pro was built as a high performance UPS with multiple technical features required in its segment. The 1 - 3 kVA tower units are single-phase, 0.9 power factor with high efficiency output up to 95% dedicated to commercial power applications. This UPS series is recommended for network equipment, PCs (that can be found in settings like offices, schools, educational labs, retail counters), small servers, industrial setups.

Protective coating

Heavy-duty environments like workshops, hangars, small factories etc., all present a level of contaminants like dust, humidity, corrosive chemicals that exacerbate the risk of running down the UPS electronic components faster and it will fail in protecting critical PC stations and equipment. Aten Pro can be successful in such environments because it has a protective coating applied on internal components in order to shield them from contaminants and damage.

On-line topology for full equipment compatibility

Ideal for commercial applications, from network equipment to entertainment systems, Aten Pro Series is constructed with high performance on-line topology and pure sine-wave output. This high-availability design, can provide optimal line clarity, without harmonic distortion and electrical noise and can correct operation and protection for longer equipment life. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

High efficiency up to 95%

Aten Pro Series can be operated in a high-efficiency operating eco-mode. Double conversion operations are bypassed to enable up to 95% UPS efficiency. Not only does this reduce power use and cost, but also the cooling required as units create lower heat, critical to longer life of key components such as internal batteries. In Battery mode Aten can operate at 88% efficiency.

Tower design

Aten Pro’s design benefits from a compact footprint and ergonomic design: full front access to program its options and user friendly LCD interface, simple to comprehend and monitor.

NAS compatibility with our UPS

This UPS has a communication interface compatible with popular NAS systems through USB HID. The main benefit of NAS-UPS integration is that the UPS prevents data loss and corruption by allowing the NAS devices to shut down properly during power interruption.

Reliability and performance

The nJoy batteries used in Aten Pro UPS units are designed with lead-acid technology, ensuring superior quality. They are compact in size yet have high power density, meeting international standards and providing reliable performance. These internal batteries have a long lifespan and deliver consistent backup power.

High-rate batteries for heavy loads

The high energy density of the nJoy batteries (HR09122F) inside the UPS unit will provide the perfect fit with large load electrical equipment from critical environments. This type of battery will endure high rate discharge for a shorter amount of time, in contrast with regular batteries that are designed to discharge with minimal load at a much slower rate.

2 years warranty

As part of our commitment, we offer an exclusive 24 months warranty for Aten Pro Series batteries, which are developed to provide 20% more backup time than ordinary batteries. By offering a 24-month warranty for Aten Pro internal battery, nJoy contributes to reducing the total cost of the UPS by saving the cost on the replacement.

Information at-a-glance on screen

A graphical LCD with coloured backlight provides at-a-glance display at the UPS status. The LCD also provides diagnostic and log information that may be helpful to identify power issues before they translate into equipment damage.

SNMP/WEB card option

Intelligent port for an optional smart card allows remote software management. UPS monitoring on-site applications continually watch for warning signs of future trouble, such as deteriorating performance or an overheating battery, and send real-time notificati on when potential issues develop. The SNMP card is compatible with a dedicated sensor to monitor environmental factors.

Save time with convenience

Network manageable via serial, USB or Ethernet. Includes software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Zero Transfer Time

Switching the input from grid power to the inverter is done instantly without any outages and thus your work and equipment are unaffected.

Generator compatible

Aten Pro will adjust both frequency and voltage fluctuations when connected to a generator and will provide clean and reliable power uninterrupted.

• Pure Sine Wave Output
• Zero Transfer Time
• ECO Mode for Energy Saving
