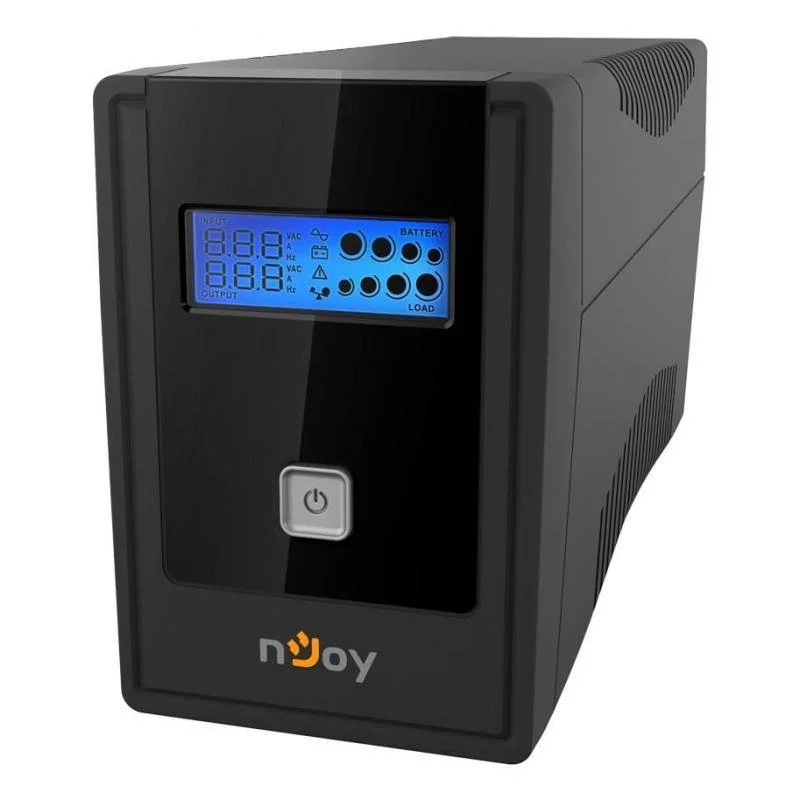

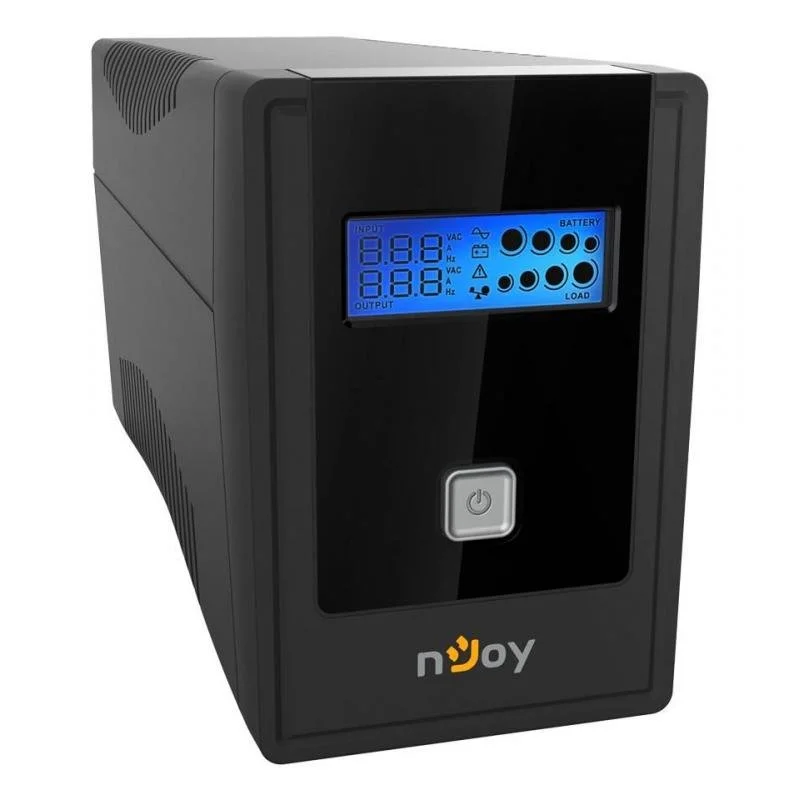

UPS TOWER CADU 850 800VA/UPCMTLS685TCAAZ01B NJOY

UPS TOWER CADU 850 800VA/UPCMTLS685TCAAZ01B NJOY
UPS TOWER CADU 850 800VA/UPCMTLS685TCAAZ01B NJOY
  • UPS topology: Line-Interactive
  • Output power: 480
  • Response time: 6
    • Врз основа на 0 коментари. - Напиши коментар
    4,728ден.
    • Достапност: Има залиха
    • Бренд: NJOY
    • Шифра: 426451
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: nJoy Cadu 850. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 2 AC outlet(s). Typical backup time at half load: 2.53 min, Battery recharge time: 3 h, Replacement battery cartridge: GP09122F. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS
    • Vendor Homepage: https://www.njoy.global/product/cadu-1000/UPCMTLS610HCAAZ01B
    • Name: UPS TOWER CADU 850 800VA/UPCMTLS685TCAAZ01B NJOY
    • Category Code: UPW
    • Model: Cadu 850
    • UPS topology: Line-Interactive
    • Output power capacity: 0.8
    • Output power: 480
    • Waveform: Sine
    • Input operation voltage (min): 176
    • Input operation voltage (max): 280
    • Input frequency: 50/60
    • Output operation voltage (max): 230
    • Output voltage regulation: -10 - 10
    • Automatic Voltage Regulation (AVR): Yes
    • Surge energy rating: 475
    • Response time: 6
    • Number of input phases: 1
    • Number of output phases: 1
    • Output power factor: 0.6
    • Noise level: 40
    • Surge protection: Yes
    • Surge protection features: Network/Telephone
    • Power protection features: Battery discharge/Over voltage/Overcharge/Under voltage
    • Auto-restart: Yes

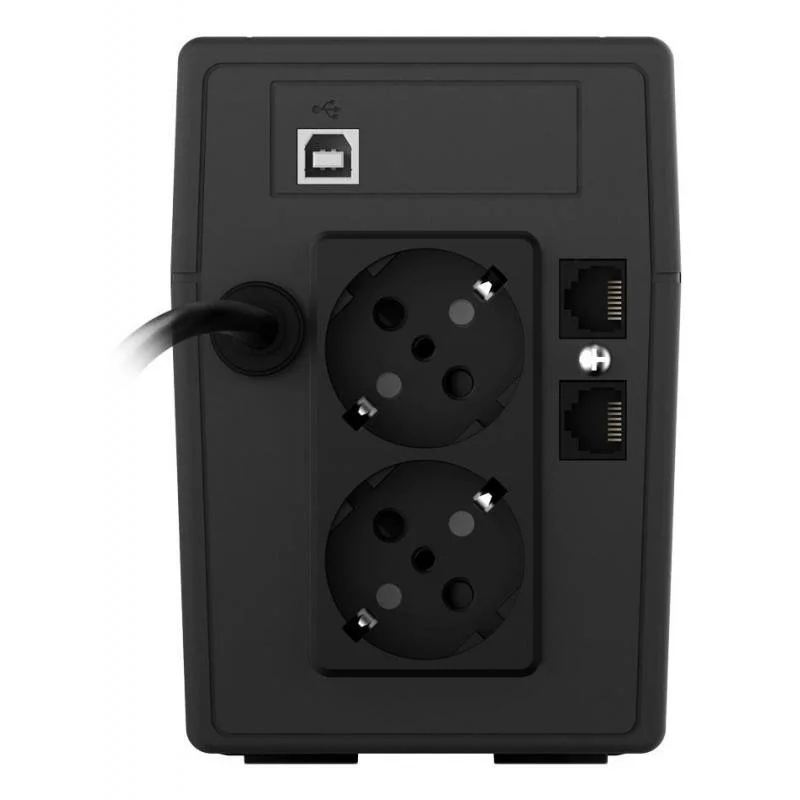

    • AC outlet types: Type F
    • Power plug: Type F
    • AC outlets quantity: 2
    • USB port: Yes
    • USB 2.0 ports quantity: 1
    • USB port type: USB Type-B
    • Modem (RJ-11) ports: 1
    • Ethernet LAN (RJ-45) ports: 1
    • Cabling technology: 10/100/1000Base-T(X)
    • Number of batteries supported: 1
    • Typical backup time at half load: 2.53
    • Battery recharge time: 3
    • Cold start: Yes
    • Replacement battery cartridge: GP09122F
    • Form factor: Mini Tower
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Operating temperature (T-T): 0 - 40
    • Operating relative humidity (H-H): 0 - 90
    • Batteries included: Yes
    • Compliance certificates: CE/RoHS
    • Width: 100
    • Depth: 287
    • Height: 142
    • Weight: 5000
    • Package width: 143
    • Package depth: 347
    • Package height: 223
    • Package weight: 5300
    • Package type: Box
    • Master (outer) case net weight: 21200
    • Warranty period: 2
    • Master (outer) case width: 350
    • Master (outer) case length: 600
    • Master (outer) case height: 250
    • Master (outer) case gross weight: 22200
    • Products per master (outer) case: 4
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.0119
    • Unit Calculated Weight: 6
    Specs
    AC outlet types Type F
    AC outlets quantity 2
    Auto-restart Yes
    Automatic Voltage Regulation (AVR) Yes
    Batteries included Yes
    Battery recharge time 3
    Cabling technology 10/100/1000Base-T(X)
    Category Code UPW
    Cold start Yes
    Compliance certificates CE/RoHS
    Depth 287
    Description

    CADU SERIES
    INTELLIGENT POWER PROVIDER
    We know that our customers don’t want to take any chances with their power systems. That’s why our approach is geared towards offering safeguard products perfectly fitted with the commercial environment.

    Our uninterruptible power system (UPS) Cadu Series was specially designed and constructed for a wide range of commercial applications.

    Accurate Output
    Cadu Series offers solid engineered technical characteristics for small and medium power equipment. Cadu offers 230V +/-10% (3% tolerance accepted), the output being 33% more accurate than our direct competition ensuring that the IT equipment is receiving reliable electricity at all times.

    Ultra Fast Charger
    Cadu Series has a built-in Ultra Fast Charger that is able to charge its batteries in normal circumstances in 3 hours. This is 25% faster than any similar product from any similar range available on the market right now.

    HID USB - Friendly power management
    For UPS management, users can benefit from the HID USB feature that is present on all nJoy Cadu units. HID USB is the latest technology that will let you monitor, without additional software, simple and efficient crucial parameters for the UPS. You will have now the choice to use Windows power management features through Human Interface Device protocol.

    1Gb/s LAN - Protected!
    1Gb/s LAN protection port secures your Ethernet network from power anomalies without decreasing the speed of the connection.

    More back-up time
    Increased back-up time due to bigger batteries that provide up to 20% more power than average batteries.

    UPS Fan logic
    Cadu 650/850/1000: No fan
    Cadu 1500/2000:
    Fan ON in Line mode, if load>80%
    Fan ON in AVR mode and Battery mode

    Truly silent. No distress.
    While operating, Cadu can have several alarms going off during power loss, overload and faults. To avoid the alarms sounding it can be deactivated using the software management included and by shortly double press the ON/OFF button.

    LCD light dimming at 20%
    If you are using Cadu UPS at home or in a SOHO environment to prevent electrical damage and provide back-up time, you need features that can accommodate that specific environment. In low lighting and at night the big backlit LCD on Cadu can be bothersome at 100% brightness, hence we implemented a new feature: the backlighting will dim to 20% after 20 seconds of idle, in normal condition. In battery mode, faults and alarms the LCD will return to 100% lighting intensity.

    Great fundamentals
    - Auto-Restart while AC is recovering
    - Mute all alarms by shortly double press the ON/OFF button
    - Battery Replacement Alarm
    - Excellent microprocessor control guarantees high reliability
    - Boost and buck AVR for voltage stabilization
    - Off-Mode Charging
    - Cold start function

    NAS compatibility with our UPS
    This UPS has a communication interface compatible with popular NAS systems through USB HID. The main benefit of NAS-UPS integration is that the UPS prevents data loss and corruption by allowing the NAS devices to shut down properly during power interruption.

    • HID USB port
    • Ultra fast charger
    • Extended back-up time
    • Gbit LAN protection
    • HID USB communication port
    • Auto-Restart while AC is recovering
    • Battery Replacement Alarm
    • Boost and buck AVR for voltage stabilization
    • Off-Mode Charging
    • Cold start function
    • NAS Synology Compatible
    Display type LCD
    Ethernet LAN (RJ-45) ports 1
    Form Factor Mini Tower
    Height 142
    Input frequency 50/60
    Input operation voltage (max) 280
    Input operation voltage (min) 176
    LED indicators Yes
    Master (outer) case gross weight 22200
    Master (outer) case height 250
    Master (outer) case length 600
    Master (outer) case net weight 21200
    Master (outer) case width 350
    Model Cadu 850
    Modem (RJ-11) ports 1
    Name UPS TOWER CADU 850 800VA/UPCMTLS685TCAAZ01B NJOY
    Noise level 40
    Number of batteries supported 1
    Number of input phases 1
    Number of output phases 1
    Operating relative humidity (H-H) 0 - 90
    Operating temperature (T-T) 0 - 40
    Output operation voltage (max) 230
    Output power 480
    Output power capacity 0.8
    Output power factor 0.6
    Output voltage regulation -10 - 10
    Package depth 347
    Package height 223
    Package type Box
    Package weight 5300
    Package width 143
    PictureUrl https://static.elko.cloud/ProductImages/da4163b3-d1a1-4b42-9d73-5ce6290d2def.Jpeg
    Power plug Type F
    Power protection features Battery discharge/Over voltage/Overcharge/Under voltage
    Product colour Black
    Products per master (outer) case 4
    Replacement battery cartridge GP09122F
    Response time 6
    Summary nJoy Cadu 850. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 2 AC outlet(s). Typical backup time at half load: 2.53 min, Battery recharge time: 3 h, Replacement battery cartridge: GP09122F. Form factor: Mini Tower, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS
    Surge energy rating 475
    Surge protection Yes
    Surge protection features Network/Telephone
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/da4163b3-d1a1-4b42-9d73-5ce6290d2def.Jpeg
    Typical backup time at half load 2.53
    Unit Calculated Volume 0.0119
    Unit Calculated Weight 6
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    USB port Yes
    USB port type USB Type-B
    Vendor Homepage https://www.njoy.global/product/cadu-1000/UPCMTLS610HCAAZ01B
    Warranty period 2
    Waveform Sine
    Weight 5000
    Width 100
