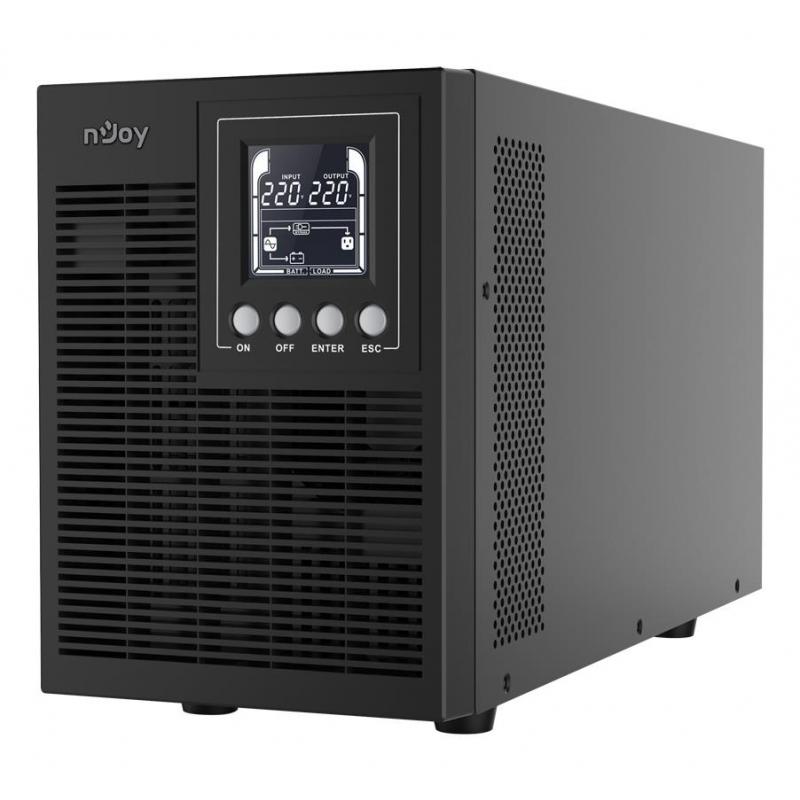

UPS TOWER ECHO PRO 2000 2KVA/UPOL-OL200EP-CG01B NJOY

ECHO PRO SERIES
PROTECT THE INNOVATION
Echo Pro series is an excellent choice for commercial settings offering every crucial feature needed in this case, such as on-line double conversion, HID USB, emergency power off (EPO), additional SNMP card and more. This UPS series has 3 power options, each one providing guaranteed protection for business PCs, office lighting, banking applications and any other enterprise environments. Echo Pro produces less than 40dB of noise while functioning, which is comparable with the surrounding noise in an urban setting.

On-line Double Conversion Technology
This technology on UPS systems provides the connected equipment with the highest level of protection by isolating it from raw utility power. The system works by converting power from AC to DC and then back to AC. Echo Pro provides power with zero transfer time to the battery, making it ideal for sensitive equipment and for any facility with mission-critical hardware connected to poor power conditions.

Pure sine wave output
Many critical and sensitive electronic components used in commercial applications rely on clean power, in order to deliver the best performance. For these a non-sine waveform can cause a shutdown, defeating the whole purpose for having a UPS. With Echo Pro this concern will be invalid because it feeds the equipment high quality and clean power.

Efficiency rate up to 96%
Echo Pro uses up to 96% (in Eco mode) of the electrical input to power the connected loads, with a very small percentage of power waste. Higher efficiency translates in lower losses of electricity as heat, as a result Echo Pro will have an increased service life. The efficiency rate on batteries is 85% and necessary for mission-critical equipment so Echo Pro is the best choice for companies looking to achieve an optimal blend of both efficiency and protection.

Tower design
Echo Pro’s tower design needs minimal installation handling, can be placed in almost any environment and fits a great deal of devices.

Useful display
For any electronic device at the office connected to the UPS, a big LCD screen is vital because it offers access and control over the functioning process and in case of emergency you can take the right action.

Additional SNMP/WEB card
Can be an inspired add-on because it helps to monitor and manage the connected devices over networks (LAN or Internet). Remote UPS monitoring applications continually watch for warning signs of future trouble, such as deteriorating performance or an overheating battery, and send real-time notification when potential issues develop. That enables technicians to make repairs before serious breakdowns have a chance to occur.

Software management at your service
Have remote access to Echo Pro by using the special software included. This will give all the necessary information about the UPS and will also give the option to safely shutdown the computer systems in case of a power failure. Communication software can not only provide real-time notification of UPS status, but also lets you assign automatic actions to perform in case of a power event. This is useful if the system operates continuously without users being present to manually shutdown affected equipment.

HID USB and RS232 feature
The HID USB feature helps the user to observe and manage crucial functioning parameters, under Windows environment, in case the mains is off (UPS is shown as a battery). RS232 is there to monitor and manage the UPS in industrial environments where USB communication is not possible.

NAS compatibility with our UPS
This UPS has a communication interface compatible with popular NAS systems through USB HID. The main benefit of NAS-UPS integration is that the UPS prevents data loss and corruption by allowing the NAS devices to shut down properly during power interruption.

No distractions
Echo Pro produces minimal noise, much less than the average product in this category. The UPS produces less than 40 dB (35 dB measured at 1 meter away from the UPS). Echo Pro is equipped with a fan speed controller in 3 steps that adjusts its rotation according to the load of the UPS.

Fan behaviour in UPS load
- <60% - Low speed
- >60% - Medium speed
- Faults - High speed

Motor start support up to 120%
Echo Pro supports motors that need increased W capacity to account for the high power inrush that occurs when the motor is starting up. Echo Pro can offer up to 120% of its top rated power available to sustain that sharp power increase without any flaws.

Generator compatible
Echo Pro will adjust both frequency and voltage during fluctuations when connected to a generator and will provide clean and reliable power uninterrupted.

• HID USB port
• Low noise level
• LCD Display
• Auto-restart
• Auto-charge
• Automatic Bypass
• Generator Compatible
• NAS Synology Compatible
