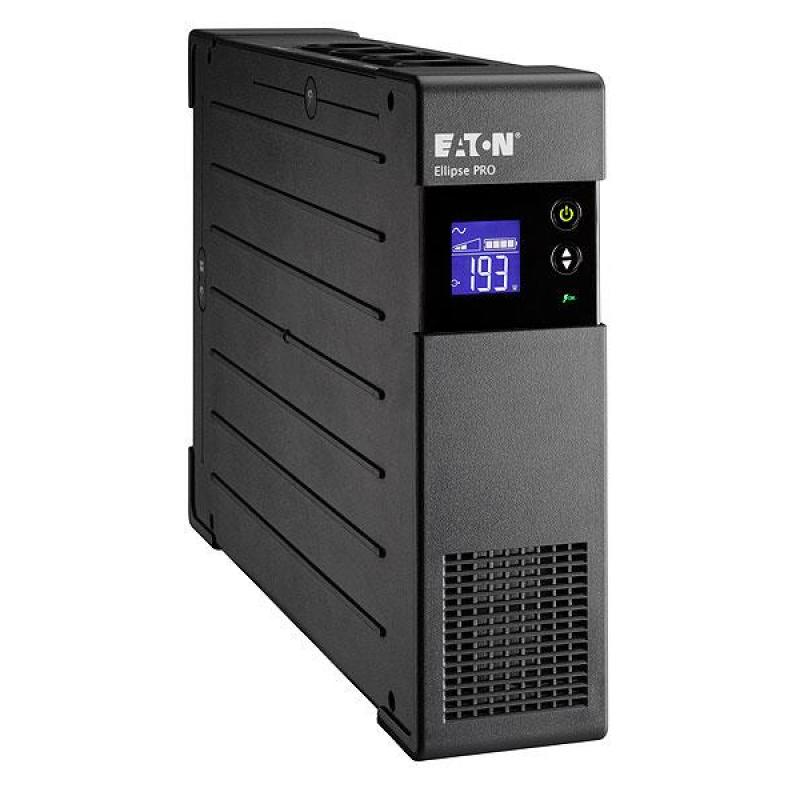

UPS TOWER/RACK EL PRO 1600VA/1000W ELP1600IEC EATON

UPS TOWER/RACK EL PRO 1600VA/1000W ELP1600IEC EATON
Нема на залиха
UPS TOWER/RACK EL PRO 1600VA/1000W ELP1600IEC EATON
  • UPS topology: Line-Interactive
  • Output power: 1000
    • Врз основа на 0 коментари. - Напиши коментар
    27,753ден.
    • Достапност: Нема на залиха
    • Бренд: EATON
    • Шифра: 240567
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Eaton Ellipse PRO 1600 IEC. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    • Vendor Homepage: https://powerquality.eaton.com/Products-services/Backup-Power-UPS/Ellipse-PRO.aspx?cx=88
    • Name: UPS TOWER/RACK EL PRO 1600VA/1000W ELP1600IEC EATON
    • Category Code: UPW
    • UPS topology: Line-Interactive
    • Output power capacity: 1.6
    • Output power: 1000
    • Input operation voltage (min): 150
    • Input operation voltage (max): 285
    • Input frequency: 50/60
    • Output operation voltage (min): 220
    • Output operation voltage (max): 240
    • Output frequency: 50
    • Emergency Power Off (EPO): Yes
    • Surge protection: Yes
    • Surge protection features: Fax/Modem/Network/Telephone
    • AC outlet types: C13 coupler
    • Power plug: C14 coupler
    • AC outlets quantity: 8
    • USB 2.0 ports quantity: 1
    • Modem (RJ-11) ports: 1
    • Ethernet LAN (RJ-45) ports: 1
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at half load: 9
    • Automatic battery test: Yes
    • Cold start: Yes
    • Form factor: Tower
    • Rack capacity: 2U
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    • Width: 82
    • Depth: 390
    • Height: 275
    • Weight: 11300
    • Harmonized System (HS) code: 85078000
    • Nominal input voltage: 230
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.02195
    • Unit Calculated Weight: 12
    Specs
    AC outlet types C13 coupler
    AC outlets quantity 8
    Automatic battery test Yes
    Battery technology Sealed Lead Acid (VRLA)
    Category Code UPW
    Cold start Yes
    Depth 390
    Description

    The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.

    - LCD display for real-time status and measurements.
    - Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
    - EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
    - Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
    - Up to 8 outlets to connect your PC & peripherals.
    - Convenient extra-flat design for easy installation in any office environment.
    - USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
    - Protects data connections such as Ethernet, internet and telephone lines.
    Display type LCD
    Emergency Power Off (EPO) Yes
    Ethernet LAN (RJ-45) ports 1
    Form Factor Tower
    Harmonized System (HS) code 85078000
    Height 275
    Input frequency 50/60
    Input operation voltage (max) 285
    Input operation voltage (min) 150
    LED indicators Yes
    Modem (RJ-11) ports 1
    Name UPS TOWER/RACK EL PRO 1600VA/1000W ELP1600IEC EATON
    Nominal input voltage 230
    Output frequency 50
    Output operation voltage (max) 240
    Output operation voltage (min) 220
    Output power 1000
    Output power capacity 1.6
    PictureUrl https://static.elko.cloud/ProductImages/3f1f38f1-4fa9-4158-bad7-74dd3d4df0f3.Jpeg
    Power plug C14 coupler
    Product colour Black
    Rack capacity 2U
    Safety IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Summary Eaton Ellipse PRO 1600 IEC. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
    Surge protection Yes
    Surge protection features Fax/Modem/Network/Telephone
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/3f1f38f1-4fa9-4158-bad7-74dd3d4df0f3.Jpeg
    Typical backup time at half load 9
    Unit Calculated Volume 0.02195
    Unit Calculated Weight 12
    Units per Shipping Box 1
    UPS topology Line-Interactive
    USB 2.0 ports quantity 1
    Vendor Homepage https://powerquality.eaton.com/Products-services/Backup-Power-UPS/Ellipse-PRO.aspx?cx=88
    Weight 11300
    Width 82
