UPS/AVR ERA PLUS 600VA/FGCERAPL602SCH TECNOWARE

UPS/AVR ERA PLUS 600VA/FGCERAPL602SCH TECNOWARE
Нема на залиха
UPS/AVR ERA PLUS 600VA/FGCERAPL602SCH TECNOWARE
  • UPS topology: Line-Interactive
  • Output power: 420
  • Response time: 2
  • Battery capacity: 7
  • Cooling type: Passive
    • Врз основа на 0 коментари. - Напиши коментар
    3,862ден.
    • Достапност: Нема на залиха
    • Бренд: TECNOWARE
    • Шифра: 420760
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Tecnoware FGCERAPL602SCH. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 420 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 2 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cooling type: Passive. Certification: CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification...
    • Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Famiglia/185
    • Name: UPS/AVR ERA PLUS 600VA/FGCERAPL602SCH TECNOWARE
    • Category Code: UPW
    • Model: FGCERAPL602SCH
    • UPS topology: Line-Interactive
    • Output power capacity: 0.6
    • Output power: 420
    • Waveform: Sine
    • Input operation voltage (max): 230
    • Input frequency: 50/60
    • Output operation voltage (max): 230
    • Output frequency: 50/60
    • Output voltage regulation: -5 - 5
    • Automatic Voltage Regulation (AVR): Yes
    • Response time: 2
    • Number of input phases: 1
    • Number of output phases: 1
    • AC outlet types: Type F
    • Power plug: Type F
    • AC outlets quantity: 2
    • Number of type F outputs: 2
    • Battery technology: Sealed Lead Acid (VRLA)
    • Battery capacity: 7
    • Battery voltage: 12
    • Typical backup time at half load: 40
    • Form factor: Compact
    • Cooling type: Passive
    • Product colour: Black
    • LED indicators: Yes
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 55
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 3000
    • Certification: CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
    • Width: 101
    • Depth: 279
    • Height: 142
    • Weight: 3700
    • Package width: 180
    • Package depth: 220
    • Package height: 340
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.009856
    • Unit Calculated Weight: 4
    Specs
    AC outlet types Type F
    AC outlets quantity 2
    Automatic Voltage Regulation (AVR) Yes
    Battery capacity 7
    Battery technology Sealed Lead Acid (VRLA)
    Battery voltage 12
    Category Code UPW
    Certification CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification IEC EN 62040-3)
    Cooling type Passive
    Depth 279
    Description

    UPS ERA PLUS 600 SCHUKO TOGETHER ON

    Uninterruptible power supply UPS ERA PLUS 600 TOGETHER ON, Schuko outputs, Autonomy up to 15 min with 1 PC or 40 min with Modem Router. AVR stabilization.

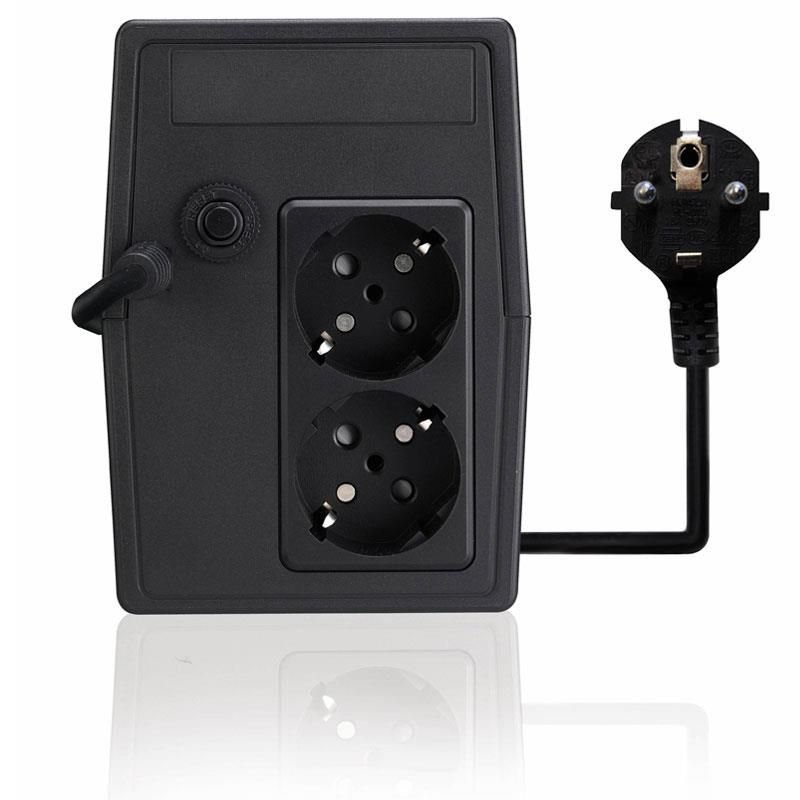

    Uninterruptible power supply UPS ERA PLUS 600, 12V 7Ah battery, Has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected by Black-Out, overvoltage and undervoltage. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 3.7 kg. Equipped with On-Off button with integrated multifunction LED and audible alarm for signaling the operating status. Designed to protect PC Office, DVR for video surveillance, ADSL-Fibre Modem/Router, Cash Register. Totally silent.

    • Complete protection against blackouts and sudden changes in voltage (overvoltage and undervoltage)
    • Recommended for Personal Computers, DVR/NVR and video surveillance systems, ADSL/fibre modems, switches/routers, cash registers
    • Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
    • AVR voltage stabilization electronic circuit
    • n 2 Italia/Schuko outlet sockets and n 1 schuko input cable
    • Output sockets protected against blackouts
    • Output sockets protected against overvoltages
    • Multifunction LED and on-off button
    Form Factor Compact
    Height 142
    Input frequency 50/60
    Input operation voltage (max) 230
    International Protection (IP) code IP20
    LED indicators Yes
    Model FGCERAPL602SCH
    Name UPS/AVR ERA PLUS 600VA/FGCERAPL602SCH TECNOWARE
    Number of input phases 1
    Number of output phases 1
    Number of type F outputs 2
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 55
    Output frequency 50/60
    Output operation voltage (max) 230
    Output power 420
    Output power capacity 0.6
    Output voltage regulation -5 - 5
    Package depth 220
    Package height 340
    Package width 180
    PictureUrl https://static.elko.cloud/ProductImages/18a2e62d-779b-4a84-a9e4-b6510b8672ad.Jpeg
    Power plug Type F
    Product colour Black
    Response time 2
    Summary Tecnoware FGCERAPL602SCH. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 420 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 2 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cooling type: Passive. Certification: CE (Standards: Low Voltage Directive IEC EN 62040-1; EMC Directive IEC EN 62040-2; classification...
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/18a2e62d-779b-4a84-a9e4-b6510b8672ad.Jpeg
    Typical backup time at half load 40
    Unit Calculated Volume 0.009856
    Unit Calculated Weight 4
    Units per Shipping Box 1
    UPS topology Line-Interactive
    Vendor Homepage https://www.tecnoware.com/en-US/Dettaglio/Famiglia/185
    Waveform Sine
    Weight 3700
    Width 101
