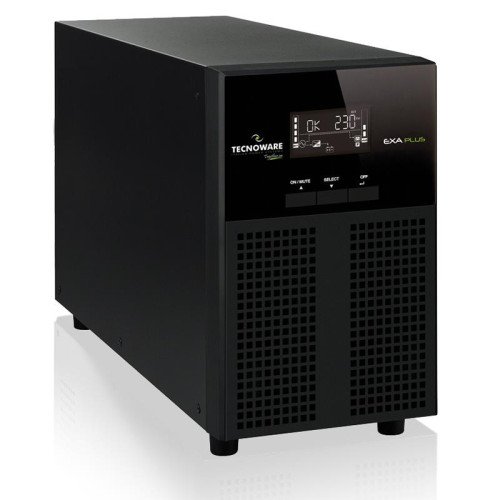

UPS/AVR EXA PLUS 3000VA/FGCEXAPL3002IEC TECNOWARE

UPS/AVR EXA PLUS 3000VA/FGCEXAPL3002IEC TECNOWARE
UPS/AVR EXA PLUS 3000VA/FGCEXAPL3002IEC TECNOWARE
  • UPS topology: Line-Interactive
  • Output power: 2.1
  • Response time: 2
    • Врз основа на 0 коментари. - Напиши коментар
    47,627ден.
    • Достапност: Има залиха
    • Бренд: TECNOWARE
    • Шифра: 371546
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Tecnoware UPS EXA PLUS 3000. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2.1 W. AC outlet types: C13 coupler, C19 coupler. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Product colour: Black, Display type: LCD, International Protection (IP) code: IP20. Certification: CE
    • Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/622
    • Name: UPS/AVR EXA PLUS 3000VA/FGCEXAPL3002IEC TECNOWARE
    • Category Code: UPW
    • Model: FGCEXAPL3002IEC
    • UPS topology: Line-Interactive
    • Output power capacity: 3
    • Output power: 2.1
    • Waveform: Sine
    • Input operation voltage (min): 162
    • Input operation voltage (max): 290
    • Input frequency: 50/60
    • Output operation voltage (min): 208
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Output voltage regulation: 1.5
    • Automatic Voltage Regulation (AVR): Yes
    • Response time: 2
    • Number of input phases: 1
    • Number of output phases: 1
    • Power factor: 0.7
    • Noise level: 45
    • AC outlet types: C13 coupler/C19 coupler
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at full load: 10
    • Built-in fan: Yes
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 55
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 3000
    • Certification: CE
    • Width: 145
    • Depth: 455
    • Height: 220
    • Weight: 19700
    • Package width: 230
    • Package depth: 540
    • Package height: 325
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.04277
    • Unit Calculated Weight: 20
    Specs
    AC outlet types C13 coupler/C19 coupler
    Automatic Voltage Regulation (AVR) Yes
    Battery technology Sealed Lead Acid (VRLA)
    Built-in fan Yes
    Category Code UPW
    Certification CE
    Depth 455
    Description

    UPS EXA PLUS 3.000 - Power 3.000 VA PF 0.7. Line Interactive Plus Sinusoidal technology, Input / output 230 / 230Vac, 50 / 60Hz, 8 IEC C13 sockets, dimensions 14.5x22x45.5 cm, weight 19.7 Kg, autonomy 10-30 min. Multifunction graphic LCD display with Intelligent Backlighting System, EPO connector USB and RS232 communication ports for UPS control and on / off programming using the free TecnoManager software. SNMP or Dry Contact card (optional).

    • Ideal for installation in quiet environments (the fan works only in Battery mode or when the AVR is active
    • Complete protection from black out, voltage surges (overvoltages and undervoltages), lightning (with surge arrester upstream), variations frequency, surge, harmonics, voltage distortions
    • Recommended for Workstation, PC Game, Personal Computer, Server, Local Area Networks (LAN)
    • Intelligent slot for SNMP or Dry Contact card
    • Line Interactive Plus technology Sinusoidal
    • AVR voltage stabilization electronic circuit
    • Battery recharging system managed by microprocessor
    Display type LCD
    Height 220
    Input frequency 50/60
    Input operation voltage (max) 290
    Input operation voltage (min) 162
    International Protection (IP) code IP20
    LED indicators Yes
    Model FGCEXAPL3002IEC
    Name UPS/AVR EXA PLUS 3000VA/FGCEXAPL3002IEC TECNOWARE
    Noise level 45
    Number of input phases 1
    Number of output phases 1
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 55
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 208
    Output power 2.1
    Output power capacity 3
    Output voltage regulation 1.5
    Package depth 540
    Package height 325
    Package width 230
    PictureUrl https://static.elko.cloud/ProductImages/5411c51a-2963-42f3-abe5-6ab425c64bbf.Jpeg
    Power factor 0.7
    Product colour Black
    Response time 2
    Summary Tecnoware UPS EXA PLUS 3000. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2.1 W. AC outlet types: C13 coupler, C19 coupler. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Product colour: Black, Display type: LCD, International Protection (IP) code: IP20. Certification: CE
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/5411c51a-2963-42f3-abe5-6ab425c64bbf.Jpeg
    Typical backup time at full load 10
    Unit Calculated Volume 0.04277
    Unit Calculated Weight 20
    Units per Shipping Box 1
    UPS topology Line-Interactive
    Vendor Homepage https://www.tecnoware.com/en-US/Dettaglio/Articolo/622
    Waveform Sine
    Weight 19700
    Width 145
