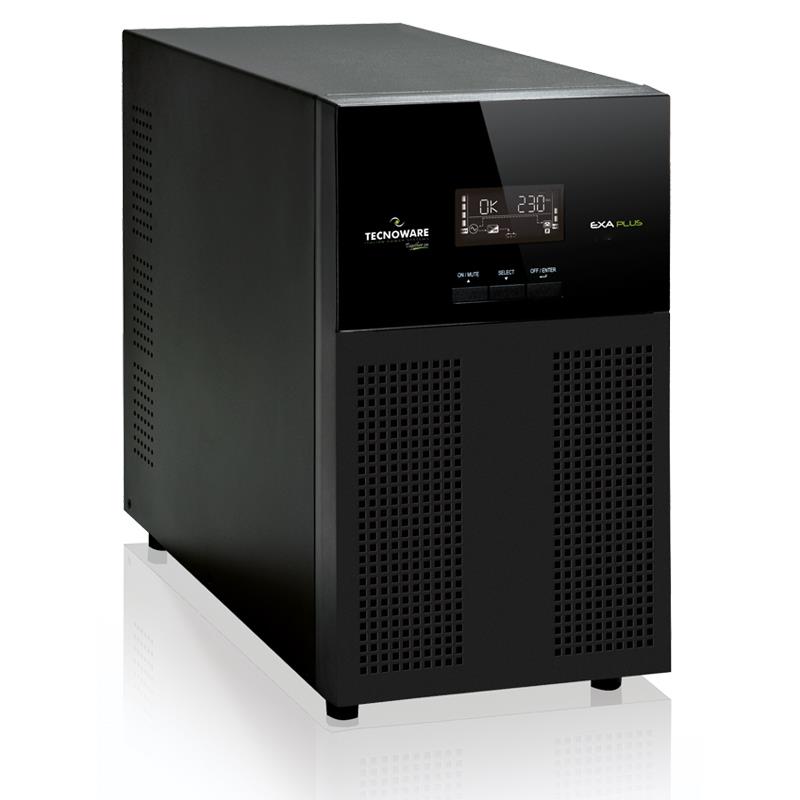

UPS/AVR EXA PLUS 4500VA/FGCEXAPL4502IEC TECNOWARE

UPS/AVR EXA PLUS 4500VA/FGCEXAPL4502IEC TECNOWARE
UPS/AVR EXA PLUS 4500VA/FGCEXAPL4502IEC TECNOWARE
  • UPS topology: Line-Interactive
  • Output power: 3.15
  • Response time: 2
    • Врз основа на 0 коментари. - Напиши коментар
    59,148ден.
    • Достапност: Има залиха
    • Бренд: TECNOWARE
    • Шифра: 380230
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Tecnoware UPS EXA PLUS 4500. UPS topology: Line-Interactive, Output power capacity: 4.5 kVA, Output power: 3.15 W. AC outlet types: C13 coupler, C19 coupler. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Product colour: Black, Display type: LCD, International Protection (IP) code: IP20. Certification: CE
    • Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/623
    • Name: UPS/AVR EXA PLUS 4500VA/FGCEXAPL4502IEC TECNOWARE
    • Category Code: UPW
    • Model: FGCEXAPL4502IEC
    • UPS topology: Line-Interactive
    • Output power capacity: 4.5
    • Output power: 3.15
    • Waveform: Sine
    • Input operation voltage (min): 162
    • Input operation voltage (max): 290
    • Input frequency: 50/60
    • Output operation voltage (min): 208
    • Output operation voltage (max): 240
    • Output frequency: 50/60
    • Output voltage regulation: 1.5
    • Automatic Voltage Regulation (AVR): Yes
    • Response time: 2
    • Number of input phases: 1
    • Number of output phases: 1
    • Power factor: 0.7
    • Noise level: 45
    • AC outlet types: C13 coupler/C19 coupler
    • Battery technology: Sealed Lead Acid (VRLA)
    • Typical backup time at full load: 10
    • Built-in fan: Yes
    • Product colour: Black
    • Display type: LCD
    • LED indicators: Yes
    • International Protection (IP) code: IP20
    • Operating temperature (T-T): 0 - 55
    • Operating relative humidity (H-H): 0 - 95
    • Operating altitude: 0 - 3000
    • Certification: CE
    • Width: 190
    • Depth: 421
    • Height: 318
    • Weight: 29000
    • Package width: 320
    • Package depth: 560
    • Package height: 460
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.08243
    • Unit Calculated Weight: 30
    Specs
    AC outlet types C13 coupler/C19 coupler
    Automatic Voltage Regulation (AVR) Yes
    Battery technology Sealed Lead Acid (VRLA)
    Built-in fan Yes
    Category Code UPW
    Certification CE
    Depth 421
    Description

    UPS EXA PLUS 4.500 - Power 4.500 VA PF 0.7. Line Interactive Plus Sinusoidal technology, Input / output 230 / 230Vac, 50 / 60Hz, 8 IEC C13 sockets and 1 C19 socket, dimensions 19x31.8x42.1 cm, weight 29 Kg, autonomy 10-30 min. Connector for connection to additional Box Battery, multifunction graphic LCD display with Intelligent Backlighting System, EPO connector for USB and RS232 communication ports for UPS control and on / off programming using the free TecnoManager software. SNMP or Dry Contact card (optional).

    • Ideal for installation in quiet environments (the fan works only in Battery mode or when the AVR is active
    • Complete protection from black out, voltage surges (overvoltages and undervoltages), lightning (with surge arrester upstream), variations frequency, surge, harmonics, voltage distortions
    • Recommended for Workstation, PC Game, Personal Computer, Server, Local Area Networks (LAN)
    • Intelligent slot for SNMP or Dry Contact card
    • Line Interactive Plus technology Sinusoidal
    • AVR voltage stabilization electronic circuit
    • Battery recharging system managed by microprocessor
    • Connector for connection to additional Box Battery
    Display type LCD
    Height 318
    Input frequency 50/60
    Input operation voltage (max) 290
    Input operation voltage (min) 162
    International Protection (IP) code IP20
    LED indicators Yes
    Model FGCEXAPL4502IEC
    Name UPS/AVR EXA PLUS 4500VA/FGCEXAPL4502IEC TECNOWARE
    Noise level 45
    Number of input phases 1
    Number of output phases 1
    Operating altitude 0 - 3000
    Operating relative humidity (H-H) 0 - 95
    Operating temperature (T-T) 0 - 55
    Output frequency 50/60
    Output operation voltage (max) 240
    Output operation voltage (min) 208
    Output power 3.15
    Output power capacity 4.5
    Output voltage regulation 1.5
    Package depth 560
    Package height 460
    Package width 320
    PictureUrl https://static.elko.cloud/ProductImages/03975bd2-40a7-4c56-bbe6-40aa533195ed.Jpeg
    Power factor 0.7
    Product colour Black
    Response time 2
    Summary Tecnoware UPS EXA PLUS 4500. UPS topology: Line-Interactive, Output power capacity: 4.5 kVA, Output power: 3.15 W. AC outlet types: C13 coupler, C19 coupler. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Product colour: Black, Display type: LCD, International Protection (IP) code: IP20. Certification: CE
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/03975bd2-40a7-4c56-bbe6-40aa533195ed.Jpeg
    Typical backup time at full load 10
    Unit Calculated Volume 0.08243
    Unit Calculated Weight 30
    Units per Shipping Box 1
    UPS topology Line-Interactive
    Vendor Homepage https://www.tecnoware.com/en-US/Dettaglio/Articolo/623
    Waveform Sine
    Weight 29000
    Width 190
