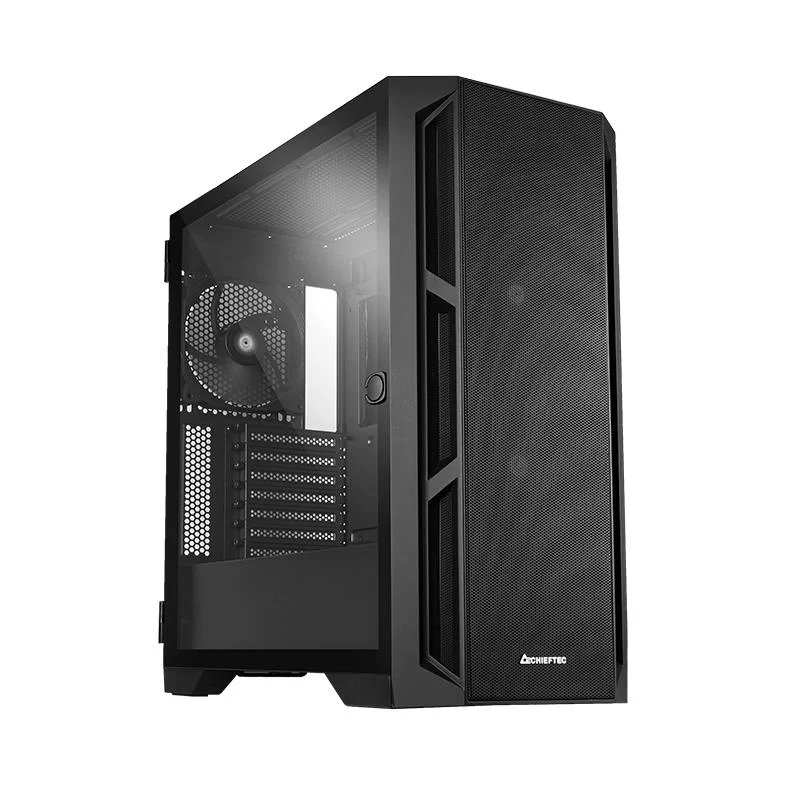

GA-01B-M-OP Black

Technical Specifications

• Description:

  The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.

  APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.

  The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.

  CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.

  • High-airflow optimized front mesh panel
  • Side panel made of TEMPERED GLASS
  • 3x 140mm PWM fans pre-installed

• Summary: Chieftec APEX AIR GA-01B-M-OP ATX. Form factor: Midi Tower, Type: PC, Product colour: Black. Power supply location: Bottom. Front fans installed: 2x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/570/GA-01B-M-OP
• Name: CASE MIDITOWER ATX W/O PSU/GA-01B-M-OP CHIEFTEC
• Category Code: CAS
• Model name: GA-01B-M-OP
• Type: PC
• Form factor: Midi Tower
• Product colour: Black
• Material: SPCC
• Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
• Number of 3.5" bays: 2
• Number of 2.5" bays: 2
• Number of internal 3.5" bays: 2
• Number of storage drives supported: 5
• Full-Height expansion slots: 7
• Number of expansion slots: 7
• Side window: Yes
• Suitable for: Gaming
• Illumination: No
• Tempered glass panel(s): Yes
• Anti-dust filter: Yes
• Cable management: Yes
• On/off button: Yes
• Reset button: Yes
• RGB control button: Yes
• Maximum CPU cooler height: 175
• Maximum graphics card length: 400
• Maximum PSU length: 220
• Power supply included: No
• Power supply location: Bottom
• Power supply shroud: Yes
• Audio input: Yes
• Audio output: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB Type-C ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Front fans installed: 2x 140 mm
• Number of front fans supported (max): 3
• Front fans diameters supported: 120/140
• Number of side fans supported (max): 2
• Side fans diameters supported: 120
• Rear fans installed: 1x 140 mm
• Number of rear fans supported (max): 1
• Rear fans diameters supported: 120/140
• Top fans installed: 3x 120 mm, 2x 140 mm
• Number of top fans supported (max): 3
• Number of bottom fans supported (max): 2
• Bottom fans diameters supported: 120
• Liquid cooling capability: Yes
• Front radiator sizes supported: 240/280/360/420
• Side radiator sizes supported: 240
• Top radiator sizes supported: 240/280/360
• Pulse-width modulation (PWM) support: Yes
• Supported HDD sizes: 2.5/3.5
• Width: 230
• Depth: 465
• Height: 495
• Weight: 7300
• Material thickness: 0.6
• Package weight: 8750
• Model: APEX AIR
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.09072
• Unit Calculated Weight: 8.75
