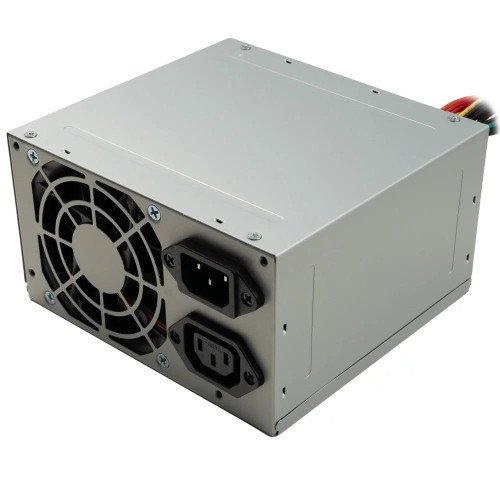

CASE PSU ATX 230W/SPS-ATX-450 SPACER

Technical Specifications

• Summary: SPACER SPS-ATX-450. Total power: 230 W, AC input voltage: 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Fan diameter: 8 cm, Number of fans: 1 fan(s)
• Vendor Homepage: www.spacer.ro/produs/sursa-spacer-sps-atx-450/
• Name: CASE PSU ATX 230W/SPS-ATX-450 SPACER
• Category Code: PSU
• Total power: 230
• AC input voltage: 230
• AC input frequency: 50/60
• Max output current (+3.3V): 7
• Max output current (+12V): 12.5
• Max output current (+5V): 9
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 2
• Peripheral (Molex) power connectors (4-pin): 2
• CPU P4 connector (4-pin): 1
• ATX power connector (20+4 pin): Yes
• Floppy drive power connector: 1
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 1.3
• Product colour: Grey
• Fan diameter: 80
• Number of fans: 1
• On/off switch: Yes
• Unit Calculated Volume: 0.006
• Unit Calculated Weight: 2
