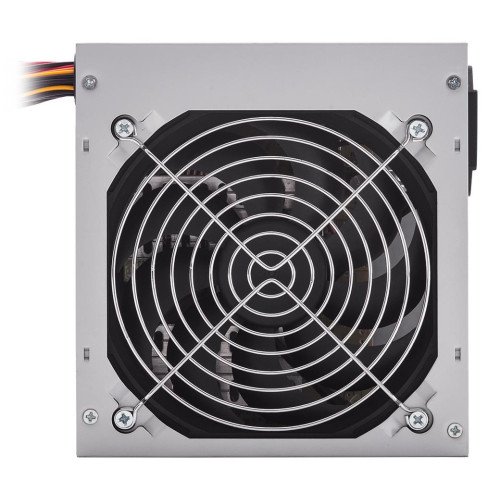

CASE PSU ATX 250W 25P20CA/PSAT0025P20CABU01A NJOY

Technical Specifications

• Summary: RPC 25P20CA. Total power: 250 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 40 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Supported motherboard form factors: ATX. Product colour: Grey, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
• Vendor Homepage: https://www.njoy.global
• Name: CASE PSU ATX 250W 25P20CA/PSAT0025P20CABU01A NJOY
• Category Code: PSU
• Total power: 250
• AC input voltage: 230
• AC input frequency: 47 - 63
• Power Factor Correction (PFC) type: Passive
• Number of +12V rail(s): 1
• Max output current (+3.3V): 10.5
• Max output current (+12V): 13
• Max output current (+5V): 9.1
• Max output current (-12V): 0.5
• Max output current (+5Vsb): 2
• Power protection features: Over current/Over power/Over voltage/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 400
• Number of SATA power connectors: 3
• SATA power cable length: 400
• Peripheral (Molex) power connectors (4-pin): 1
• Peripheral (Molex) power cable length: 400
• PCI Express power connectors (6+2 pin): 1
• ATX power connector (20+4 pin): Yes
• Supported motherboard form factors: ATX
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Noise level: 28
• Product colour: Grey
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• On/off switch: Yes
• Compliance certificates: CE/RoHS
• Width: 150
• Depth: 140
• Height: 86
• Weight: 1010
• Master (outer) case width: 425
• Master (outer) case length: 460
• Master (outer) case height: 165
• Master (outer) case gross weight: 11950
• Master (outer) case net weight: 10500
• Products per master (outer) case: 10
• Model name: 25P20CA
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001785
• Unit Calculated Weight: 1.5
