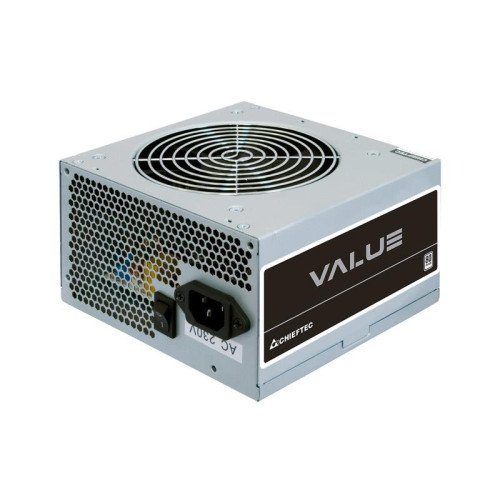

CASE PSU ATX 400W/APB-400B8 CHIEFTEC

CASE PSU ATX 400W/APB-400B8 CHIEFTEC
CASE PSU ATX 400W/APB-400B8 CHIEFTEC
  • Total power: 400
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: PS/2
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    2,496ден.
    • Достапност: Има залиха
    • Шифра: 457892
    • Гарантен рок: 12 months
    • Рок на испорака: 22.03
    CHIEFTEC
    Во кошничка
    Листа на желби Спореди
    Сподели

    Technical Specifications

    • Summary: Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: 80PLUS 230V EU
    • Vendor Homepage: https://www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
    • Name: CASE PSU ATX 400W/APB-400B8 CHIEFTEC
    • Category Code: PSU
    • Total power: 400
    • AC input voltage: 200 - 240
    • AC input frequency: 47 - 63
    • Input current: 3
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 100
    • Combined power (+12V): 360
    • Combined power (+5V): 100
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 17
    • Max output current (+12V): 30
    • Max output current (+5V): 16
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Power protection features: Over voltage/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 350
    • Number of SATA power connectors: 3
    • SATA power cable length: 150/350
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/350
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 1
    • PCI Express power cable length: 350
    • CPU power connector (4+4 pin): Yes
    • CPU power cable length: 350
    • Floppy disk drive connector: Yes
    • Floppy drive power connector: 1
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: PS/2
    • ATX version: 2.3
    • Product colour: Silver
    • Fan diameter: 120
    • Number of fans: 1
    • Certification: 80PLUS 230V EU
    • Width: 140
    • Depth: 150
    • Height: 87
    • Harmonized System (HS) code: 84733020
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.00352
    • Unit Calculated Weight: 1.6
