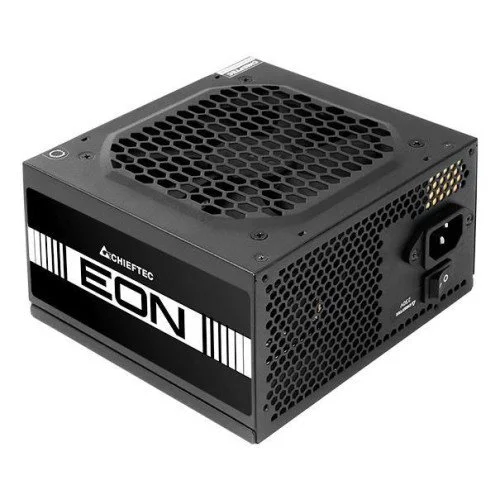

CASE PSU ATX 400W/ZPU-400S CHIEFTEC

CASE PSU ATX 400W/ZPU-400S CHIEFTEC
CASE PSU ATX 400W/ZPU-400S CHIEFTEC
  • Total power: 400
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
    • Врз основа на 0 коментари. - Напиши коментар
    2,774ден.
    • Достапност:
    • Шифра: 419490
    • Гарантен рок: 12 months
    • Рок на испорака: 22.03
    CHIEFTEC
    Во кошничка
    Листа на желби Спореди
    Сподели

    Technical Specifications

    • Summary: Chieftec EON ZPU-400S. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,600 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
    • Vendor Homepage: https://www.chieftec.eu/products-detail/566/EON_Series
    • Name: CASE PSU ATX 400W/ZPU-400S CHIEFTEC
    • Category Code: PSU
    • Total power: 400
    • AC input voltage: 200 - 240
    • AC input frequency: 50
    • Input current: 3
    • Maximum input current (@220V): 3
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (-12V): 4.8
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 20
    • Max output current (+12V1): 30
    • Max output current (+5V): 20
    • Max output current (-12V): 0.4
    • Max output current (+5Vsb): 2.5
    • Power protection features: Short circuit/Surge and inrush/Surge protection
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 550
    • Number of SATA power connectors: 4
    • SATA power cable length: 550/600
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/450
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 1
    • CPU power connector (4+4 pin): Yes
    • ATX power connector (20+4 pin): Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Supported motherboard form factors: ATX
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Black
    • Fan diameter: 120
    • On/off switch: Yes
    • Compliance certificates: CB/CE/EAC/RoHS
    • Width: 150
    • Depth: 140
    • Height: 86
    • Weight: 1150
    • Package weight: 1400
    • Package type: Box
    • Sustainability certificates: ErP
    • Warranty period: 2
    • Model name: ZPU-400S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.0045
    • Unit Calculated Weight: 1.2
