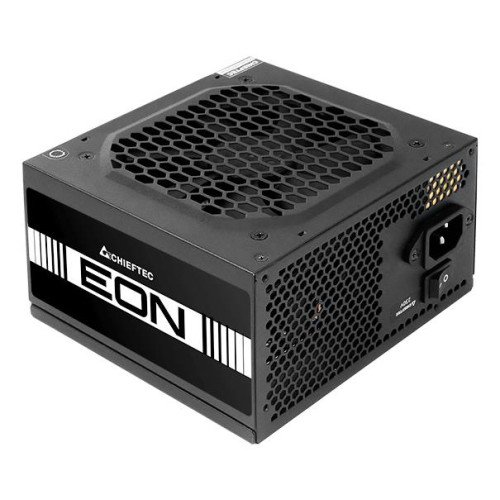

CASE PSU ATX 400W/ZPU-500S CHIEFTEC

CASE PSU ATX 400W/ZPU-500S CHIEFTEC
CASE PSU ATX 400W/ZPU-500S CHIEFTEC
  • Total power: 500
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
    • Врз основа на 0 коментари. - Напиши коментар
    2,912ден.
    • Достапност: Има залиха
    • Бренд: CHIEFTEC
    • Шифра: 419491
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec EON ZPU-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
    • Vendor Homepage: https://www.chieftec.eu/products-detail/566/EON_Series/573/ZPU-500S
    • Name: CASE PSU ATX 400W/ZPU-500S CHIEFTEC
    • Category Code: PSU
    • Total power: 500
    • AC input voltage: 200 - 240
    • AC input frequency: 50
    • Input current: 3.5
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 100
    • Combined power (+12V): 444
    • Combined power (+5V): 100
    • Combined power (-12V): 4.8
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 20
    • Max output current (+12V1): 37
    • Max output current (+5V): 20
    • Max output current (-12V): 0.4
    • Max output current (+5Vsb): 2.5
    • Power protection features: Short circuit/Surge and inrush/Surge protection
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 650
    • Number of SATA power connectors: 4
    • SATA power cable length: 450/600/750
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/450
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 1
    • CPU power connector (4+4 pin): Yes
    • ATX power connector (20+4 pin): Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Supported motherboard form factors: ATX
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 120
    • On/off switch: Yes
    • Compliance certificates: CB/CE/EAC/RoHS
    • Width: 150
    • Depth: 140
    • Height: 86
    • Weight: 1200
    • Package weight: 1450
    • Package type: Box
    • Sustainability certificates: ErP
    • Warranty period: 2
    • Model name: ZPU-500S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.0045
    • Unit Calculated Weight: 1.45
    Specs
    80 PLUS certification 80 PLUS
    AC input frequency 50
    AC input voltage 200 - 240
    ATX power connector (20+4 pin) Yes
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Combined power (+12V) 444
    Combined power (+3.3V) 100
    Combined power (+5V) 100
    Combined power (+5Vsb) 12.5
    Combined power (-12V) 4.8
    Compliance certificates CB/CE/EAC/RoHS
    Cooling type Active
    CPU power connector (4+4 pin) Yes
    Depth 140
    Description

    The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.

    The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Height 86
    Input current 3.5
    Max output current (+12V1) 37
    Max output current (+3.3V) 20
    Max output current (+5V) 20
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.4
    Model name ZPU-500S
    Motherboard power cable length 650
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 400W/ZPU-500S CHIEFTEC
    Number of SATA power connectors 4
    On/off switch Yes
    Package type Box
    Package weight 1450
    PCI Express power connectors (6+2 pin) 1
    Peripheral (Molex) power cable length 150/450
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/c25ca84c-d526-46e6-93dc-644b5c5adaed.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Short circuit/Surge and inrush/Surge protection
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC/Server
    SATA power cable length 450/600/750
    Summary Chieftec EON ZPU-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
    Supported motherboard form factors ATX
    Sustainability certificates ErP
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/c25ca84c-d526-46e6-93dc-644b5c5adaed.Jpeg
    Total power 500
    Unit Calculated Volume 0.0045
    Unit Calculated Weight 1.45
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/566/EON_Series/573/ZPU-500S
    Warranty period 2
    Weight 1200
    Width 150
