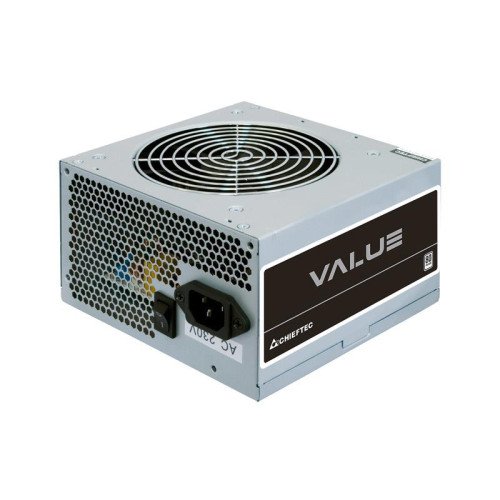

CASE PSU ATX 500W/APB-500B8 CHIEFTEC

CASE PSU ATX 500W/APB-500B8 CHIEFTEC
Нема на залиха
CASE PSU ATX 500W/APB-500B8 CHIEFTEC
  • Total power: 500
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    2,562ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 410999
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÃœV, EAC
    • Vendor Homepage: https://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
    • Name: CASE PSU ATX 500W/APB-500B8 CHIEFTEC
    • Category Code: PSU
    • Total power: 500
    • AC input voltage: 230
    • AC input frequency: 50
    • Input current: 4
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 130
    • Combined power (+5V): 130
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 22
    • Max output current (+12V1): 24
    • Max output current (+12V2): 21
    • Max output current (+5V): 19
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Efficiency: 80
    • Power protection features: Over voltage/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Number of SATA power connectors: 3
    • Peripheral (Molex) power connectors (4-pin): 2
    • PCI Express power connectors (6+2 pin): 1
    • Floppy disk drive connector: Yes
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Silver
    • Cooling type: Active
    • Fan diameter: 120
    • Number of fans: 1
    • On/off switch: Yes
    • Compliance certificates: RoHS
    • Certification: CE, CB, TÃœV, EAC
    • Width: 150
    • Depth: 140
    • Height: 87
    • Harmonized System (HS) code: 84733020
    • Model name: APB-500B8
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.003119
    • Unit Calculated Weight: 1.5
    Specs
    80 PLUS certification 80 PLUS
    AC input frequency 50
    AC input voltage 230
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Certification CE, CB, TÃœV, EAC
    Combined power (+3.3V) 130
    Combined power (+5V) 130
    Combined power (+5Vsb) 12.5
    Combined power (-12V) 3.6
    Compliance certificates RoHS
    Cooling type Active
    Depth 140
    Description

    The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
    installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
    Efficiency 80
    Fan diameter 120
    Floppy disk drive connector Yes
    Harmonized System (HS) code 84733020
    Height 87
    Input current 4
    Max output current (+12V1) 24
    Max output current (+12V2) 21
    Max output current (+3.3V) 22
    Max output current (+5V) 19
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.3
    Model name APB-500B8
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 500W/APB-500B8 CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 3
    On/off switch Yes
    PCI Express power connectors (6+2 pin) 1
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/bab69ddd-25b3-458c-a7a1-bfe6a4ed0600.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factor ATX
    Product colour Silver
    Purpose PC
    Summary Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÃœV, EAC
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/bab69ddd-25b3-458c-a7a1-bfe6a4ed0600.Jpeg
    Total power 500
    Unit Calculated Volume 0.003119
    Unit Calculated Weight 1.5
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
    Width 150
