APB-500B8

APB-500B8
APB-500B8
APB-500B8
APB-500B8
APB-500B8
  • Total power: 500
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    2,697ден.
    • Достапност: Има надворешна залиха
    • Бренд: CHIEFTEC
    • Шифра: 410999
    • Гарантен рок: 24 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1
    Specifications
    Unit Depth21
    Unit Height9
    Unit Width16.5
    Specs
    80 PLUS certification80 PLUS
    AC input frequency50
    AC input voltage230
    ATX version2.3
    Cabling typeNon-Modular
    Category CodePSU
    CertificationCE, CB, TÜV, EAC
    Combined power (+3.3V)130
    Combined power (+5V)130
    Combined power (+5Vsb)12.5
    Combined power (-12V)3.6
    Compliance certificatesRoHS
    Cooling typeActive
    Depth140
    Efficiency80
    Fan diameter120
    Floppy disk drive connectorYes
    Harmonized System (HS) code84733020
    Height87
    Input current4
    Max output current (+12V1)24
    Max output current (+12V2)21
    Max output current (+3.3V)22
    Max output current (+5V)19
    Max output current (+5Vsb)2.5
    Max output current (-12V)0.3
    Model nameAPB-500B8
    Motherboard power connector20+4 pin ATX

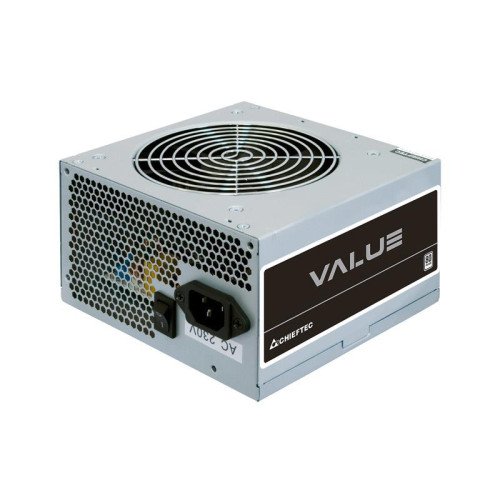

    NameCASE PSU ATX 500W/APB-500B8 CHIEFTEC
    Number of fans1
    Number of SATA power connectors3
    On/off switchYes
    PCI Express power connectors (6+2 pin)1
    Peripheral (Molex) power connectors (4-pin)2
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Power protection featuresOver voltage/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factorATX
    Product colourSilver
    Product Net Weight1.22
    Product typeOffice
    PurposePC
    Shipping Box Depth21
    Shipping Box Height9
    Shipping Box Weight1.5
    Shipping Box Width16.5
    SummaryChieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC
    Total power500
    Unit Calculated Volume0.003119
    Unit Calculated Weight1.5
    Units per Shipping Box1
    Vendor Homepagehttps://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
    Width150
