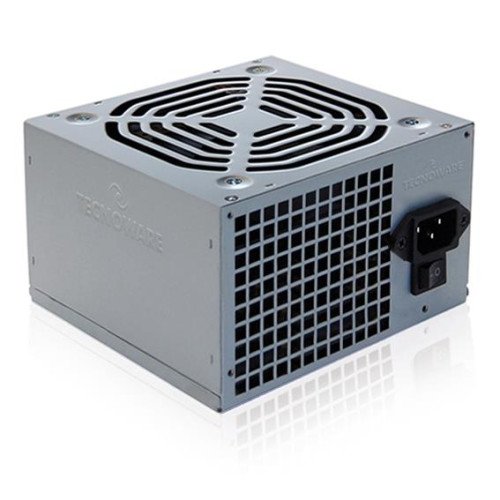

CASE PSU ATX 500W/FAL506FS12B TECNOWARE

Technical Specifications

• Summary: Tecnoware Free Silent. Total power: 500 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE (2014/35/UE; EMC 2014/30/UE)
• Vendor Homepage: https://www.tecnoware.com/Prodotti/FAL506FS12B/free-silent-500w-12-cm-psu-bulk.aspx
• Name: CASE PSU ATX 500W/FAL506FS12B TECNOWARE
• Category Code: PSU
• Total power: 500
• AC input voltage: 180 - 264
• AC input frequency: 47 - 63
• Input current: 5
• Max output current (+3.3V): 22
• Max output current (+12V): 28
• Max output current (+5V): 22
• Max output current (-12V): 0.8
• Max output current (+5Vsb): 2.5
• Efficiency: 86
• Power protection features: Over voltage/Overload/Short circuit
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 2
• Peripheral (Molex) power connectors (4-pin): 2
• CPU power connector (4+4 pin): Yes
• ATX power connector (20+4 pin): Yes
• Floppy disk drive connector: Yes
• Floppy drive power connector: 1
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.01
• Product colour: Grey
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Fan location: Top
• On/off switch: Yes
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -15 - 40
• Operating relative humidity (H-H): 0 - 95
• Compliance certificates: RoHS
• Certification: CE (2014/35/UE; EMC 2014/30/UE)
• Width: 150
• Depth: 140
• Height: 85
• Weight: 1000
• Operating altitude: 0 - 3000
• Model name: FREE SILENT 500W
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003038
• Unit Calculated Weight: 0.9
