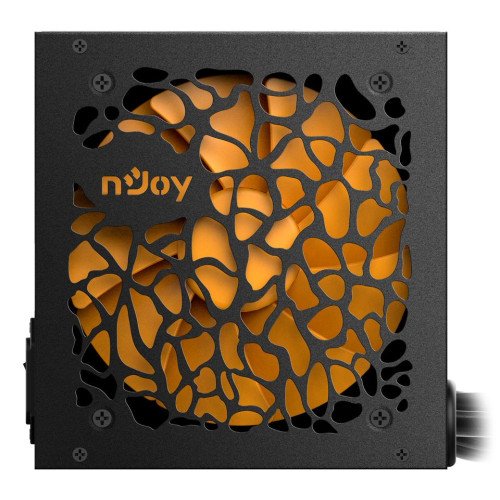

CASE PSU ATX 650W TITAN+ 650/PSAT5065A20CUCO01B NJOY

Technical Specifications

• Summary: nJoy Titan+ 650. Total power: 650 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,530,790,920,660 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Orange, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
• Vendor Homepage: https://www.njoy.global/product/titanplus-650/PSAT5065A20CUCO01B
• Name: CASE PSU ATX 650W TITAN+ 650/PSAT5065A20CUCO01B NJOY
• Category Code: PSU
• Total power: 650
• AC input voltage: 230
• AC input frequency: 47 - 63
• Power Factor Correction (PFC) type: Active
• Number of +12V rail(s): 1
• Combined power (+3.3V): 90
• Combined power (+12V): 648
• Combined power (+5V): 90
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 15
• Max output current (+12V): 54
• Max output current (+5V): 15
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Efficiency: 88
• Power protection features: Over current/Over power/Over voltage/Short circuit
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 500
• Number of SATA power connectors: 6
• SATA power cable length: 400/530/660/790/920
• Peripheral (Molex) power connectors (4-pin): 4
• Peripheral (Molex) power cable length: 600
• PCI Express power connectors (6+2 pin): 4
• PCI Express power cable length: 650
• Number of EPS connectors: 1
• 80 PLUS certification: 80 PLUS Bronze
• Supported motherboard form factors: ATX
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.53
• Continuous output rated temperature: 105
• Bearing technology: Hydraulic
• Product colour: Black/Orange
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• On/off switch: Yes
• Cables included: AC
• Compliance certificates: CE/RoHS
• Width: 150
• Depth: 140
• Height: 86
• Weight: 1510
• Package width: 240
• Package depth: 100
• Package height: 180
• Package weight: 1700
• Package type: Box
• Warranty period: 3
• Master (outer) case width: 375
• Master (outer) case length: 525
• Master (outer) case height: 265
• Master (outer) case gross weight: 17820
• Master (outer) case net weight: 17000
• Products per master (outer) case: 10
• Parallel processing technology support: CrossFireX/SLI
• Power plug type: Type F
• Model name: PSAT5065A20CUCO01B
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0045
• Unit Calculated Weight: 2
