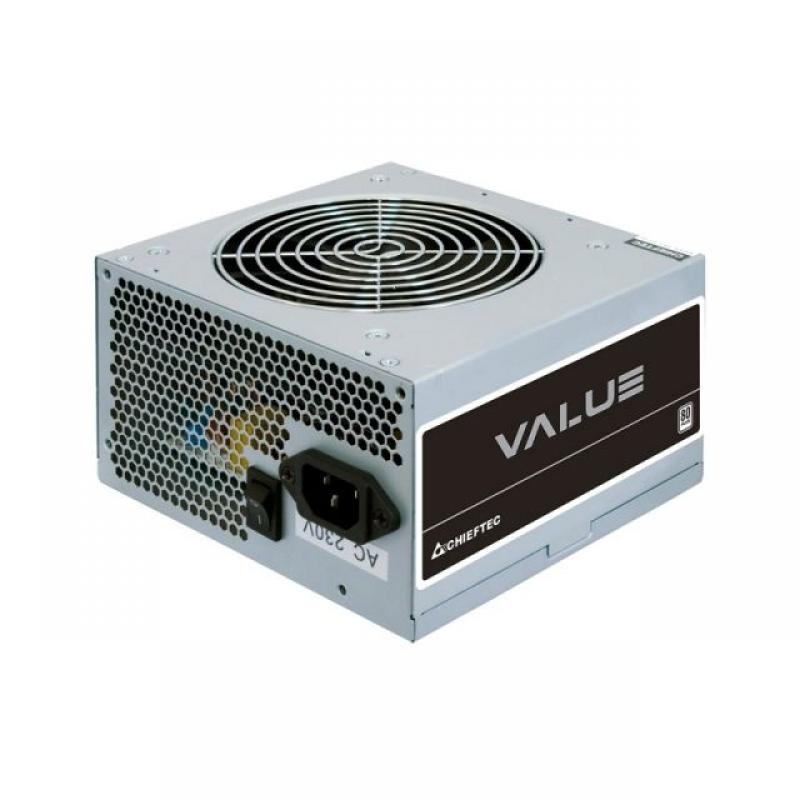

APB-700B8

APB-700B8
APB-700B8
APB-700B8
APB-700B8
APB-700B8
  • Total power: 700
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    4,136ден.
    • Достапност: Има надворешна залиха
    • Бренд: CHIEFTEC
    • Шифра: 411001
    • Гарантен рок: 24 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1
    Specifications
    Unit Depth23
    Unit Height9
    Unit Width16
    Specs
    80 PLUS certification80 PLUS
    AC input frequency47 - 63
    AC input voltage200 - 240
    ATX version2.3
    Cabling typeNon-Modular
    Category CodePSU
    CertificationCE, CB, EAC, TÜV
    Combined power (+12V)648
    Combined power (+3.3V)130
    Combined power (+5V)130
    Compliance certificatesCE
    Cooling typeActive
    CPU power cable length500
    CPU power connector (4+4 pin)Yes
    Depth140
    EPS power connector (4+4 pin)Yes
    Fan diameter120
    Floppy disk drive connectorYes
    Floppy drive power connector1
    Harmonized System (HS) code84733020
    Height87
    Input current5
    Max output current (+12V1)54
    Max output current (+3.3V)22
    Max output current (+5V)22
    Model nameAPB-700B8
    Motherboard power cable length550
    Motherboard power connector20+4 pin ATX
    NameCASE PSU ATX 700W/APB-700B8 CHIEFTEC
    Number of fans1
    Number of SATA power connectors4
    Package weight1570
    PCI Express power cable length500
    PCI Express power connectors (6+2 pin)2
    Peripheral (Molex) power cable length150/500
    Peripheral (Molex) power connectors (4-pin)2
    Power factor0.9
    Power Factor Correction (PFC) typeActive
    Power protection featuresOver voltage/Overheating/Overload/Short circuit/Under power/Under voltage
    Power supply unit (PSU) form factorATX
    Product colourSilver
    Product Net Weight1.42
    Product typeOffice
    PurposePC/Server
    SATA power cable length150/550
    Shipping Box Depth23
    Shipping Box Height9
    Shipping Box Weight1.5
    Shipping Box Width16
    SummaryChieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Certification: CE, CB, EAC, TÜV
    Sustainability complianceYes
    Total power700
    Unit Calculated Volume0.003312
    Unit Calculated Weight1.5
    Units per Shipping Box1
    Vendor Homepagehttps://www.chieftec.eu/products-detail/181/VALUE_SERIES/527/APB-700B8
    Weight1420
    Width150
