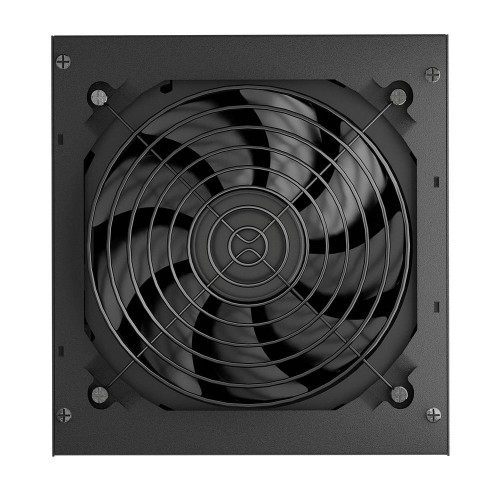

CASE PSU ATX 750W ALPHA+ 750/PSAT6075A2MCVCZ01B NJOY

Technical Specifications

• Description:

  ALPHA+ SERIES
  THE BEGINNING OF AN EPIC STORY

  Alpha series represents the highest standard in our PSUs collection. This is a full-modular, 80+ Gold 230V EU power supply with outstanding capabilities. This series has evolved through three significant versions. Alpha’s progression demonstrates our commitment in addressing users’ feedback and advancing technological features, ultimately delivering a high-performance, efficient, and quiet power supply unit for your premium PC needs.

  Evolution through commitment
  The story began with our first version of the Alpha PSU that was focused on the gaming niche with a bold and futuristic front panel. That turned out to be a bit noisy for our standards and we changed the front panel. Having a minimalistic panel with a wider airway that resulted into quieter PSU for the 2nd version, based on our user’s feedback. Now we have arrived at the new and improved 3rd version, “Alpha+” that is an all-black PSU. Enriched with the Zero RPM fan feature that makes Alpha+ more efficient and noiseless in low loads.

  Modular construction
  Alpha+ Series modularity improves cable management and increases air flow for your chassis. Also, the absence of tangled, multicolored cables can help a lot with the aesthetics of your PC build.

  Matching the 80+ Gold 230V EU standard perfectly
  The fact that Alpha+ can pass every test of 80+ Gold 230V EU standard, ensures superior efficiency with 90%, 92%, and 89% performance at 20%, 50%, and 100% respectively loads. This testing establishes that Alpha+ is built for premium systems.

  12VHPWR Connector*
  The primary aim of this latest released connector is to cater up to 600W power for high-performance GPUs. The 16-pin 12VHPWR connector is introduced for supplying the high-power demand of high-end* graphics processing units.
  *12VHPWR Connector supports the following GPU’s: Nvidia RTX 3090 and 4080/4090 Series.

  DC-to-DC Technology
  By using DC-DC converters, the PSU can deliver various output voltages with high efficiency and accuracy. With DC-to-DC technology, the +3.3V and +5V outputs can be easily obtained for maximum stability.

  Zero RPM Fan Feature
  The top-quality components used in designing this PSU allow fan-less operation for up to 30% load, without any performance compromises. The 0 RPM fan feature enhances the user experience by providing quieter operation during low-load scenarios.

  Hydraulic bearing fan
  Hydraulic bearings use a thin layer of oil to create a lubricated film between the rotating shaft and the bearing. This design reduces friction, which results in quieter operation and longer lifespan compared to traditional sleeve bearings.

  Protective shield
  Nothing can go wrong when the power supply is decked with 6 protection systems that will save your most valued components from unfortunate events. Alpha+ provides OVP / OCP / OTP / UVP / SCP / OPP in accordance with international standards.

  High quality 105° C capacitors
  Top electrolytic capacitors rated at 105° Celsius have an increased lifespan up to 4x more compared to 85° Celsius ones, plus greater resistance to sudden and frequent voltage changes.

  • Meets 80+ Gold 230V EU Standard
  • Zero Fan Technology
  • 12VHPWR Connector

• Summary: nJoy Alpha+ 750. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PATA, PCIe, SATA
• Vendor Homepage: https://www.njoy.global/product/alphaplus-750/PSAT6075A2MCVCZ01B?el=resources
• Name: CASE PSU ATX 750W ALPHA+ 750/PSAT6075A2MCVCZ01B NJOY
• Category Code: PSU
• Total power: 750
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 100
• Combined power (+12V): 750
• Combined power (+5V): 100
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 15
• Max output current (+3.3V): 20
• Max output current (+12V): 62.5
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 3
• Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 600
• Number of PATA power connectors: 6
• SATA power cable length: 150/450
• Peripheral (Molex) power connectors (4-pin): 3
• Peripheral (Molex) power cable length: 150/450
• PCI Express power connectors (6+2 pin): 2
• PCI Express power connectors (12-pin): 1
• PCI Express power cable length: 600
• CPU power connector (4+4 pin): Yes
• CPU power cable length: 550
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• Bearing technology: Hydraulic
• Product colour: Black
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Fan location: Top
• Cables included: AC,PATA,PCIe,SATA
• Certification: CE, RoHS
• Width: 145
• Depth: 150
• Height: 86
• Weight: 1710
• Package width: 215
• Package depth: 280
• Package height: 125
• Package weight: 2100
• Package type: Box
• Master (outer) case width: 590
• Master (outer) case length: 450
• Master (outer) case height: 275
• Master (outer) case gross weight: 18320
• Master (outer) case net weight: 16800
• Products per master (outer) case: 8
• Model name: PSAT6075A2MCVCZ01B
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01232
• Unit Calculated Weight: 3
