PSAT5075A20CUCO01B
4,084ден.
- Достапност: Има надворешна залиха
- Бренд: NJOY
- Шифра: 426338
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| Unit Depth | 25 |
| Unit Height | 10 |
| Unit Width | 18 |
| Specs | |
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 47 - 63 |
| AC input voltage | 230 |
| ATX version | 2.53 |
| Bearing technology | Hydraulic |
| Cables included | AC |
| Category Code | PSU |
| Combined power (+12V) | 744 |
| Combined power (+3.3V) | 90 |
| Combined power (+5V) | 90 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Compliance certificates | CE/RoHS |
| Continuous output rated temperature | 105 |
| Cooling type | Active |
| Depth | 140 |
| Efficiency | 88 |
| Fan diameter | 120 |
| Height | 86 |
| Master (outer) case gross weight | 18400 |
| Master (outer) case height | 265 |
| Master (outer) case length | 525 |
| Master (outer) case net weight | 17600 |
| Master (outer) case width | 375 |
| Max output current (+12V) | 62 |
| Max output current (+3.3V) | 15 |
| Max output current (+5V) | 15 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Model name | PSAT5075A20CUCO01B |

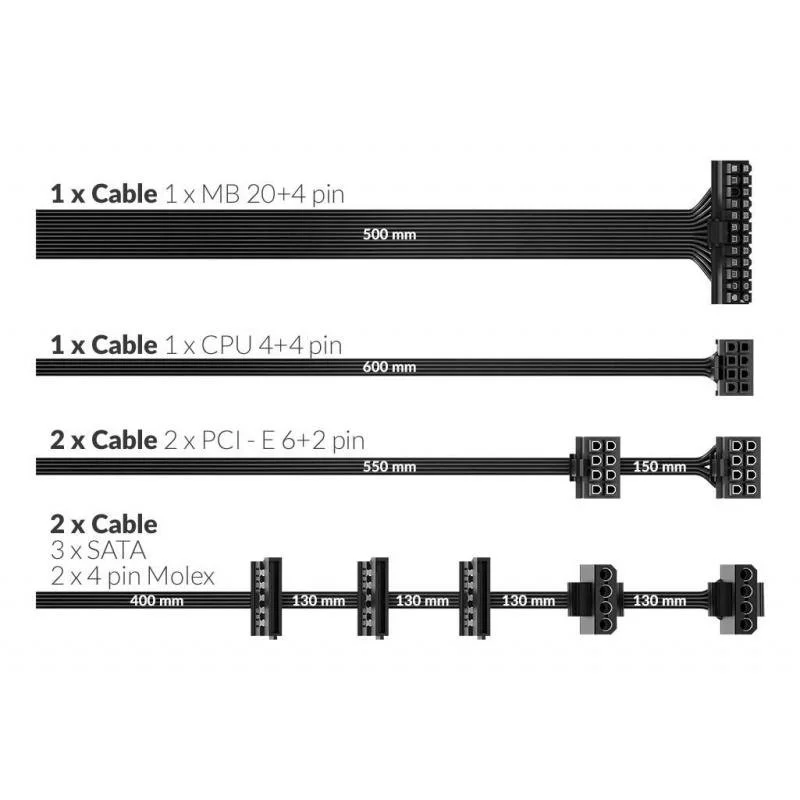

| Motherboard power cable length | 500 |
| Motherboard power connector | 20+4 pin ATX |

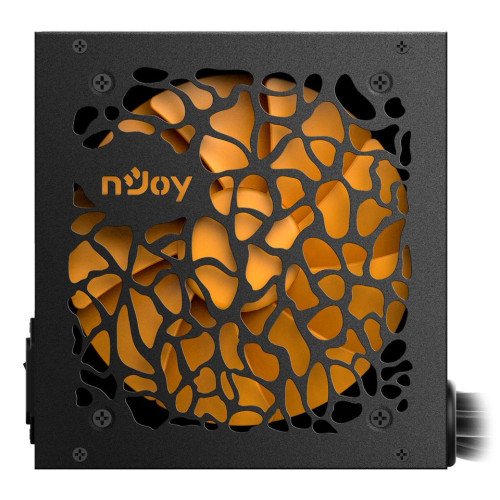

| Name | CASE PSU ATX 750W TITAN+ 750/PSAT5075A20CUCO01B NJOY |
| Number of +12V rail(s) | 1 |
| Number of EPS connectors | 1 |
| Number of fans | 1 |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Package depth | 100 |
| Package height | 180 |
| Package type | Box |
| Package weight | 1760 |
| Package width | 240 |
| Parallel processing technology support | CrossFireX/SLI |
| PCI Express power cable length | 650 |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 600 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Power Factor Correction (PFC) type | Active |
| Power plug type | Type F |
| Power protection features | Over current/Over power/Over voltage/Short circuit |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black/Orange |
| Product Net Weight | 2.04 |
| Product type | Office |
| Products per master (outer) case | 10 |
| Purpose | PC |
| SATA power cable length | 400/530/660/790/920 |
| Shipping Box Depth | 25 |
| Shipping Box Height | 10 |
| Shipping Box Weight | 2.2 |
| Shipping Box Width | 18 |
| Summary | nJoy Titan+ 750. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,530,790,920,660 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Orange, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC |
| Supported motherboard form factors | ATX |
| Total power | 750 |
| Unit Calculated Volume | 0.0045 |
| Unit Calculated Weight | 2.2 |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.njoy.global/product/titanplus-750/PSAT5075A20CUCO01B |
| Warranty period | 3 |
| Weight | 1580 |
| Width | 150 |
