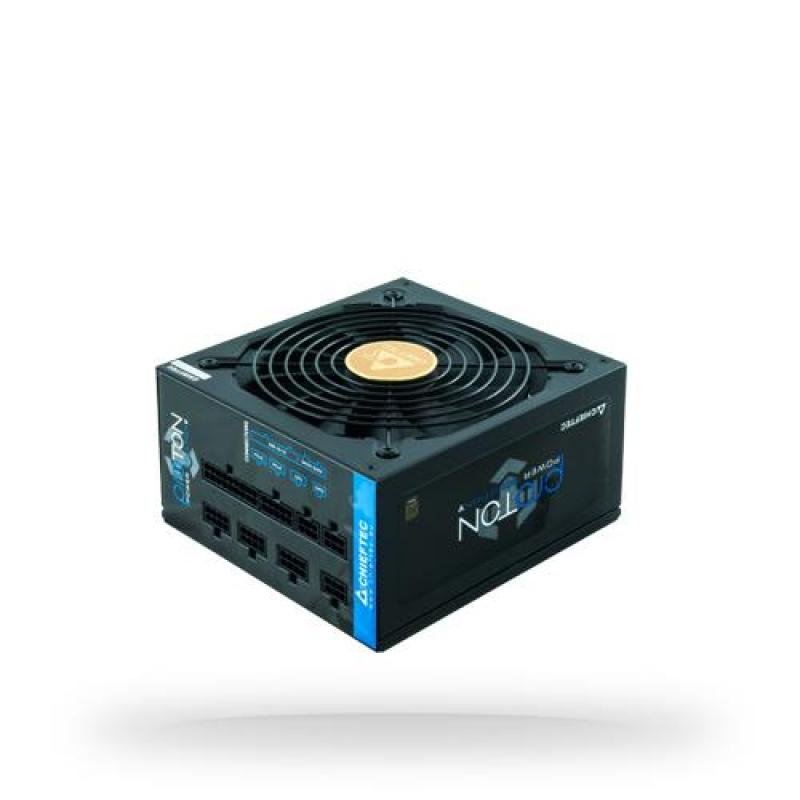

CASE PSU ATX 750W/BDF-750C CHIEFTEC

CASE PSU ATX 750W/BDF-750C CHIEFTEC
Нема на залиха
CASE PSU ATX 750W/BDF-750C CHIEFTEC
  • Total power: 750
  • 80 PLUS certification: 80 PLUS Bronze
  • Power supply unit (PSU) form factor: PS/2
  • Fan diameter: 140
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    6,668ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 404083
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec BDF-750C. Total power: 750 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
    • Vendor Homepage: https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-750c.html
    • Name: CASE PSU ATX 750W/BDF-750C CHIEFTEC
    • Category Code: PSU
    • Total power: 750
    • AC input voltage: 115 - 230
    • AC input frequency: 50 - 60
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 120
    • Combined power (+5V): 120
    • Max output current (+3.3V): 22
    • Max output current (+12V): 62.5
    • Max output current (+5V): 22
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Efficiency: 85
    • Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Number of SATA power connectors: 6
    • Peripheral (Molex) power connectors (4-pin): 3
    • PCI Express power connectors (6+2 pin): 4
    • CPU power connector (4+4 pin): Yes
    • Floppy disk drive connector: Yes
    • Cabling type: Fully-Modular
    • 80 PLUS certification: 80 PLUS Bronze
    • Purpose: PC
    • Power supply unit (PSU) form factor: PS/2
    • ATX version: 2.3
    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 140
    • Number of fans: 1
    • Fan location: Top
    • On/off switch: Yes
    • Width: 150
    • Depth: 140
    • Height: 87
    • Manual: Yes
    • Package type: Box
    • Harmonized System (HS) code: 84733020
    • Warranty card: Yes
    • Model name: BDF-750C
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.00726
    • Unit Calculated Weight: 2.49
    Specs
    80 PLUS certification 80 PLUS Bronze
    AC input frequency 50 - 60
    AC input voltage 115 - 230
    ATX version 2.3
    Cabling type Fully-Modular
    Category Code PSU
    Combined power (+3.3V) 120
    Combined power (+5V) 120
    Cooling type Active
    CPU power connector (4+4 pin) Yes
    Depth 140
    Description

    With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
    Efficiency 85
    Fan diameter 140
    Fan location Top
    Floppy disk drive connector Yes
    Harmonized System (HS) code 84733020
    Height 87
    Manual Yes
    Max output current (+12V) 62.5
    Max output current (+3.3V) 22
    Max output current (+5V) 22
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.3
    Model name BDF-750C
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 750W/BDF-750C CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 6
    On/off switch Yes
    Package type Box
    PCI Express power connectors (6+2 pin) 4
    Peripheral (Molex) power connectors (4-pin) 3
    PictureUrl https://static.elko.cloud/ProductImages/bebad378-95ee-473d-b965-ba86d7132e0e.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factor PS/2
    Product colour Black
    Purpose PC
    Summary Chieftec BDF-750C. Total power: 750 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/bebad378-95ee-473d-b965-ba86d7132e0e.Jpeg
    Total power 750
    Unit Calculated Volume 0.00726
    Unit Calculated Weight 2.49
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-750c.html
    Warranty card Yes
    Width 150
