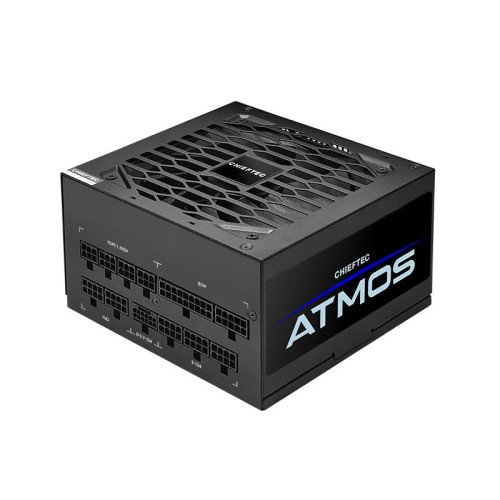

CASE PSU ATX 750W/CPX-750FC CHIEFTEC

Technical Specifications

• Summary: Chieftec Atmos . Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,650,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/562/ATMOS_Series/563/CPX-750FC
• Name: CASE PSU ATX 750W/CPX-750FC CHIEFTEC
• Category Code: PSU
• Total power: 750
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Input current: 9 - 4.5
• Maximum input current (@110V): 9
• Maximum input current (@220V): 4.5
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Max output current (+3.3V): 20
• Max output current (+12V1): 62.5
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 3
• Power protection features: Over current/Over voltage/Short circuit/Surge and inrush
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 600
• Number of SATA power connectors: 9
• SATA power cable length: 550/650/750
• Peripheral (Molex) power cable length: 550/650/750/850
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (16-pin): 1
• CPU power cable length: 600
• ATX power connector (20+4 pin): Yes
• Cabling type: Fully-Modular
• 80 PLUS certification: 80 PLUS Gold
• Supported motherboard form factors: ATX
• Purpose: PC/Server
• Power supply unit (PSU) form factor: ATX
• ATX version: 3.0
• Product colour: Black
• Fan diameter: 120
• On/off switch: Yes
• Width: 150
• Depth: 140
• Height: 86
• Weight: 1490
• Model name: CPX-750FC
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00858
• Unit Calculated Weight: 2.5
