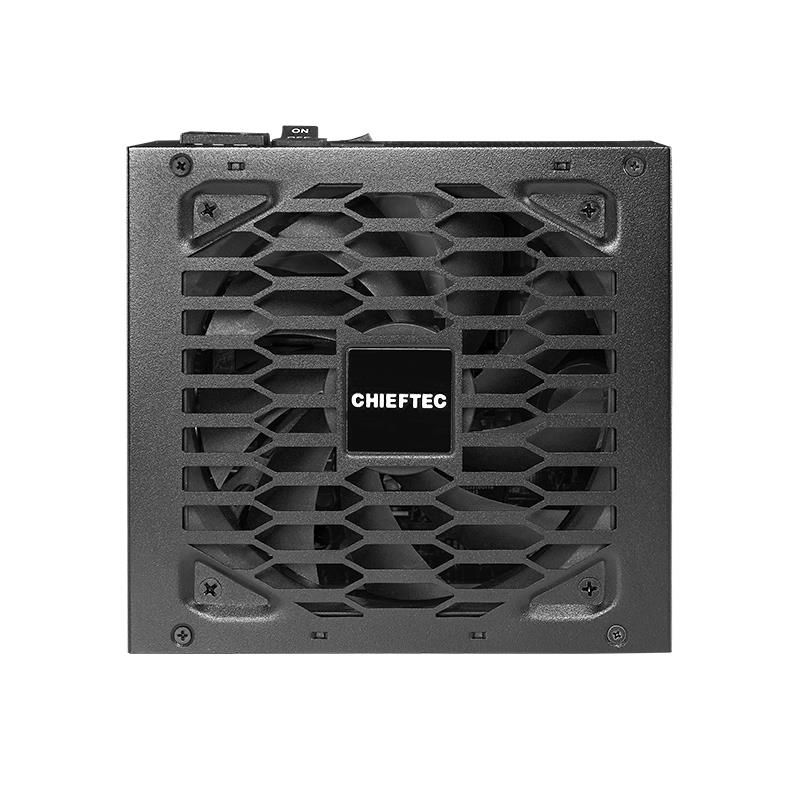

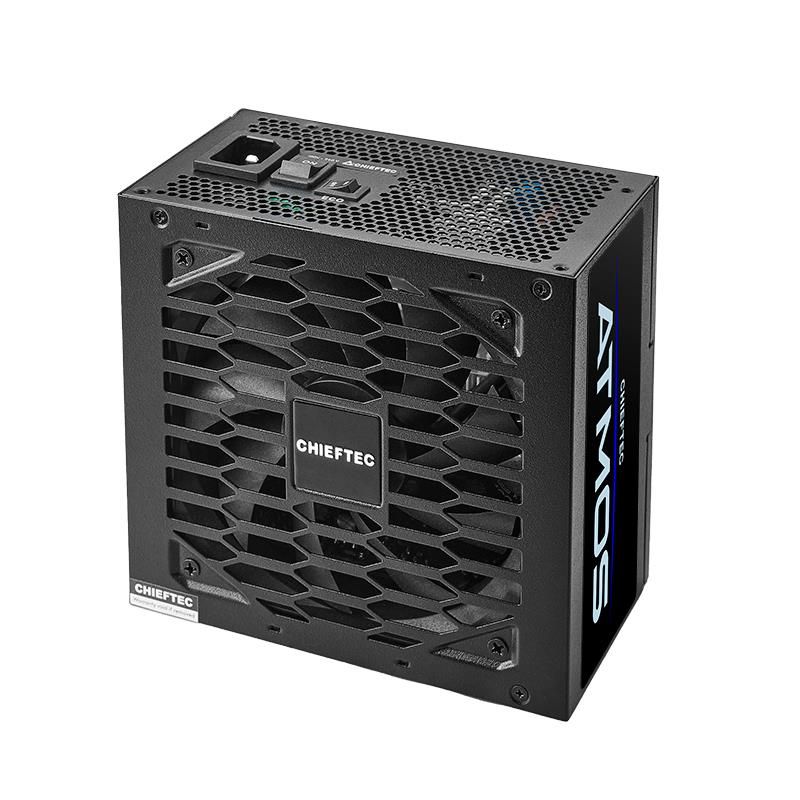

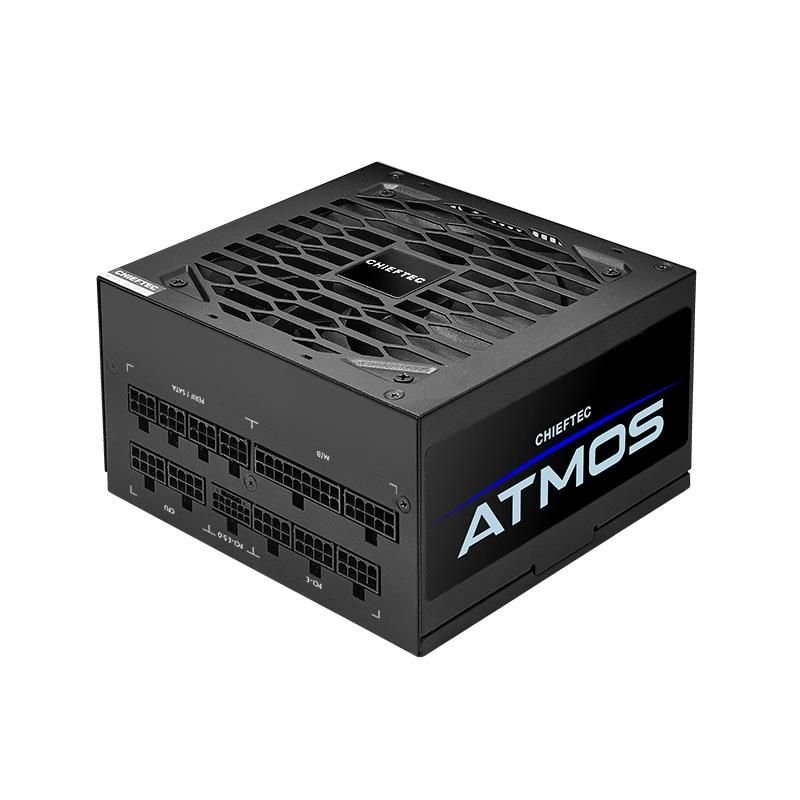

CPX-750FC
8,370ден.
- Достапност:
- Бренд: CHIEFTEC
- Шифра: 404114
- Гарантен рок: 24 месеци
- Достава: 13-16 дена
1
| Specifications | |
| Unit Depth | 30 |
| Unit Height | 13 |
| Unit Width | 22 |
| Specs | |
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| ATX power connector (20+4 pin) | Yes |
| ATX version | 3.0 |
| Cabling type | Fully-Modular |
| Category Code | PSU |
| CPU power cable length | 600 |
| Depth | 140 |
| EPS power connector (4+4 pin) | Yes |
| Fan diameter | 120 |
| Height | 86 |
| Input current | 9 - 4.5 |
| Max output current (+12V1) | 62.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Maximum input current (@110V) | 9 |
| Maximum input current (@220V) | 4.5 |
| Model name | CPX-750FC |
| Motherboard power cable length | 600 |
| Motherboard power connector | 20+4 pin ATX |
| Name | CASE PSU ATX 750W/CPX-750FC CHIEFTEC |
| Number of SATA power connectors | 9 |
| On/off switch | Yes |
| PCI Express power connectors (16-pin) | 1 |
| Peripheral (Molex) power cable length | 550/650/750/850 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over voltage/Short circuit/Surge and inrush |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Product Net Weight | 1.49 |
| Product type | Office |
| Purpose | PC/Server |
| SATA power cable length | 550/650/750 |
| Shipping Box Depth | 30 |
| Shipping Box Height | 13 |
| Shipping Box Weight | 2.5 |
| Shipping Box Width | 22 |
| Summary | Chieftec Atmos . Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,650,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Supported motherboard form factors | ATX |
| Total power | 750 |
| Unit Calculated Volume | 0.00858 |
| Unit Calculated Weight | 2.5 |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/562/ATMOS_Series/563/CPX-750FC |
| Weight | 1490 |
| Width | 150 |
