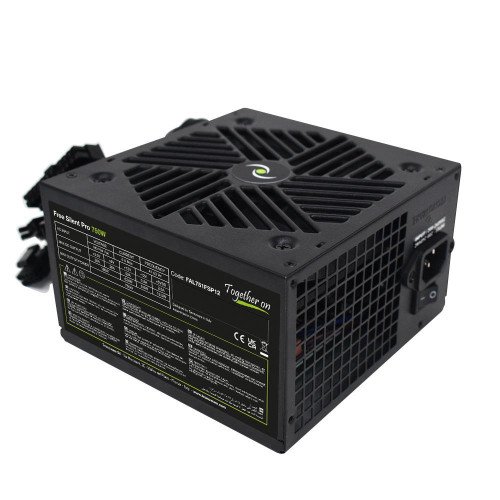

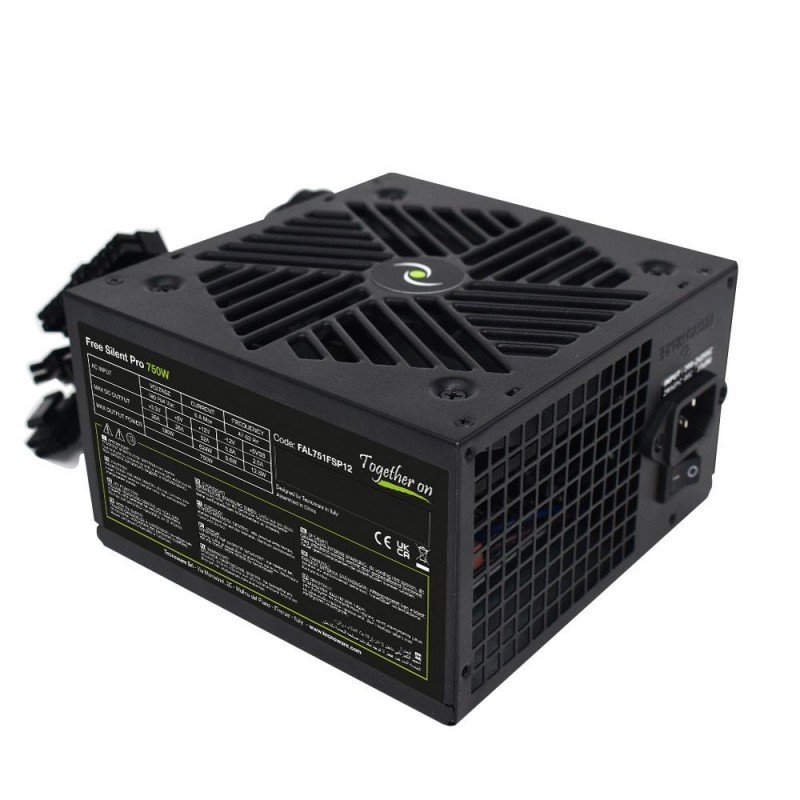

CASE PSU ATX 750W/FAL751FSP12 TECNOWARE

Technical Specifications

• Summary: Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
• Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/850
• Name: CASE PSU ATX 750W/FAL751FSP12 TECNOWARE
• Category Code: PSU
• Total power: 750
• AC input voltage: 180 - 264
• AC input frequency: 47 - 63
• Power Factor Correction (PFC) type: Active
• Max output current (+3.3V): 26
• Max output current (+12V): 52
• Max output current (+5V): 26
• Max output current (-12V): 0.8
• Max output current (+5Vsb): 2.5
• Efficiency: 85
• Power protection features: Overload/Short circuit/Surge protection
• Motherboard power connector: 24-pin ATX
• Number of SATA power connectors: 4
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Product colour: Black
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• On/off switch: Yes
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -15 - 40
• Width: 150
• Depth: 140
• Height: 86
• Weight: 1000
• Units per Pallet: 0
• Units per Shipping Box: 8
• Unit Calculated Volume: 0.00405
• Unit Calculated Weight: 1.34
