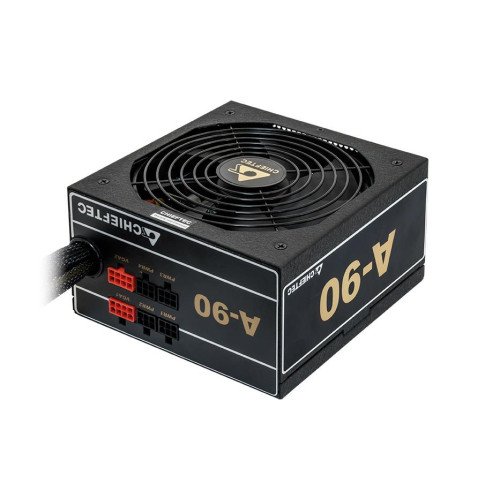

CASE PSU ATX 750W/GDP-750C CHIEFTEC

Technical Specifications

• Summary: Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm
• Vendor Homepage: https://www.chieftec.eu/en/psus/a-90-serie/gdp-750c.html
• Name: CASE PSU ATX 750W/GDP-750C CHIEFTEC
• Category Code: PSU
• Total power: 750
• AC input voltage: 200 - 240
• AC input frequency: 47 - 63
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 120
• Combined power (+12V): 744
• Combined power (+5V): 120
• Combined power (+5Vsb): 2.5
• Max output current (+3.3V): 22
• Max output current (+12V1): 62
• Max output current (+5V): 22
• Max output current (-12V): 0.3
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 8
• Peripheral (Molex) power connectors (4-pin): 3
• EPS power connector (8-pin): Yes
• PCI Express power connectors (6+2 pin): 4
• Floppy drive power connector: 1
• Cabling type: Semi-Modular
• Purpose: PC
• Power supply unit (PSU) form factor: PS/2
• ATX version: 2.3
• Product colour: Black
• Fan diameter: 140
• Number of fans: 1
• Fan location: Top
• Width: 160
• Depth: 150
• Height: 87
• Harmonized System (HS) code: 84733020
• Frequency tolerance: 90
• Model name: GDP-750C
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00605
• Unit Calculated Weight: 2
