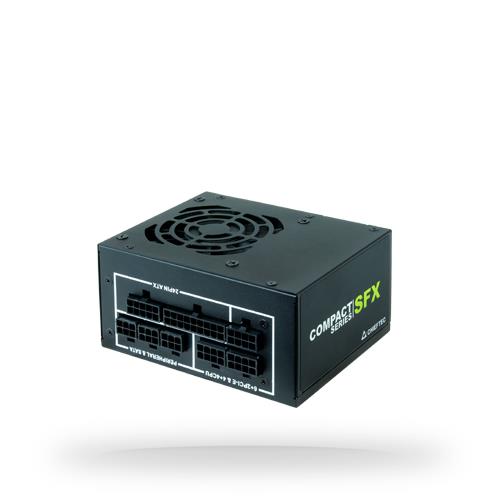

CASE PSU SFX 550W/CSN-550C CHIEFTEC

CASE PSU SFX 550W/CSN-550C CHIEFTEC
CASE PSU SFX 550W/CSN-550C CHIEFTEC
  • Total power: 550
  • 80 PLUS certification: 80 PLUS Gold
  • Power supply unit (PSU) form factor: PS/2
  • Fan diameter: 80
  • Number of fans: 1
5,815ден.
  • Достапност: Има залиха
  • Шифра: 404103
  • Гарантен рок: 12 months
  • Рок на испорака: 27.02
Сподели

Technical Specifications

  • Summary: Chieftec CSN-550C. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 8 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 100 mm, Height: 64 mm
  • Vendor Homepage: www.chieftec.eu/products-detail/183/COMPACT_SERIES/255/CSN-550C
  • Name: CASE PSU SFX 550W/CSN-550C CHIEFTEC
  • Category Code: PSU
  • Total power: 550
  • AC input voltage: 100 - 240
  • AC input frequency: 47 - 63
  • Input current: 6
  • Power factor: 0.9
  • Power Factor Correction (PFC) type: Active
  • Combined power (+3.3V): 90
  • Combined power (+5V): 90
  • Max output current (+3.3V): 18
  • Max output current (+12V1): 45.8
  • Max output current (+5V): 15
  • Max output current (-12V): 0.3
  • Max output current (+5Vsb): 3
  • Efficiency: 90
  • Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
  • Motherboard power connector: 20+4 pin ATX
  • Number of SATA power connectors: 4
  • Peripheral (Molex) power connectors (4-pin): 3
  • PCI Express power connectors (6+2 pin): 2
  • CPU power connector (4+4 pin): Yes
  • ATX power connector (20+4 pin): Yes
  • Floppy drive power connector: 1
  • Cabling type: Fully-Modular
  • 80 PLUS certification: 80 PLUS Gold
  • Purpose: PC
  • Power supply unit (PSU) form factor: PS/2
  • ATX version: 2.3
  • Product colour: Black
  • Fan diameter: 80
  • Number of fans: 1
  • Width: 125
  • Depth: 100
  • Height: 64
  • Harmonized System (HS) code: 84733020
  • Model name: CSN-550C
  • Units per Shipping Box: 1
  • Unit Calculated Volume: 0.0048
  • Unit Calculated Weight: 2
